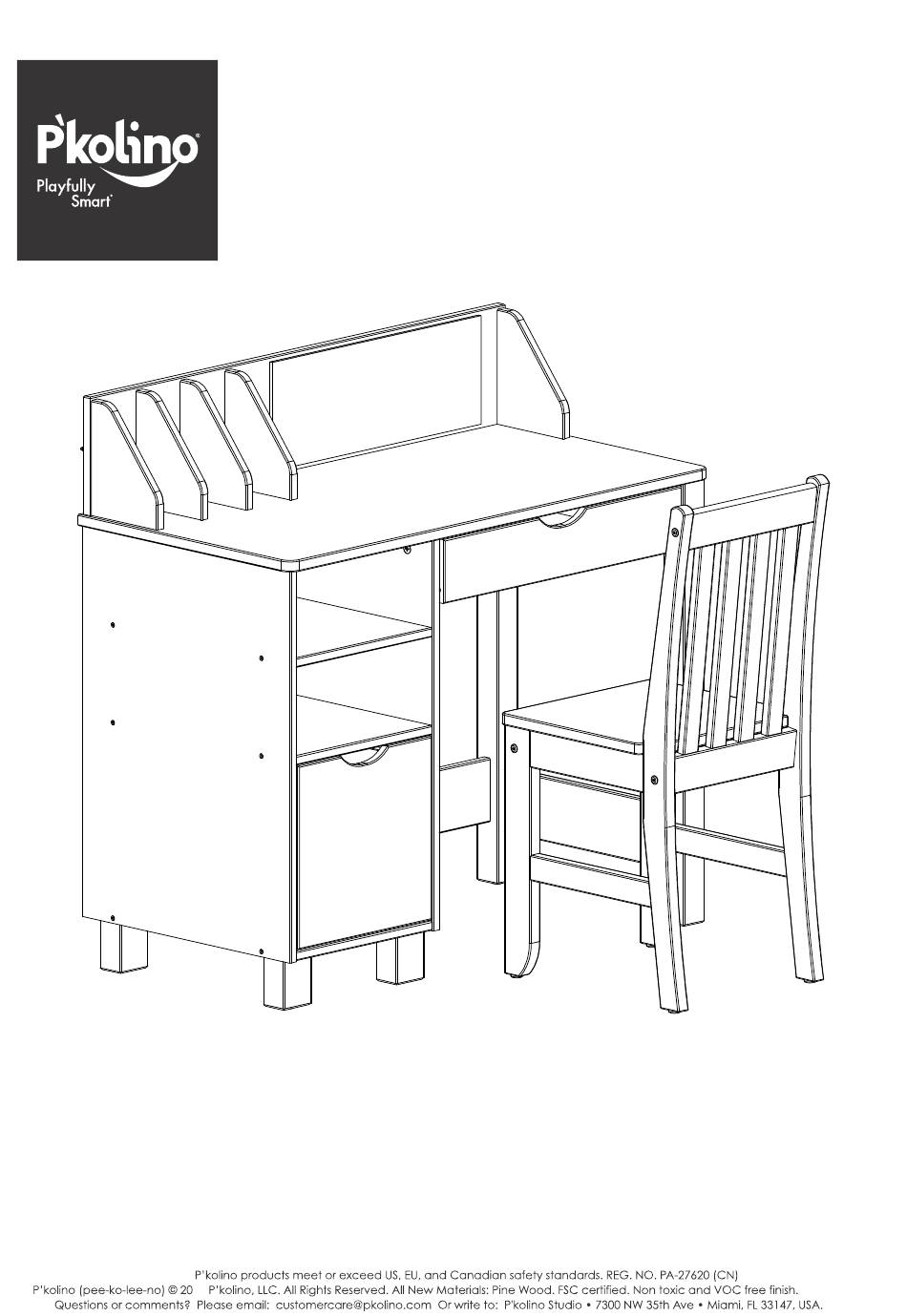

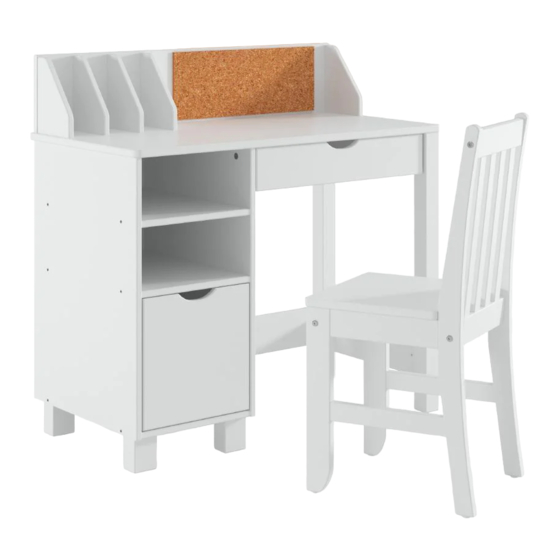

- Page 1 Kids Desk and Chair READ ALL INSTRUCTIONS BEFORE ASSEMBLING DESK. KEEP INSTRUCTIONS FOR FUTURE USE. THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO ADULTS. Made in Brazil. July / 2020...
- Page 3 Desk Parts: Manufacturer Label Blue Black Blue Tools requiRed Hammer Phillips screwdriver You will need a Phillips head screwdriver and a hammer Made in Brazil. July / 2020...
- Page 4 Hardware: 58 Wooden Dowels 8 x 30 (A) 04 Bolts 7 x 70 (B) 06 Bolts 7 x 50 (C) 22 Bolts 5 x 50 (D) 02 Screws 4 x 20 (E) 16 Screws 6 x 10 (F) 20 Cam Bolts (H) 20 Cam Locks (I) 16 Nail 10 x 10 (J) 02 Metal Glides 350mm (K)
- Page 5 Step 1 Side Parts and Crossbars 1) Insert wooden dowels (A) into the holes, as shown in the diagram. (x2) Blue (x2) 8 x 30 Wood dowel 8 x 30 Wooden Dowel Step 2 Crossbars and Shelves 1) Attach crossbars 3 and shelves 23 on sides 1 and 2 with bolts (D) using the allen wrench (O), as shown in the diagram.
- Page 6 Step 3 Support feet 1) Insert wooden dowels (A) into the holes, as shown in the diagram. 2) Fix the plastic foot (P) on the support feet 4 with hammer. (x4) 8 x 30 Wood dowel 8 x 30 Wooden Dowel Plastic Foot Step 4 Support feet...
- Page 7 SET OF METAL GLIDES FOR THE DRAWERS - The glides (K) are used on panels side and has a left and right pieces. - The glides (L) are used on drawers side, also has a left and right pieces. (x2) (x2) (x2) (x2)
- Page 8 Step 6 Metal Glides The wheel to 1) Attach the metal glides (K) on side 2 with screws (F). the front Blue Pre-drilled holes Ø6,0 x 10 Screw 6 x 10 Screw Metal Glides 350mm Step 7 Crossbars 1) Insert wooden dowels (A) into the holes, as shown in the diagram. PLEASE ASSEMBLE ON A FLAT SURFACE.
- Page 9 Step 8 Back Crossbars 1) Attach back crossbars 5 on the side panel 2 with bolts (C), usisng the allen wrench (N), as shown in the diagram. Blue Allen wrench 7,0 x 50 Bolt 7 x 50 Bolt Ø13 Step 9 Post and Crossbars 1) Insert wooden dowels (A) and cam bolts (H) into the holes, as shown in the diagram.
- Page 10 Step 10 Crossbars and Posts 1) Attach crossbars 8 and 9 on post 6 with bolts (B), using the allen wrench (N) and then on post 7 with cam locks (I), as shown in the diagram. Black 7,0 x 70 Bolt 7 x 70 Bolt Ø13 PLEASE...
-
Page 11: Notice Board
Step 12 Crossbars 1) Attach crossbars 5 on post 6 with bolts (B), using the allen wrench (N). Blue Black Blue 7,0 x 70 Bolt Allen wrench 7 x 70 Bolt Ø13 Step 13 Organizer 1) Insert wooden dowels (A) into the holes, as shown in the diagram. 2) Attach divisions 12 on back panel 11 with bolts (D) using the allen wrench (O). - Page 12 Step 14 1) Insert cam bolts (H) into the holes, as shown in the diagram. INSIDE PLEASE ASSEMBLE ON A FLAT SURFACE. USE A CARPET OR THE PRODUCT CARTON TO LINE THE FLOOR. Cam Bolt Parafuso Minifix Step 15 Desk Top 1)Attach the organizer on top 13 with bolts (D) using the allen wrench (O).
- Page 13 Step 16 1) Attach the top 13 to the desk structure, tting the wooden dowels (A) and cam bolts (H) into the pre-drilled holes. Pre-drilled holes Be careful to not damage! Step 17 1) Fix the top 13 to the desk structure, using cam locks (I), locking with Phillips screwdriver, according the detail 1. Detail 1 Tambor Minifix Cam Lock...
- Page 14 Step 18 Back Panel Manufacturer Label 1) Attach the back panel 14 on the sides of desk, using nails (J) and a hammer. 10 x 10 Nail Step 19 High Drawer Components 1) Insert wooden dowels (A) and cam bolts (H) into the holes, as shown in the diagram. (x2) 8 x 30 Wood dowel 8 x 30 Wooden Dowel...
- Page 15 Step 20 High Drawer 1) Attach drawer sides 15 on the drawer front 16 with cam locks (I). 2) Insert drawer bottom 17, as shown in the diagram. 3) Attach back side 18 on the drawer sides 15, using cam locks (I) Groove inside Tambor Minifix...
- Page 16 Step 22 Low Drawer Components 1) Insert wooden dowels (A) and cam bolts (H) into the holes, as shown in the diagram. (x2) 8 x 30 Wood dowel 8 x 30 Wooden Dowel Cam Bolt Parafuso Minifix Step 23 Low Drawer 1) Attach drawer sides 19 on the drawer front 20 with cam locks (I).
- Page 17 Step 24 Low Drawer 1) Attach metal glides (L) on drawer sides 19 using screws (F) . The wheel to the back S I D Ø6,0 x 10 Screw 6 x 10 Screw Metal Glides 350mm Pre-drilled holes Step 25 Desk 1) Insert the drawers, as shown in the diagram.
- Page 18 Step 26 Desk and Chair 1) Insert the Chair, as shown in the diagram.
- Page 19 ABOUT WOOD AND FINISH: This product has been carefully crafted of MDF, solid pine wood and/or pine veneers. These materials derive from plantations, a renewable and well managed forest, therefore, not endangering the environment. The highest quality standards have been implemented to assure a sturdy and reliable product. Due to the natural variances in the graining of wood, you may notice subtle differences in the shading and tone of the color stain, warp, holes, wood knots and also small cracks.
