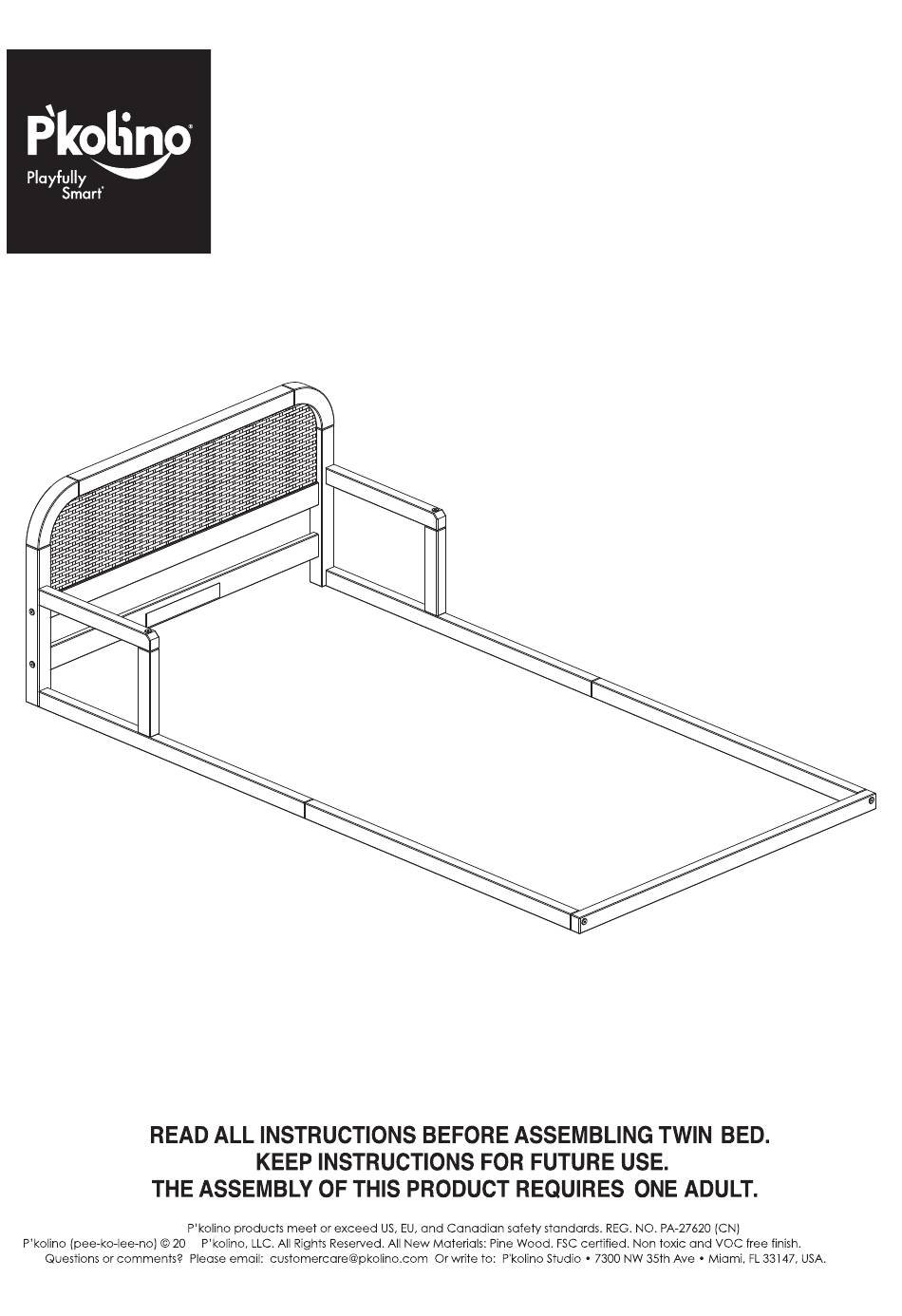

- Page 1 Curva Rattan Floor Bed - Twin Made in Brazil. May / 2024...
- Page 2 Made in Brazil. May / 2024...
- Page 3 Curva Rattan Floor Bed - Twin Parts: MANUFACTURER LABEL DO NOT REMOVE! HOLES HOLES PLEASE ASSEMBLE THE BED ON THE GROUND, BUT FIRST PLACE SOME PROTECTIVE MATERIAL, SUCH AS A CARDBOARD BOX OR A RUG, ON THE FLOOR TO PREVENT ANY DAMAGE TO THE BED. Tools required Hammer Phillips screwdriver...
- Page 4 Identify the size and type of hardware using the illustration below: 02 - Wooden dowels 3 1/8" (10 x 80mm) 12 - Bolts 3 1/8" (7 x 80mm) 02 - Bolts 2" (7 x 50mm) 08 - Screws 1" (4 x 25mm) 08 - Screws 01 -...
- Page 5 Step 1 Headboard Attach parts to part with 2 Bolts , using Allen wrench MANUFACTURER LABEL ON THE OTHER FACE 3 1/8" Bolt 3 1/8" Bolt Allen Allen wrench wrench PLEASE ASSEMBLE THE BED ON THE GROUND, BUT FIRST PLACE SOME PROTECTIVE MATERIAL, SUCH AS A CARDBOARD BOX OR A RUG, ON THE Step 2 FLOOR TO PREVENT ANY DAMAGE TO THE HEADBOARD.
- Page 6 Step 3 Headboard Insert panel into the grooves on parts and , as shown in the diagram. RATTAN ON THIS FACE PLEASE BE CAREFUL WHEN INSERTING THE RATTAN PANEL INTO THE CROSSBAR CHANNEL TO PREVENT THE RATTAN FIBERS FROM DETACHING Step 4 Headboard Attach part...
- Page 7 Step 5 Headboard Attach Metal Plate (H) to Headboard with 4 screws (G) using a Phillips Screwdriver. ATTENTION! PRE-DRILLED HOLES Phillips screwdriver 1 3/16" Screw Metal Plate Step 6 Side rails Insert 1 wooden dowel (A) into the hole in part , as shown below. Gently use hammer if needed. Repeat for remaining part . (2 pieces) Hammer 3 1/8"...
- Page 8 Step 7 Side rails Attach parts on to part as shown below. PLEASE ASSEMBLE THE BED ON THE GROUND, BUT FIRST PLACE SOME PROTECTIVE MATERIAL, SUCH AS A CARDBOARD BOX OR A RUG, ON THE Step 8 FLOOR TO PREVENT ANY DAMAGE TO THE BED. Side rails Insert the Metal Union into the space using the pre-drilled holes as a guide and attach with 4 screws...
- Page 9 Step 9 Guardrail Attach part to part with 1 bolt , using 1 Allen wrench . Repeat this step 2 times. (x2) 3 1/8" Bolt 3 1/8" Bolt Allen Allen wrench wrench PLEASE ASSEMBLE THE BED ON THE GROUND, BUT FIRST PLACE SOME PROTECTIVE MATERIAL, SUCH AS A CARDBOARD BOX OR A RUG, ON THE FLOOR TO PREVENT ANY DAMAGE TO THE BED.
- Page 10 Step 11 Side rails Attach Side rails to the headboard with 2 bolts using Allen wrench MANUFACTURER LABEL MUST BE INSIDE THE BED 3 1/8" Bolt Allen wrench Step 12 Side rails Attach the other side rail to the headboard with 2 bolts , using Allen wrench 3 1/8"...
- Page 11 Step 13 Footboard Attach the footboard to the siderails with 2 bolts , using Allen wrench 3 1/8" Bolt Allen wrench...
