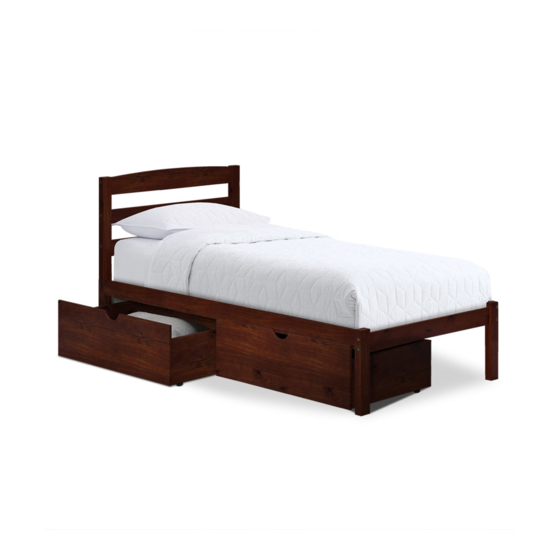

- Page 1 Twin Bed with Storage Drawers READ ALL INSTRUCTIONS BEFORE ASSEMBLING TWIN BED. KEEP INSTRUCTIONS FOR FUTURE USE. THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO ADULTS. Made in Brazil. July / 2020...
- Page 2 Twin...
- Page 3 Twin Bed Parts: Manufacturer Label (x2) Tools required Hammer Philips screwdriver You will need a Phillips head screwdriver and a hammer Made in Brazil. July / 2020...
- Page 4 Hardware: 16 Wooden dowel 10x40 (A) 24 Wooden dowel 8x30 (B) 06 Bolts 7 x 100 (C) 04 Bolts 1/4 x 110 (D) 08 Bolts 1/4 x 90 (E) 12 Elliptical nuts (F) 36 Screws 4 x 30 (G) 64 Screws 3.5 x 12 (H) 2 Wooden spacers 88mm (I) 1 Allen wrench (J) 8 Casters (K)
- Page 5 Step 1 Headboard panels 1) Insert wooden dowels (A) into the holes, as shown in the diagram. (x2) Hammer 10 x 40 Wood dowel 10x40 Wooden Dowel Step 2 Headboard 1)Attach parts 5, 6 and 7 on the post 1 and 2 with 2 bolts (D), 2 elliptical nuts (F) and 6 bolts (C), using the allen wrench (J).
- Page 6 Step 3 Footboard panel 1) Insert wooden dowels (A) into the holes, as shown in the diagram. Hammer 10 x 40 Wood dowel 10x40 Wooden Dowel Step 4 Footboard 1)Attach footboard panel 8 on the posts 3 and 4 with 2 bolts (D) and 2 elliptical nuts (F) using the allen wrench (J).
- Page 7 Step 5 Rails 1) Insert wooden dowels (A) into the holes, as shown in the diagram. Hammer 10 x 40 Wood dowel 10x40 Wooden Dowel Step 6 Rails and headboard 1)Attach rails 9 on the headboard, with 4 bolts (E), and 4 elliptical nuts (F) using the allen wrench (J).
- Page 8 Step 7 Footboard 1)Attach footboard on the rails 9 with 4 bolts (E) and 4 elliptical nuts (F) using the allen wrench (J). 1/4 x 90 Bolt ¹⁄ " x 90 Bolt Ø17 Allen wrench Elliptical Nut Step 8 Slats 1)Attach slats 10 on the rails with 24 screws (G);...
- Page 9 (x2) Step 9 Drawer parts 1) Insert wooden dowels (B) into the holes, as shown in the diagram. 2) Attach plate (L) with screws (H) Pre holes Hammer Philips screwdriver 8 x 30 Wood dowel 3,5 x 12 Screw Plate 3.5 x 12 Screw 8 x 30 Wooden Dowel (x2)
- Page 10 (x2) Step 11 Drawer bottom 1) Insert drawer bottom 14, as shown in the diagram. Step 12 (x2) Right side of drawer 1)Attach the right side 15 on the back side 12 and to the support 13 with screws (G) Philips screwdriver 4,0 x 30 Screw 4 x 30 Screw...
- Page 11 (x2) Step 13 Drawer bottom 1) Insert drawer bottom 14, as shown in the diagram. Step 14 (x2) Drawer front 1)Attach the drawer front 16 to the parts 11 and 15 with the screws (H) Philips screwdriver 3,5 x 12 Screw 3.5 x 12 Screw...
- Page 12 (x2) Step 15 Step 1 Casters 1)Turn the drawer down and attach the casters (K) to the sides with the screws (H). Pre holes Step 2 Philips screwdriver 3,5 x 12 Screw Caster 3.5 x 12 Screw Step 16...
- Page 13 ABOUT WOOD AND FINISH: This product has been carefully crafted of MDF, solid pine wood and/or pine veneers. These materials derive from plantations, a renewable and well managed forest, therefore, not endangering the environment. The highest quality standards have been implemented to assure a sturdy and reliable product. Due to the natural variances in the graining of wood, you may notice subtle differences in the shading and tone of the color stain, warp, holes, wood knots and also small cracks.
