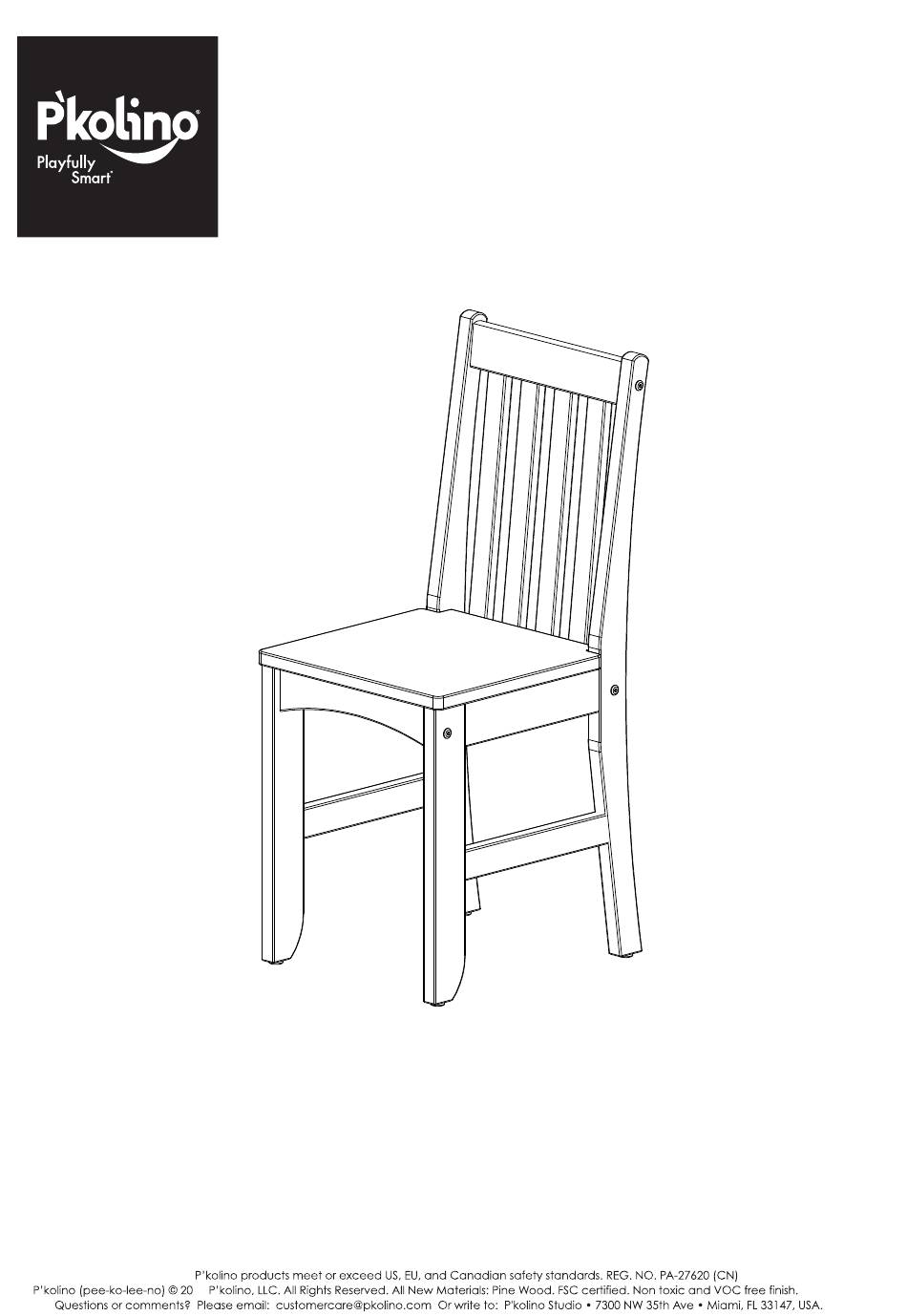

- Page 1 Kid`s Chair READ ALL INSTRUCTIONS BEFORE ASSEMBLING CHAIR. KEEP INSTRUCTIONS FOR FUTURE USE. THE ASSEMBLY OF THIS PRODUCT REQUIRES AN ADULT. Made in Brazil. July / 2020...
-
Page 2: This Box Contains
This Box Contains: Chair Parts: Tools required Hammer Philips screw driver You will need a Phillips head screw driver and a hammer Made in Brazil. July / 2020... - Page 3 Hardware: 13 Woden Dowels 8 x 30 (A) 4 Bolts 1/4 x 60 (B) 4 Elliptical Nuts (C) 2 Bolts 7,0 x 60 (D) 6 Screws 4,0 x 35 (E) 1 Allen Wrench (F) FOR MISSING PARTS OR HARDWARE: DO NOT CONTACT THE STORE WHERE YOU MADE YOUR PURCHASE. DO NOT CONTACT THE STORE WHERE YOU MADE YOUR PURCHASE.
-
Page 4: Right Side
Step 1 Supports 1) Insert wooden dowels (A) into the holes, as shown in the diagram. Hammer 8 x 30 Wood dowel 8 x 30 Wood Dowel Step 2 Attention. support with wooden dowel Right Side to the front side! 1)Attach parts 3 and 4 on the right side 1 with 2 bolts (B), 2 elliptical nuts (C) and 1 bolts (D) using the allen wrench (F). -
Page 5: Left Side

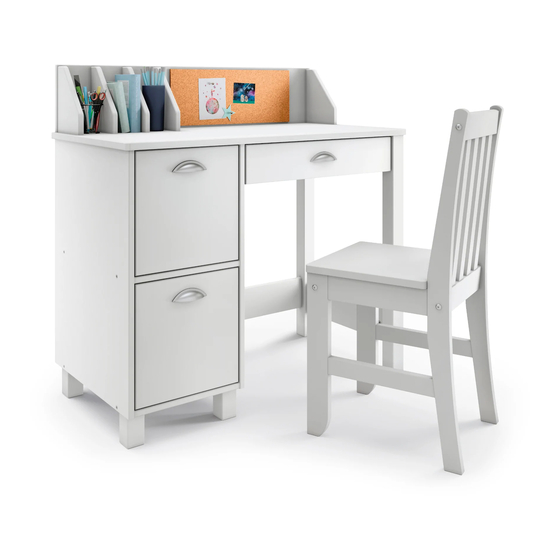

Step 3 Left Side 1)Attach left side 2 on the parts 3 and 4 with 2 bolts (B), 2 elliptical nuts (C) and 1 bolts (D) using the allen wrench (F). B / D 1/4 x 70 Bolt ¹⁄ " x 60 Bolt Ø17 7,0 x 60 Bolt 1/4"... - Page 6 Kids Desk and Chair READ ALL INSTRUCTIONS BEFORE ASSEMBLING DESK. KEEP INSTRUCTIONS FOR FUTURE USE. THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO ADULTS. Made in Brazil. July / 2020...
- Page 7 Desk...
- Page 8 Desk Parts: Manufacturer Label (x2) Tools required Hammer Phillips screwdriver You will need a Phillips head screwdriver and a hammer Made in Brazil. July / 2020...
- Page 9 Hardware: 71 Wooden Dowels 8 x 30 (A) 04 Bolts 7 x 70 (B) 06 Bolts 7 x 50 (C) 18 Bolts 5 x 50 (D) 02 Screws 4 x 25 (E) 24 Screws 6 x 10 (F) 06 Screws M4 x 18 (G) 28 Cam Bolts (H) 28 Cam Locks (I) 16 Nail 10 x 10 (J)
- Page 10 Step 1 Side Parts and Crossbars 1) Insert wooden dowels (A) into the holes, as shown in the diagram. (x4) 8 x 30 Wood dowel 8 x 30 Wooden Dowel Step 2 Crossbars 1) Attach crossbars 3 on sides 1 and 2 with bolts (D) using the allen wrench (O), as shown in the diagram.
-
Page 11: Support Feet
Step 3 Support feet 1) Insert wooden dowels (A) into the holes, as shown in the diagram. 2) Fix the plastic foot (P) on the support feet 4 with hammer. (x4) 8 x 30 Wood dowel 8 x 30 Wooden Dowel Plastic Foot Step 4 Support feet... - Page 12 SET OF METAL GLIDES FOR THE DRAWERS - The glides (K) are used on panels side and has a left and right pieces. - The glides (L) are used on drawers side, also has a left and right pieces. (x3) (x3) (x3) (x3)
- Page 13 Step 6 Metal Glides 1) Attach the metal glides (K) on side 2 with screws (F). Wheel in front Pre-drilled holes Ø6,0 x 10 Screw 6 x 10 Screw Metal Glides 350mm Step 7 Crossbars 1) Insert wooden dowels (A) into the holes, as shown in the diagram. PLEASE ASSEMBLE ON A FLAT SURFACE.
- Page 14 Step 8 Back Crossbars 1) Attach back crossbars 5 on the side panel 2 with bolts (C), usisng the allen wrench (N), as shown in the diagram. Allen wrench 7,0 x 50 Bolt 7 x 50 Bolt Ø13 Step 9 Post and Crossbars 1) Insert wooden dowels (A) and cam bolts (H) into the holes, as shown in the diagram.
- Page 15 Step 10 Crossbars and Posts 1) Attach crossbars 8 and 9 on post 6 with bolts (B), using the allen wrench and then on post 7 with cam locks (I), as shown in the diagram. 7,0 x 70 Bolt 7 x 70 Bolt Ø13 PLEASE Tambor Minifix...
-
Page 16: Notice Board
Step 12 Crossbars 1) Attach crossbars 5 on post 6 with bolts (B), using the allen wrench (N). 7,0 x 70 Bolt Allen wrench 7 x 70 Bolt Ø13 Step 13 Organizer 1) Insert wooden dowels (A) into the holes, as shown in the diagram. 2) Attach divisions 12 on back panel 11 with bolts (D) using the allen wrench (O). - Page 17 Step 14 1) Insert cam bolts (H) into the holes, as shown in the diagram. INSIDE PLEASE ASSEMBLE ON A FLAT SURFACE. USE A CARPET OR THE PRODUCT CARTON TO LINE THE FLOOR. Cam Bolt Parafuso Minifix Step 15 Desk Top 1)Attach the organizer on top 13 with bolts (D) using the allen wrench (O).
-
Page 18: Back Panel
Step 16 1) Attach top 13 on the desk structure, using cam locks (I), locking according the detail 1. Detail 1 Tambor Minifix Cam Lock Step 17 Manufacturer Label Back Panel 1) Attach the back panel 14 on the sides of desk, using nails (J) and a hammer. 10 x 10 Nail... - Page 19 Step 18 High Drawers Components 1) Insert wooden dowels (A) and cam bolts (H) into the holes, as shown in the diagram. (x2) 8 x 30 Wood dowel (x2) (x4) 8 x 30 Wooden Dowel Cam Bolt Parafuso Minifix Step 19 High Drawers (x2) 1) Attach drawer sides 15 on the drawer front 16 with cam locks (I).
- Page 20 Step 20 Wheel in front High Drawers 1) Fix the knob (M) on drawer front 16 with screws (G) . 2) Attach metal glides (L) on drawer sides 15 using screws (F) . (x2) Pre-drilled holes Ø6,0 x 10 Screw PZ 48 M4,0 x ¹⁸Screw M4 x 18 Screw...
- Page 21 Step 22 Low Drawer 1) Attach drawer sides 19 on the drawer front 20 with cam locks (I). 2) Insert drawer bottom 21, as shown in the diagram. 3) Attach back side 22 on the drawer sides 19, using cam locks (I) Tambor Minifix Cam Lock Step 23...
- Page 22 Step 24 Desk 1) Insert the drawers, as shown in the diagram. Step 25 Desk and Chair 1) Insert the Chair, as shown in the diagram.
- Page 23 ABOUT WOOD AND FINISH: This product has been carefully crafted of MDF, solid pine wood and/or pine veneers. These materials derive from plantations, a renewable and well managed forest, therefore, not endangering the environment. The highest quality standards have been implemented to assure a sturdy and reliable product. Due to the natural variances in the graining of wood, you may notice subtle differences in the shading and tone of the color stain, warp, holes, wood knots and also small cracks.
