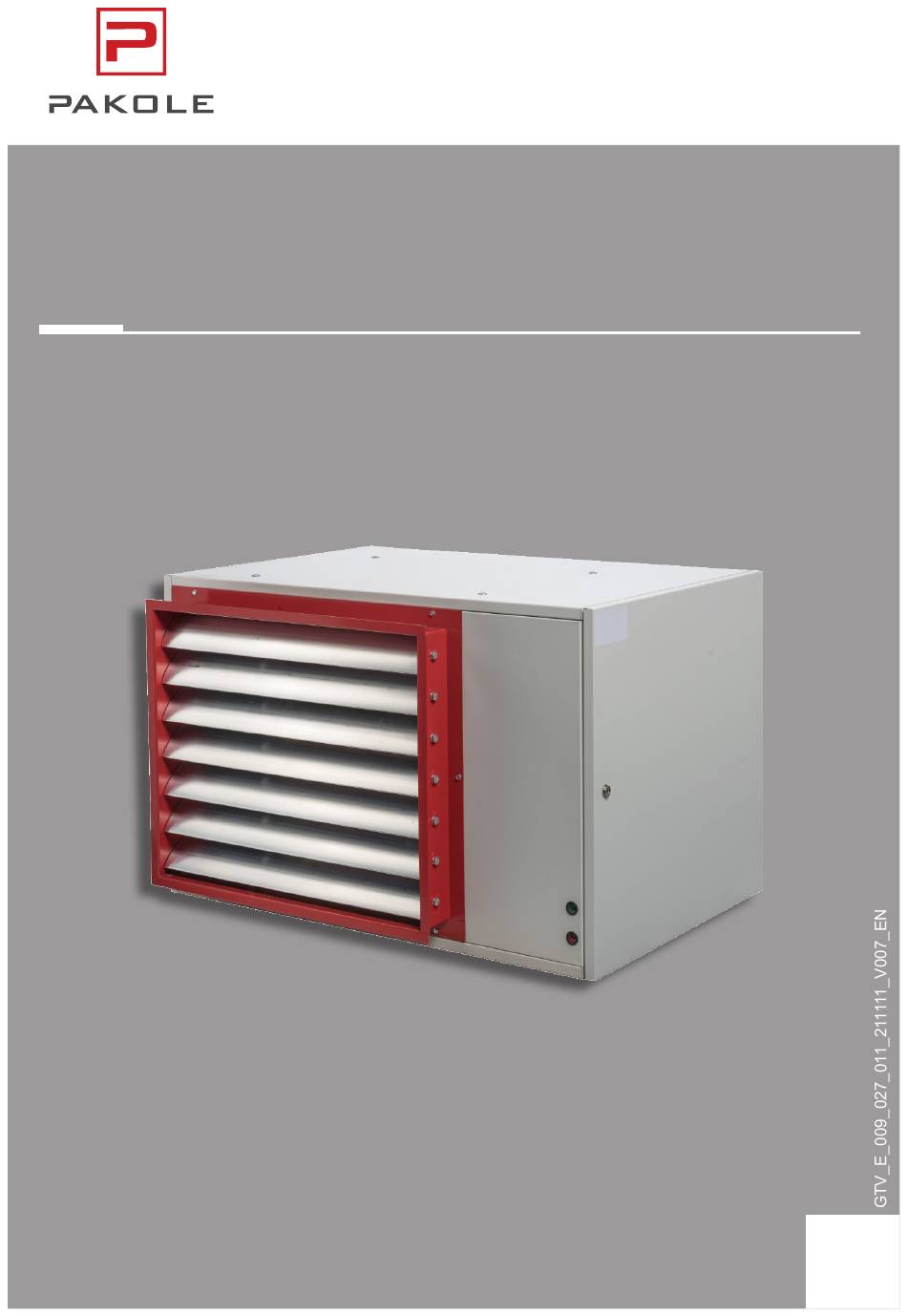

- Page 1 User’s Manual AIR HEATERS BURNING GASEOUS FUELS Appliance types: GTV-E-20A, C, CL GTV-E-27A, C, CL GTV-E-33A, C, CL GTV-E-40A, C, CL GTV-E-48A, C, CL GTV-E-58A, C, CL www.pakole.com...
-
Page 2: Table Of Contents
GTV-E AIR HEATERS BURNING GASEOUS FUELS Contents Contents Safety information ....................3 General Instruction .................... 4 Data board ������������������������������������������������������������������������������������������������������������������������������������ 4 Corrosive materials ����������������������������������������������������������������������������������������������������������������������� 5 Standards and laws ���������������������������������������������������������������������������������������������������������������������� 5 Safety signs ���������������������������������������������������������������������������������������������������������������������������������� 5 Safe usage ������������������������������������������������������������������������������������������������������������������������������������ 5 Transportation, unpacking, handling ............. 6 Operation principle ..................... -
Page 3: Safety Information
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Safety information Read and understand this manual thoroughly before installing starting or servicing this equipment. The improper installation or using can cause serious damages! Keep this manual in a safe place in order to obtain information in case of incidental problems! GENERAL SAFETY NOTICES Disregard of instructions and notices of this Instruction for installation and servicing can cause... -
Page 4: General Instruction
The appliance is equipped with data board, which is placed on inside of device’s door� On this data board there are information concern- ing the type of device, gas type, electrical connection and flue types� Manufacturer Type GTV-E-27CL-MOD PAKOLE Trade Kft. 8000 Székesfehérvár, 25,8 kW Nominal input: Börgöndi út 8-10. -
Page 5: Corrosive Materials
Qualified service engineers are those having specific technical experience and/or valid license in the field of heating and cooling installa- tion for home and industry� In any case, call the Manufacturer office or the closest dealer (www�pakole�com) and ask for further informa- tions�... -
Page 6: Transportation, Unpacking, Handling
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS • Never use the unit to support other equipment� ATTENTION • Never leave tools, spare parts, etc� inside the unit� • Make sure that all inspection panels are closed properly� •... -
Page 7: Reduced Nox Emissions
GTV-E type of GTV-E air heaters� The Declaration of Conformity can be downloaded from our website (www�pakole�com) and found on the last pages of this Instructions for installation and servicing� The technical solutions for the development of GTV-E with a reduced NOx emission air heater appliance:... -
Page 8: Installation
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Centrifugal fan-type execution (GTV-E-…CL) Features: • suction in of heater air can be from inside or outside respectively in case of installed „winter-summer” mode relay the suction in of mixed inside-outside air is executed through air duct • blowing in of warm air is executed through the attached air duct system to the demanded places 7/a. -
Page 9: Optional Accessories
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Optional accessories Temperature controllers Recommended temperature regulators for appliances: Please find the description of thermostats in supplied with these 14. picture: AHP-Mod type of termostat Type of electric socket Legend Legend Jelmagyarázat Phase... -
Page 10: Regulation Possibilities
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Regulation possibilities Applicable regulatory options according to regulation ECO DESIGN EU2016/426 modulation: GTV-E-20–58 Air-heater Two-pole isolating switch Fuse L: phase N:nul L1: 50% (control) first stage N1 : L2 :100% second stage termostat + sensor 17. picture: Possible regulation mode controlled by AHP-MOD-type thermostat This type of control is the so-called PILOT control, at which the communication between the programme clock and warm air blower is solved by just one wire namely by „control cable”�... -
Page 11: Protective Distances
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Protective distances From flammable materials it is obligatory to keep SAFETY OF OPERATION and FIRE PREVENTION distances! Minimal dimensions of protective distances: 18. picture: Protective distances Appliance operation Start, restart The properly installed appliance according to the control sign received from temperature regulator - in the present case heating –... -
Page 12: Control And Regulation Of Appliance
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Control and regulation of appliance AHP-MOD controller has HEATING / 0 / VENTILATION switch, „RESET” button, MODULATION/100% switch and has PROGRAM HOURS� Set day and night temperature by two calibrated rotary knobs� The programmable thermostat turn on device depending on the time of day if required by the room temperature�... -
Page 13: Maintenance
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Maintenance The GTV-E-type warm air blowers apart from the checking of suspension and cleaning of cover, lamella and circulating fan do not need extra maintenances but to be able to preserve the long lifetime of appliance it is recommended to have yearly supervision done with a qualified service or expert�... -
Page 14: Gas Change
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Gas change ATTENTION! In case you would like to operate your appliance by another type of gas (e.g. by Natural gas instead of Propane gas), then contact the local authorized representative or a qualified service department! ATTENTION! In case you would like to operate your appliance by another type of gas(e.g. -
Page 15: Enclosure
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS 10 . Enclosure Enclosure 1 / A . : Appliance performance data Type GTV-E-20A GTV-E-27A GTV-E-33A GTV-E-40A GTV-E-48A GTV-E-58A Input power(NCV) 21/16�6 25�8/20�4 34�1/26�9 39�6/31�3 48�8/38�6 58�6/46�3 Output power (NCV) 19�4/10... -
Page 16: Enclosure 1 / B : Gas Consumption
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Type GTV-E-20C.CL GTV-E-27C.CL GTV-E-33C.CL GTV-E-40C.CL GTV-E-48C.CL GTV-E-58C.CL Input power(NCV) 21/10�6 25�8/14�7 34�1/17�4 39�6/22�1 48�8/27�0 58�6/32�2 Output power (NCV) 19�4/10 23�9/13�8 31�5/16�4 36�7/20�8 45�1/25�5 54�2/30�2 Efficiency [3 point.Mod] 78�1 78�2 78�1 78�3 78�2... -
Page 17: Enclosure 2.: Appliance Dimensions Per Types
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Enclosure 2.: appliance dimensions per types GTV–E A series of axial fan air heater appliances GTV–E– 20A GTV–E– 27A GTV–E– 33A GTV–E– 40A GTV–E– 48A GTV–E– 58A GTV–E C series of centrifugal fan air heater appliances GTV–E 20C GTV–E 27C... - Page 18 GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS GTV–E CL series of centrifugal fan with air duct connection air heater appliances GTV–E 20CL GTV–E 27CL GTV–E 33CL GTV–E 40CL GTV–E 48CL GTV–E 58CL 120 1 120 1 150 1 150 1 200 1...
-
Page 19: Enclosure 3.: Flue Longs, Allowed Pressure Drops
GTV-E Instructions for Installation and Servicing AIR HEATERS BURNING GASEOUS FUELS Enclosure 3.: Flue longs, allowed pressure drops ATTENTION! The joint of pipes must be sealed and fixed! Not allowed longer flue system as the above chart shows! Supplement: The fresh air supply and venting set can contain an elbow 90°� In case of use more elbows, you need to reduce the length of fresh air supply and venting set, as follow: •... - Page 20 Model: GTV-E-20A / C / CL-MOD Modulated Indirect gas-fired forced convection air heater with axial fan Warm air heater: No Warm air heater: No Warm air heater: No Type of fuel: Limit Item Symbol Value Unit Item Symbol Unit Value...
- Page 21 78�1 efficiency Contact details �PAKOLE Trade Kft� H-8000, Székesfehérvár, Börgöndi út 8-10 Model: GTV-E-40A / C / CL-MOD Modulated Indirect gas-fired forced convection air heater with axial fan Warm air heater: No Warm air heater: No Warm air heater: No...
- Page 22 78�2 efficiency Contact details �PAKOLE Trade Kft� H-8000, Székesfehérvár, Börgöndi út 8-10 Model: GTV-E-58A / C / CL-MOD Modulated Indirect gas-fired forced convection air heater with axial fan Warm air heater: No Warm air heater: No Warm air heater: No...
- Page 23 GTV-E Instructions fo AIR HEATERS BURNING GASEOUS FUELS...
- Page 24 PAKOLE TRADE Ltd. H-8000 Székesfehérvár, Börgöndi út 8-10� www�pakole�com mail@pakole�hu Tel�: +36 22 316 484...
