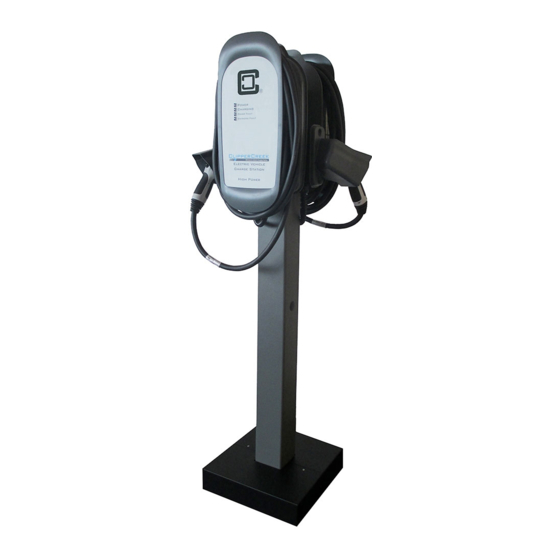

- Page 1 ClipperCreek , Inc. innovative infrastructure for electric and hybrid vehicles PEDESTAL INSTALLATION GUIDE TESLA ® WALL CONNECTOR & CLIPPERCREEK HCS...
- Page 2 This user’s manual includes the latest information at the time of printing. ClipperCreek, Inc. reserves the right to make changes to this product without further notice. Changes or modifications to this product by other than an authorized service facility may void the product warranty.
-
Page 3: Table Of Contents
PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. TABLE OF CONTENTS SAFETY INSTRUCTIONS INSTALLATION CONFIGURATIONS AND TOOLS REQUIRED INSTALLATION REQUIREMENTS PACKING LISTS OPTIONAL ORDERABLE ITEMS INSTALLATION CHAPTERS: MAIN PEDESTAL 12-14 TESLA® WALL CONNECTOR 15-21 CLIPPERCREEK HCS 22-25 CLIPPERCREEK, INC. CUSTOMER SUPPORT CLIPPERCREEK, INC. WARRANTY INFORMATION... -
Page 4: Safety Instructions
Keep these instructions for further reference. The TESLA® Wall Connector and ClipperCreek Electric Vehicle Supply Equipment (EVSE or “charging station”) are designed with the safety concerns of the end user as an utmost priority; however, the following safety precautions must be read and followed: The charging station and electrical wiring should be installed by a qualified electrician in accordance with local electrical codes and •... - Page 5 PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. Single TESLA® Wall Connector, Single ClipperCreek HCS TESLA® Wall Connector and ClipperCreek HCS Combo NOTE TO INSTALLER REGARDING THE COMBO CONFIGURATIONS: OR EASIEST ASSEMBLY INSTALL TESLA® Wall Connector PRIOR to the ClipperCreek HCS Dual TESLA® Wall Connector,...
- Page 6 PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. TESLA® WALL CONNECTOR SINGLE AND DUAL MOUNT CONFIGURATION DIMENSIONS Page 6...
- Page 7 PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. CLIPPERCREEK HCS SINGLE AND DUAL MOUNT CONFIGURATION DIMENSIONS Page 7...
-
Page 8: Installation Requirements
One (1) circuit breaker, appropriately sized with respect to the charging capacity of each EVSE. • Two (2) Live Line conductors with enough length to comfortably pull all the way through and above the top of the pedestal. • One (1) Ground Line conductor with enough length to comfortably pull all the way through and above the top of the pedestal. - Page 9 One (1) circuit breaker appropriately sized for the EVSE charging capacity. • Two (2) Live Line conductors with enough length to comfortably pull all the way through and above the top of the pedestal. • One (1) Ground Line conductor with enough length to comfortably pull all the way through and above the top of the pedestal.
-
Page 10: Packing Lists
PACKING LISTS 0300-00-022 TESLA® PEDESTAL KIT, STANDARD 4 FOOT, SINGLE-MOUNT PART NUMBER DESCRIPTION 1003-0043 Pedestal Metalwork, Cap with Front and Rear Flange NOTE: this item may already be attached to the top of the pedestal. 1003-0023 Pedestal Metalwork, Base Cover 1003-0035... -
Page 11: Optional Orderable Items
PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. OPTIONAL ORDERABLE ITEMS 0300-00-021 TESLA® WALL CONNECTOR DUAL-MOUNT KIT FOR STANDARD 4 FOOT PEDESTAL (OPTIONAL) PART NUMBER DESCRIPTION 1003-0042 Pedestal Metalwork, TESLA® Wall Connector Mounting Plate 4000-0011 Machine Screw, Tapered Flat Head, 1/4-20 Size, 3/4” Length, T27 Torx 4001-0008 Hex Nut, 18-8 Stainless Steel, 5/16”-18 Thread, 1/2”... -
Page 12: Main Pedestal
2. ANCHOR BOLT PLACEMENT A minimum of four (4) anchor bolts must be embedded in the concrete pad for the purposes of securing the pedestal post. The pedestal base is de- signed to permit the anchor bolts to be arranged in many configurations, including the following: Use the Pedestal Base Pattern Template: To better facilitate the installation of the anchor bolts, a cardboard template in the shape of the pedestal base is included in the pedestal kit. - Page 13 Once the concrete pad with anchor bolts has been prepared and the three service conductors have been pulled through the underground conduit, the pedestal post may be placed. DO NOT remove the tape at the bottom of the pedestal. This tape is provided for finish and weather protection of the pedestal post. NOTE: Feed the three service conductors up through the inside of the pedestal post.
- Page 14 , Inc. 4. INSTALL THE PEDESTAL BASE COVER A two-piece pedestal base cover set is included in the pedestal kit. The purpose of the pedestal base cover is to beautify the installation and to protect against injury from protruding anchor bolts.
- Page 15 1. INSTALL THE TESLA® WALL CONNECTOR MOUNTING PLATE A mounting plate is affixed to the front of the pedestal post to provide a flat and rigid base on which the wall connector can be mounted. In the case of a Dual-Mount installation, a second mounting plate is affixed to the opposite side of the pedestal post.
-
Page 16: Tesla® Wall Connector
3. PREPARE THE TESLA® WALL CONNECTOR FOR PEDESTAL MOUNTING With the TESLA® Mounting Bracket in place, the pedestal is now ready for a TESLA® Wall Connector to be mounted. For Dual-Mount Installations, repeat the steps below for the opposite side. - Page 17 WALL CONNECTOR ClipperCreek ClipperCreek , Inc. , Inc. 4. MOUNT THE TESLA® WALL CONNECTOR TO THE PEDESTAL The TESLA® Wall Connector has provisions for 1” (25 mm) conduit. • • Align the TESLA® Wall Connector over the Mounting Bracket. •...
- Page 18 TESLA® PEDESTAL INSTALLATION GUIDE: WALL CONNECTOR ClipperCreek ClipperCreek , Inc. , Inc. 5. CONNECT THE WIRING NOTE: For most branch circuits of 100A, use 3 AWG (26.7 mm2), 75°C (167°F) copper wire. For installations less than 100A, use conductors that are sized according to local electrical codes.
- Page 19 TESLA® PEDESTAL INSTALLATION GUIDE: WALL CONNECTOR ClipperCreek , Inc. 6. CONFIRM A SUCCESSFUL INSTALLATION Set the dip switches, located in the lower right-hand portion of the connector, to the test setting shown here. Use a pointed object such • as a pen.
- Page 20 TESLA® PEDESTAL INSTALLATION GUIDE: WALL CONNECTOR ClipperCreek , Inc. 7. SET OPERATING CURRENT • Turn off the power. WARNING: RISK OF ELECTRIC SHOCK! Before continuing, use a volt meter to confirm that NO POWER is available at the service wiring or terminals.
- Page 21 Using a T20 torx driver, re-attach the two security screws that you removed in STEP THREE. • • Turn on the Power. YOU HAVE NOW FINISHED INSTALLING THE TESLA® WALL CONNECTOR ONTO THE PEDESTAL MOUNTING SYSTEM. REFER TO THE TESLA® WALL CONNECTOR INSTALLATION GUIDE FOR TROUBLE- SHOOTING AND ADDITIONAL INFORMATION. Page 21...
-
Page 22: Clippercreek Hcs
2. INSTALL THE WALL CONNECTOR MOUNTING PLATE A mounting plate is affixed to the front of the pedestal post to provide a flat and rigid base on which the ClipperCreek HCS can be mounted. In the case of a Dual-Mount Installation, a second mounting plate is affixed to the opposite side of the pedestal post. - Page 23 5. RE-INSTALL THE PEDESTAL POST CAP The pedestal cap is provided to cover the opening to protect the conductors and inner pedestal from the elements. Install the appropriate pedestal cap for a single-mount or dual-mount charging station installation as described below.
- Page 24 The cover plate is provided to cover the electrical access hole for Single-Mount Pedestals only. Skip this step if you are installing a Dual-Mount. Secure the cover plate to the Single-Mount Pedestal using two (2) 1/4-20 x 3/4” • Torx flat-head tapered screws using a T27 Torx driver until the screw head is flush with the surface of the mounting plate.
- Page 25 Verify the safety of the installation prior to turning on the circuit breaker. • Refer to the ClipperCreek HCS User’s Guide for further operational and maintenance information. • YOU HAVE NOW FINISHED INSTALLING THE CLIPPERCREEK HCS ONTO THE PEDESTAL MOUNTING SYSTEM.
-
Page 26: Clippercreek, Inc. Customer Support
CUSTOMER SUPPORT Call your ClipperCreek. Inc. Service Representative at any time, 24 hours a day, at the number below. PLEASE HAVE THE MODEL NUMBER AND SERIAL NUMBE R AVAILABLE WHEN YOU CALL. This information is printed on the label . If your call is made after business hours or on weekends, please leave your name, telephone number, the unit serial number, and a brief description of the problem. -
Page 27: Clippercreek, Inc. Warranty Information
To obtain warranty service: Call your nearest authorized Service Representative or the ClipperCreek division of Enphase at the above number. You will receive information as to how service for the product will be provided. If you mail or ship the product in for service, you must insure the product, prepay all shipping charges, and properly pack it for shipment in its original shipping container or its equivalent. - Page 28 PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. ClipperCreek , Inc. 11850 Kemper Rd., Suite E Auburn, CA 95603 www.clippercreek.com 530-887-1674 Page 28...
