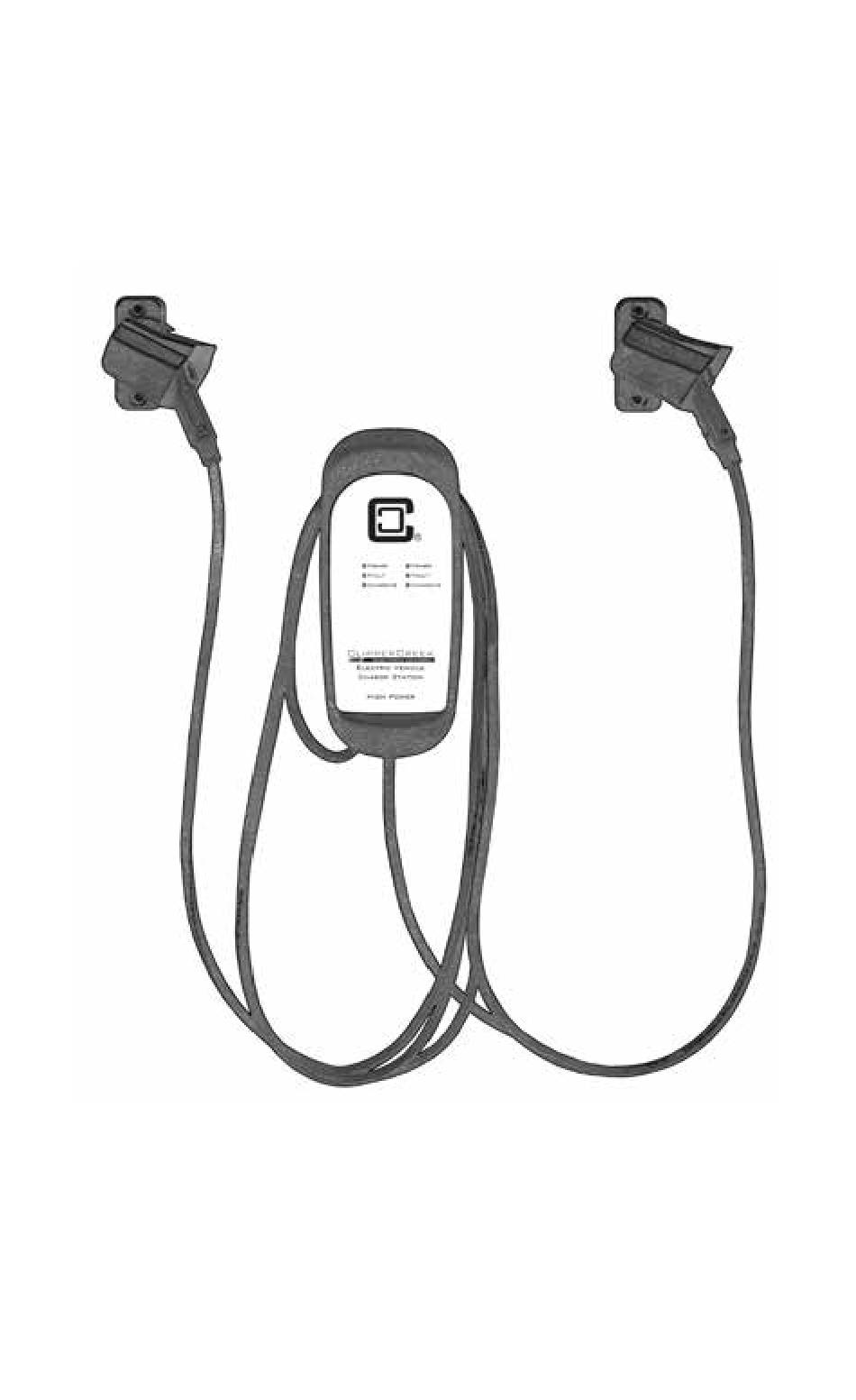

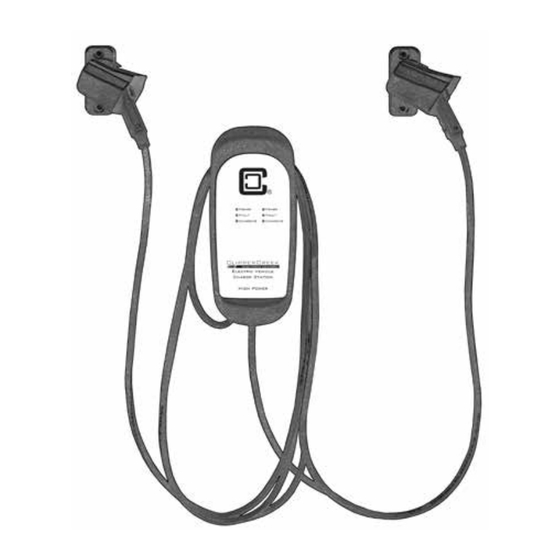

- Page 1 ClipperCreek, Inc. Innovative Infrastructure for Electric and Hybrid Vehicles User Manual • • • • • • • Model HCS-D...
- Page 2 PLEASE NOTE This user manual includes the latest information at the time of printing. ClipperCreek, Inc. reserves the right to make changes to this product without further notice. Changes or modifications to this product by other than an authorized service facility may void the product warranty.
-
Page 3: Table Of Contents
HCS-D User Manual CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........5 Instructions Pertaining to a Risk of Fire or Electric Shock FCC INFORMATION ..............11 OPERATION ...................12 The HCS-D Front Panel INSTALLATION - SERVICE CONNECTIONS ......14 MOUNTING PROCEDURES ............22 HCS-D EVSE Mounting for Hollow-Wall Construction HCS-D EVSE Mounting for Solid-Wall Construction WIRING INSTRUCTIONS (Hardwired HCS-D) .......27 RECEPTACLE INSTRUCTIONS (Plug-In HCS-D) ....28... - Page 4 HCS-D User Manual ILLUSTRATIONS Figures HCS-D Front Panel ..................13 220/240V Single Phase .................18 208V 3-Phase, Wye-Connected ..............18 240V 3-Phase, Delta-Connected, w/Center-Tap on One Leg ......19 Mounting the HCS-D to a Hollow-Wall ............24 Mounting the HCS-D to a Solid-Wall ............26 Wiring the HCS-D in a Junction Box ............27 Preferred Orientation of the NEMA Receptacles Below the Plug-in HCS-D ..................28 Locking the SAE-J1772...
-
Page 5: Important Safety Instructions
HCS-D User Manual IMPORTANT SAFETY INSTRUCTIONS ClipperCreek Electric Vehicle Supply Equipment (EVSE) is designed with the safety concerns of the end user as an utmost priority; however, the following safety precautions must be read and followed: • The EVSE and electrical wiring should be installed by a qualified electrician in accordance with local electrical codes and ordinances. -
Page 6: Instructions Pertaining To A Risk Of Fire Or Electric Shock
HCS-D User Manual ATTENTION: Ce symbole signifie être prudent. Vous êtes capable de faire quelque chose qui pourrait causer des dommages à l’équipement. PRECAUCIÓN: Este símbolo significa que debe tener cuidado. Usted es capaz de hacer algo que podría dañar el equipo. - Page 7 HCS-D User Manual information. Do not attempt to repair or service the EVSE yourself. • Do not operate your EVSE if it or the SAE-J1772 charge cable is physically open, cracked, frayed, or otherwise visibly damaged. Contact a Service Representative for service immediately.
- Page 8 HCS-D User Manual N’essayez pas de réparer ou d’entretenir la station de recharge vous-même. • Ne faites pas fonctionner votre station ou le câble de recharge si elles sont physiquement ouverte, fissuré, effiloché, ou autrement visiblement endommagé. Contactez votre représentant du service pour service immédiatement. Consultez la section Support à...
- Page 9 HCS-D User Manual para obtener información de servicio. No intente reparar o reparar el EVSE usted mismo. • No opere su EVSE si éste o el cable de carga SAE- están físicamente abiertos, agrietados, J1772 deshilachados o dañados de otra manera. Póngase en contacto con un Representante de Servicio Técnico para su reparación.
- Page 10 HCS-D User Manual VENTILATION: Certains véhicules électriques nécessitent un système de ventilation externe pour éviter l’accumulation de gaz explosifs ou dangereux lors de la charge à l’intérieur. Consultez le manuel du propriétaire du véhicule pour déterminer si votre véhicule nécessite une ventilation quand le recharge en salle.
-
Page 11: Fcc Information
RF communications equipment, etc.) could affect operation. If interference to the EVSE is suspected, the following steps should be taken before consulting a ClipperCreek Sales or Service Representative for assistance: 1. Reorient or relocate nearby electrical appliances or equipment during charging. -
Page 12: Operation
NOTE: Multiple configurations of the HCS-D EVSE are discussed in this manual; we recommend contacting ClipperCreek, Inc., as some units are not yet available. The HCS-D EVSE is a compact wall or pedestal-mounted EVSE that provides the Plug-in Hybrid or Battery Electric Vehicle (together Plug-In Electric Vehicles, or “PEV”) user with a safe and... -
Page 13: The Hcs-D Front Panel
HCS-D User Manual The HCS-D Front Panel Figure 1: HCS-D Front Panel LED Information The front panel on the HCS-D has six indicator lights, as shown in Figure 1. The three colored indicators - left and right - display status for each of the two vehicle connectors. -
Page 14: Installation - Service Connections
HCS-D User Manual INSTALLATION - SERVICE CONNECTIONS CAUTION: To reduce the risk of fire, connect only to a circuit provided with the appropriate maximum branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70 (US) or the Canadian Electric Code C22.2 NO. - Page 15 HCS-D User Manual must be grounded somewhere in the system. A Neutral connection is not required by the HCS-D. Only Line 1, Line 2, and Ground are required, as shown in Figure 3. ATTENTION: Il s’agit d’un appareil monophasé. Ne pas relier tous les trois phases d’une alimentation triphasée!!! Vous pouvez utiliser les deux phases d’un triphasé...
- Page 16 HCS-D User Manual connected secondary, the leg used must have a center-tap. That tap must be Grounded. Only the two phases on either side of the center-tapped leg can be used. See Figure 4. ATTENTION: Si une alimentation à triphasé 240V provient d’un triangle connecté...
- Page 17 HCS-D User Manual Only 3 wires are connected, but care must be taken that the service transformer secondary connection is definitely known, and the 3 wires from the main circuit breaker panel are connected and labeled correctly. Figures 2, 3, and 4 show the most common service transformer secondary wiring formats.
-
Page 18: V Single Phase
HCS-D User Manual The following diagrams illustrate the three service transformer secondary connections most common in North America. Figure 2: 220/240V Single Phase 120V 240V NEUTRAL (NOT USED) 120V GROUND Figure 3: 208V 3-Phase, Wye-Connected L3 (NOT USED) 120V 208V NEUTRAL (NOT USED) 120V... -
Page 19: V 3-Phase, Delta-Connected, W/Center-Tap On One Leg
HCS-D User Manual NOTE: With a wye-connected secondary, any two of the legs can be used to provide 208V to the HCS-D. For example, L1 & L2, or L1 & L3, or L2 & L3. Leave the unused leg open. Do not connect it to a Neutral bar, or to Ground. - Page 20 HCS-D User Manual CAUTION: With the delta connection, one leg must be center-tapped. Only the two phases on either side of the center tap can be used. The two phases must both measure 120V to Neutral. The third line (L3) of the delta is 208V, with respect to Neutral, and is sometimes referred to as a “stinger”.
- Page 21 HCS-D User Manual ATTENTION: Un triphasé triangle-connecté transformateur secondaire sans centre-tap sur le terminal ne peut pas être utilisé avec la HCS-D. Aucun point “Neutre” est disponible pour être connecté à Mise à la Terre pour protection de défaut à la terre. Le HCS-D ne permettra pas le contacteur de fermer si elle ne détecte pas la présence d’un fil de Masse connecté...
-
Page 22: Mounting Procedures
HCS-D User Manual MOUNTING PROCEDURES Determine the wall mounting location for the EVSE: • On the hardwired HCS-D, the three service conductors are shielded by three feet of flexible conduit at the bottom of the unit. The HCS-D must be positioned such that this conduit can reach a nearby junction box. - Page 23 HCS-D User Manual ADVERTENCIA: Por seguridad, siempre apague la alimentación de entrada al EVSE en el panel del interruptor de circuito antes de enchufarlo o cablearlo a las líneas de servicio. Del mismo modo, apague el interruptor antes de desenchufarlo o desconectar la unidad de las líneas de servicio.
-
Page 24: Hcs-D Evse Mounting For Hollow-Wall Construction
HCS-D User Manual HCS-D EVSE Mounting for Hollow-Wall Construction • Place the unit such that both mounting holes can take advantage of solid structural framing inside of the wall or a strong wall surface such as plywood. • Size ¼”- 20 lag screws are recommended for mounting the HCS-D to a wooden structure. -
Page 25: Hcs-D Evse Mounting For Solid-Wall Construction
HCS-D User Manual HCS-D EVSE Mounting for Solid-Wall Construction • To secure the unit in concrete, pre-drill appropriately sized holes and use multi-set or wedge anchor hardware at both mounting points. • To secure the unit in brick or stone, pre-drill appropriately sized holes and use sleeve anchors at both mounting points. -
Page 26: Mounting The Hcs-D To A Solid-Wall
HCS-D User Manual Figure 6: Mounting the HCS-D to a Solid-Wall Solid Wall Mounting (flush) Longer... -
Page 27: Wiring Instructions (Hardwired Hcs-D)
HCS-D User Manual WIRING INSTRUCTIONS (Hardwired HCS-D) Route the HCS-D conduit to a nearby junction box. Use the included ½” trade size watertight conduit fitting and sealing washer to provide a moisture-resistant seal between the conduit fitting and the junction box. If necessary, drill a 7/8” diameter hole to accommodate the conduit fitting. -
Page 28: Receptacle Instructions (Plug-In Hcs-D)
HCS-D User Manual RECEPTACLE INSTRUCTIONS (Plug-In HCS-D) The plug-in HCS-D is fitted with either a NEMA 14-50 or 6-50 plug extending from the bottom of the HCS-D enclosure. Regulations limit this plug to a maximum of 12 inches in length, including the plug head. -
Page 29: Grounding Instructions
HCS-D User Manual GROUNDING INSTRUCTIONS This product must be grounded. If this product should malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. HCS-D Hardwired EVSE Grounding The hardwired HCS-D is equipped with three service conductors shielded by three feet of flexible conduit. -
Page 30: Using The Padlock
HCS-D User Manual USING THE PADLOCK A padlock with three keys is included with some ClipperCreek EVSE (when connector style permits lock hole). This rust-proof, solid brass padlock is to secure a vehicle’s charge from being interrupted. Figure 9: Locking the SAE-J1772... -
Page 31: Moving & Storage Instructions
HCS-D User Manual MOVING & STORAGE INSTRUCTIONS NOTE: The hardwired HCS-D and the plug-in HCS-D are intended for fixed installations. For mounting requirements, consult the Mounting Procedures section of the Installation Instructions in this manual. Always turn off input power to the EVSE at the circuit breaker panel prior to hard-wiring an HCS-D to or disconnecting an HCS-D from the service lines. -
Page 32: Maintenance
HCS-D User Manual MAINTENANCE The HCS-D requires no periodic maintenance other than occasional cleaning. WARNING: To reduce the risk of electrical shock or equipment damage, exercise caution while cleaning the unit and the EV charge connector cable. 1. Turn off the EVSE at the circuit breaker before cleaning. -
Page 33: Mounting The Sae-J1772
HCS-D User Manual MOUNTING THE SAE-J1772 CONNECTOR HOLSTERS connector holsters are included to provide a The SAE-J1772 convenient protective housing for the SAE-J1772 connector head when it is not in use. • The SAE-J1772 connector holster should be placed so that users have easy and safe access to the SAE-J1772 connector. -
Page 34: Mounting The Sae-J1772
HCS-D User Manual Figure 12: Mounting the SAE-J1772 Connector Holsters Using the Exterior Wood Screws and Washers Figure 13: Example of Installed HCS-D and Two Connector Holsters NOTE: Cable Cradle shown below is not included and is sold separately... -
Page 35: Charge Cable Wrap Guidelines
HCS-D User Manual CHARGE CABLE WRAP GUIDELINES The HCS-D enclosure body is sculpted to allow the charge cables to be wrapped around it for convenient storage as well as to keep the bulk of the cable off of the ground and out of the way. As the charge cable is comprised of a number of wires, coiling the charge cable too tightly around the HCS-D enclosure will result in the charge cable feeling warmer to the touch than would ordinarily be... -
Page 36: Customer Support
HCS-D User Manual CUSTOMER SUPPORT Call a ClipperCreek, Inc. Service Representative at any time, 24 hours a day, at the number below. PLEASE HAVE THE MODEL NUMBER AND SERIAL NUMBER AVAILABLE WHEN CALLING. This information is printed on the label on the side of the HCS-D enclosure. -
Page 37: Specifications
HCS-D User Manual SPECIFICATIONS Line Input Power 240V AC single-phase - L1, L2, and Safety Ground. Voltage & Wiring: 208V AC 3-phase wye-connected - Any two phases and Safety Ground. 240V AC 3-phase, delta-connected. With center-tap on one leg, must use only the two phases on either side of the center-tap. -
Page 38: Warranty Information (3 Year Standard)
If this product is not as warranted, your sole and exclusive remedy shall be repair or replace as provided above. In no event will ClipperCreek, any of its authorized sales and service representatives, or its parent company be liable to customer or any third party for any damages in excess of the purchase price of the product. -
Page 39: Warranty Information (5 Year Ruggedized)
ClipperCreek or an authorized ClipperCreek representative or dealer has been advised of the possibility of such damages or of any claim by any other party. - Page 40 ClipperCreek, Inc. 11850 Kemper Rd., Suite E Auburn, CA 95603 www.ClipperCreek.com (877) 694-4194...
