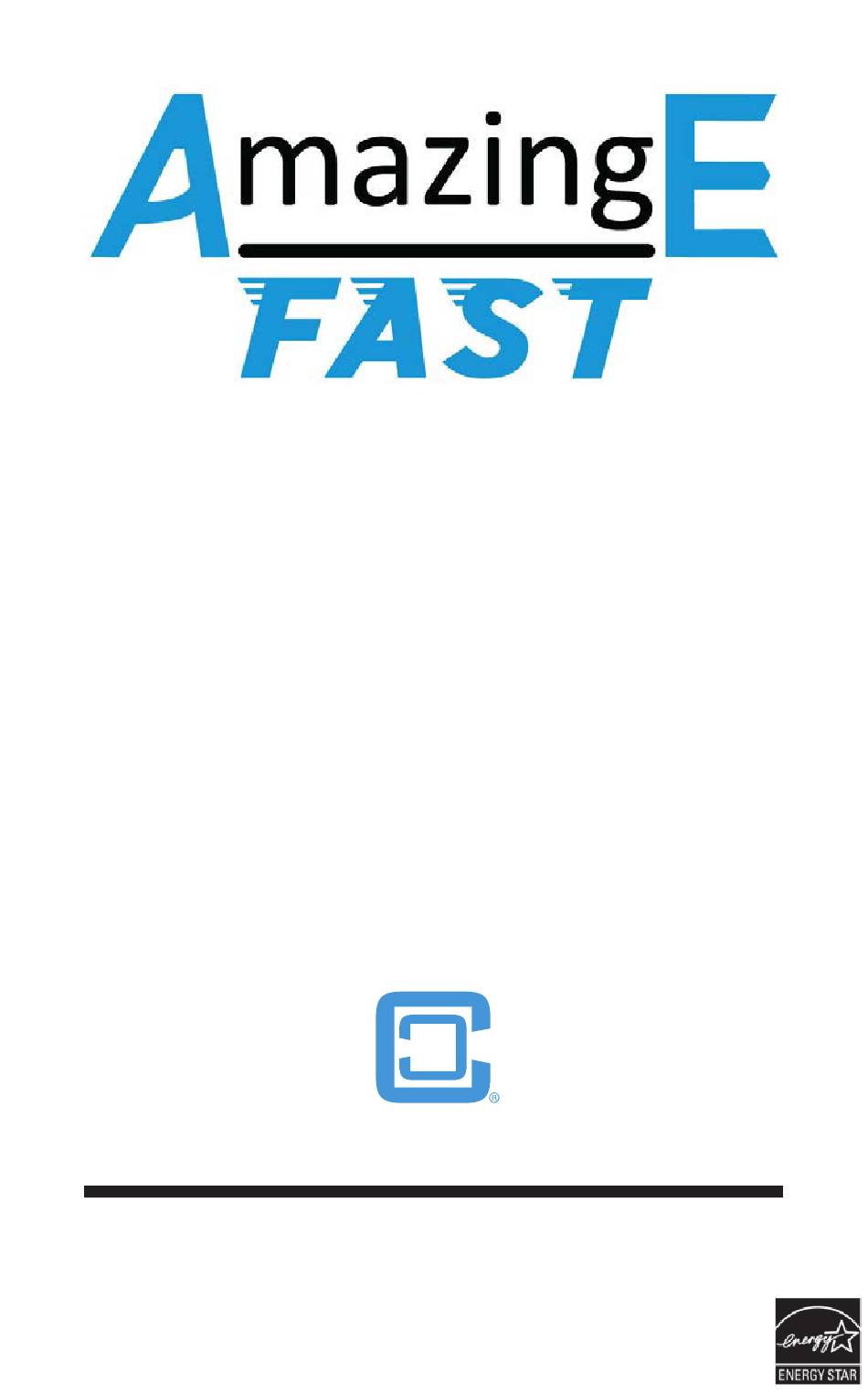

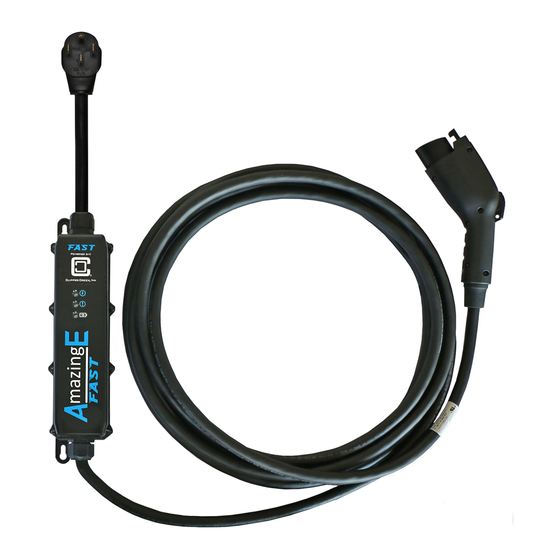

  • Page 1 Electric Vehicle Supply Equipment Powered by: ClipperCreek, nc . User Manual...
  • Page 2 California como causante de cáncer. Para más información visite: www.P65Warnings.ca.gov To view or download the latest version of this manual please visit www.Amazing-E.com/manual AmazingE FAST User Manual, Version 1, February 2020 Copyright© 2020, AmazingE All rights reserved. Printed in the USA. Manual Number: 7004-0030...

  • Page 3: Table Of Contents

    The AmazingE FAST Front Panel INSTALLATION: SERVICE CONNECTIONS ........17 MOUNTING PROCEDURES ............26 For Hollow-Wall Construction Mount For Solid-Wall Construction Mount WIRING INSTRUCTIONS (Hardwired AmazingE FAST) ....29 RECEPTACLE INSTRUCTIONS ............32 GROUNDING INSTRUCTIONS ............33 MOVING & STORAGE INSTRUCTIONS ........34 MAINTENANCE .................35 SPECIFICATIONS ................36 CUSTOMER SUPPORT ...............38...
  • Page 4 4. 240V 3-PHASE, DELTA-CONNECTED, WITH CENTER-TAP ON ONE LEG ................23 5. AMAZINGE FAST MOUNTING OPTIONS ......27 6. MOUNTING SCREW SLOTS OF AMAZINGE FAST ....28 7. WIRING THE EVSE IN A JUNCTION BOX ......29 8. CHECK BOTH CONDUIT FITTINGS AFTER INSTALLATION ...31 9.

  • Page 5: Important Safety Instructions

    AmazingE FAST EVSE User Manual IMPORTANT SAFETY INSTRUCTIONS Carefully read these instructions and the charging instructions in the vehicle owner’s handbook before charging the electric vehicle. The following symbols may be found in this manual or on labels affixed to the Electric Vehicle Supply Equipment (EVSE): NOTE: This means pay particular attention.

  • Page 6: Instructions Pertaining To A Risk Of Fire Or Electric Shock

    Instructions Pertaining to a Risk of Fire or Electric Shock When using the AmazingE FAST, basic electrical safety precautions should be followed: • Use this EVSE to charge electric vehicles equipped with an SAE J1772 charge port only.
  • Page 7 EVSE. Instructions se Rapportant à un Risque d’Incendie ou de Choc Électrique Lorsque l’utilisation de la AmazingE FAST, précautions fondamentale de sécurité électrique doivent être suivies: • Utilisez cette station de recharge pour charger les véhicules électriques équipés d’un SAE J1772 port de recharge...
  • Page 8 AmazingE FAST EVSE User Manual si elles sont physiquement ouverte, fissuré, effiloché, ou autrement visiblement endommagé. Contactez votre représentant du service pour service immédiatement. Consultez la section Support à la clientèle dans ce manuel pour obtenir des informations sur le représentant du service dans votre région.
  • Page 9 Instrucciones Relacionadas a un Riesgo de Incendio o Descarga Eléctrica Al utilizar la AmazingE FAST, se deben seguir las siguientes precauciones básicas de seguridad eléctrica: • Utilice este EVSE para cargar vehículos eléctricos equipados sólo con un puerto de carga SAE J1772.

  • Page 10: Additional Safety Instructions

    AmazingE FAST EVSE User Manual de un adulto es obligatoria cuando hay niños que estén cerca de un EVSE que está en uso. • Los tomacorrientes de 240V están específicamente diseñados para reubicaciones ocasionales, como la mudanza de una casa a otra.
  • Page 11 AmazingE FAST EVSE User Manual ADVERTENCIA: Desconecte la alimentación del EVSE en el panel del interruptor automático antes de mover, reparar o limpiar la unidad. WARNING: Always turn off input power to the EVSE at the circuit breaker panel prior to plugging into or unplugging from a wall socket.
  • Page 12 AmazingE FAST EVSE User Manual require an exhaust fan. The AmazingE FAST is not equipped to control ventilation fans. Do not charge the vehicle with the AmazingE FAST if ventilation is required. REMARQUE: Véhicules qui sont conformes à la norme SAE J1772 de communication peuvent informer la station de recharge qu’ils nécessitent un ventilateur d’extraction.

  • Page 13: Fcc Information

    AmazingE FAST EVSE User Manual FCC INFORMATION This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 14: Operation

    AmazingE FAST EVSE User Manual OPERATION The AmazingE FAST EVSE is a compact, travel-friendly EVSE that provides the Plug-In Electric Vehicle (PEV) user with a safe and manageable link between the power grid and the PEV. Plug the EVSE into the wall or have a licensed electrician install the hardwired EVSE.

  • Page 15: The Amazinge Fast Front Panel

    AmazingE FAST EVSE User Manual THE AmazingE FAST FRONT PANEL The front panel on the AmazingE FAST Figure 1: Front Panel has three indicator lights: Power (Amber) indicates the EVSE is ON and ready to use. Fault (Red) indicates that...
  • Page 16 AmazingE FAST EVSE User Manual Table 1: Front Panel LED Information Amber Green Fault Condition POWER FAULT CHARGING off off No power to the EVSE. Check circuit breaker. EVSE has power, not plugged into PEV, or off PEV not requesting a charge.

  • Page 17: Installation: Service Connections

    AmazingE FAST EVSE User Manual INSTALLATION: SERVICE CONNECTIONS CAUTION: To reduce the risk of fire, connect only to a circuit provided with the appropriate maximum branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70 (US) or the Canadian Electric Code C22.2 NO.
  • Page 18 AmazingE FAST EVSE User Manual CAUTION: This is a single-phase device. DO NOT connect all three phases of a 3-phase feed! Use any two phases of a three-phase wye-transformer feed. The center-point of the three phases (usually used as Neutral) must be grounded somewhere in the system.
  • Page 19 AmazingE FAST EVSE User Manual ATENCIÓN: Las dos fases utilizadas deben cuantificar 120V a punto Neutro. La Conexión a Tierra debe conectarse al punto Neutro en un solo punto, general-mente en la entrada de servicio del panel de interrup tores automáticos.
  • Page 20 AmazingE FAST EVSE User Manual AVERTISSEMENT: Seul un électricien qualifié doit effectuer l’installation. L’installation doit être effectuée conformément à tous les codes électriques locaux et des ordonnances. ADVERTENCIA: Sólo un electricista capacitado debe realizar la instalación. La instalación debe realizarse conforme a todos los códigos y ordenanzas locales.
  • Page 21 AmazingE FAST EVSE User Manual The following diagrams illustrate the three service transformer secondary connections most common in North America. Figure 2: 220/240V Single-Phase 240V 120V NEUTRAL (NOT USED) 120V GROUND Figure 3: 208V 3-Phase, Wye-Connected L3 (NOT USED) 120V...
  • Page 22 REMARQUE: Avec un transformateur étoile-connecté secondaire, deux des lignes peut être utilisé pour fournir 208V à la AmazingE FAST. Par exemple , L1 & L2, ou L1 & L3, ou L2 & L3. Laissez la borne inutilisée ouverte. Ne le connectez pas à un bar Neutre, ou à la Mise à la Terre.
  • Page 23 AmazingE FAST EVSE User Manual Figure 4: 240V 3-Phase, Delta-Connected, with center-tap on one leg L3 (DO NOT USE!) 240V 120V NEUTRAL (NOT USED) 120V GROUND Page 23...
  • Page 24 AmazingE FAST EVSE User Manual CAUTION: With the Delta connection, one leg must be center-tapped. Only the two phases on either side of the center tap can be used. The two phases must both measure 120V to Neutral. The third line (L3) of the delta is 208V, with respect to Neutral, and is sometimes referred to as a “stinger.”...
  • Page 25 CAUTION: A 3-Phase Delta-Connected transformer secondary without a center-tap on one leg cannot be used with the AmazingE FAST. No “Neutral” point is available to be connected to Ground for Ground-fault protection. The EVSE will not allow the contactor to close if it does not sense the presence of a Ground wire connected to a “Neutral”...

  • Page 26: Mounting Procedures

    • The plug-in versions of AmazingE FAST have the NEMA plug head connected by nearly one foot of cable (including the plug head) to the top of the EVSE. The EVSE must be positioned such that this plug can safely be inserted into a wall-mounted NEMA socket.

  • Page 27: For Hollow-Wall Construction Mount

    • Use proper anchoring hardware such as drywall toggles or molly bolts if unable to mount hardware into a solid surface. See Hollow-Wall Construction in Figure 5B. Figure 5: AmazingE FAST Mounting Options Figure 5A Figure 5B For Solid-Wall Construction Mount: •...
  • Page 28 AmazingE FAST EVSE User Manual Figure 6: Mounting Screw Slots of AmazingE FAST 0.25” (6.3 mm) Ǿ 0.42” (10.7 mm) screw size and length recommended for mounting the EVSE is and at least 2” (50 mm) long to utilize the mounting tabs for a travel-friendly EVSE.

  • Page 29: Wiring Instructions (Hardwired Amazinge Fast)

    AmazingE FAST EVSE User Manual Wiring Instructions (Hardwired AmazingE FAST ) Route the EVSE conduit to a nearby junction box. Use the included 1/2” trade size NPT watertight fitting to provide a moisture resistant seal with the junction box. If necessary, drill a 1/2”...
  • Page 30 AmazingE FAST EVSE User Manual Before connecting the EVSE service conductors, please carefully read the section of this manual titled Service Connections. If you are unsure of the type of power provided at the service panel, please consult with your local utility or call your Service Representative for assistance.
  • Page 31 AmazingE FAST EVSE User Manual WARNING: The conduit fitting can loosen during the installation process. To ensure a watertight installation, re-check and fully hand-tighten BOTH conduit fittings, as shown in Figure 8, after the installation process is complete. AVERTISSEMENT: Le raccord de câble peut se desserrer pendant l’installation.

  • Page 32: Receptacle Instructions

    AmazingE FAST EVSE User Manual RECEPTACLE INSTRUCTIONS The plug-in AmazingE FAST is fitted with a NEMA 14-50 plug. The plug extends from the top of the EVSE enclosure. Regulations limit this plug to a maximum of 12 inches (30.5 cm) in length. For this reason, the EVSE must be mounted below the NEMA receptacle and must also be located within 12 inches (30.5 cm) of it.

  • Page 33: Grounding Instructions

    Ground lead on the product. Plug-in AmazingE FAST: The plug-in AmazingE FAST is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate receptacle that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 34: Moving & Storage Instructions

    AmazingE FAST EVSE User Manual MOVING & STORAGE INSTRUCTIONS Note that both the hardwired EVSE and the plug-in EVSE are intended for fixed installations. For mounting requirements, consult the Mounting Procedures section of the Installation Instructions in this manual. WARNING: Always turn off input power to the EVSE at the circuit breaker panel prior to plugging into or unplugging from a NEMA socket.

  • Page 35: Maintenance

    AmazingE FAST EVSE User Manual MAINTENANCE The AmazingE FAST requires no periodic maintenance other than occasional cleaning. WARNING: To reduce the risk of electrical shock or equipment damage, exercise caution while cleaning the EVSE and the EV charge connector cable.

  • Page 36: Specifications

    AmazingE FAST EVSE User Manual SPECIFICATIONS Line Input Power Voltage & Wiring: 240V AC single-phase- L1, L2 and Safety Ground 208V AC 3-phase wye-connected- any 2 phases and Safety Ground 240V AC 3-phase, delta-connected. With center- tap on one leg, must use only the two phases on either side of the center-tap.
  • Page 37 AmazingE FAST EVSE User Manual Figure 10: AmazingE FAST Enclosure Dimensions AmazingE FAST 3.5” (95.3 mm) Isometric View AmazingE FAST Side View 2.75” (69.9 mm) Page 37...

  • Page 38: Customer Support

    AmazingE FAST EVSE User Manual CUSTOMER SUPPORT For questions about the AmazingE FAST, please call Customer Service at the number below. PLEASE HAVE THE SERIAL NUMBER AVAILABLE BEFORE CALLING - this information is printed on the label on the side of the EVSE enclosure.

  • Page 39: Warranty Information

    AmazingE FAST EVSE User Manual WARRANTY INFORMATION LIMITED WARRANTY ELECTRIC VEHICLE SUPPLY EQUIPMENT AND ACCESSORIES Phone: (877) 694-4194 • www.Amazing-E.com AmazingE shall provide the following warranty with respect to the Products to Representative, its Sub-Representatives and their customers: 3 years on parts, 3 years factory labor: This product is warrantied to be free from defects in material and workmanship.
  • Page 40 www.Amazing-E.com...
