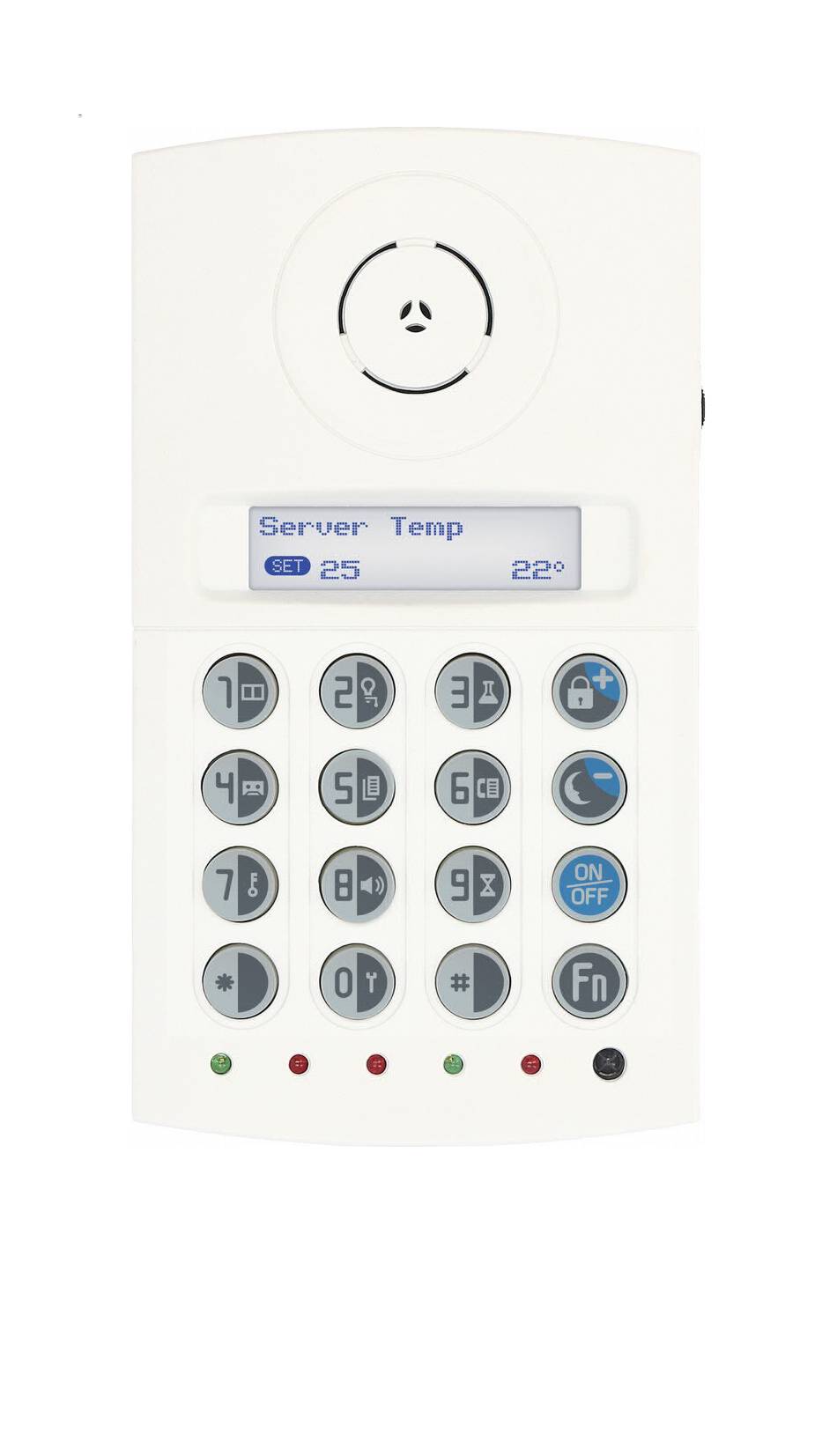

KP04AE/ KP04AET Keypad
KP04AE/ KP04AET
The KP04AE/KP04AET Keypad has a 2 line x 16
character LCD which shows alarms, Zones/Inpuuts,
Warnings, Temperature, Humidity and other sensor
readings for CM9001-EMS Environmental Monitoring
System. KP04AET has a bullt-in Temperature sensor
while KP04AE does not include the Temperature sensor.
Advertisement
Related Manuals for Cytech KP04AE
Summary of Contents for Cytech KP04AE
- Page 1 KP04AE/ KP04AET Keypad KP04AE/ KP04AET The KP04AE/KP04AET Keypad has a 2 line x 16 character LCD which shows alarms, Zones/Inpuuts, Warnings, Temperature, Humidity and other sensor readings for CM9001-EMS Environmental Monitoring System. KP04AET has a bullt-in Temperature sensor while KP04AE does not include the Temperature sensor.
- Page 2 • Sensor Display Resolution: 0.1 deg c • KP04AET Temperature Sensor 0 to 45 deg C, Accuracy 1 deg C System Requirements KP04AE/KP04AET EMS sensor dislay mode works • with CM9001-EMS firmware 7.153 & above Contents KP04AE or KP04AET keypad •...
- Page 3 Front Housing LED Indications Off (Green) Steady Security Off, all conditions Normal (no trouble) Blinking Trouble e.g. Phone line cut, RS485 comms failure. Trouble Condition is displayed Arm (Red) Steady System armed, No alarm Blinking Alarm / Alert condition. AC (Red) Steady Mains Power failure.
- Page 4 Installation Connections...
- Page 5 KP04AE/KP04AET should be installed in an indoor location, not outside the premises for security reasons. Remove the screw at the base, hold the bottom of the Front Housing pull the front housing from the back housing. Mount the back housing on the wall using the screws supplied.
- Page 6 Function Next Page Previous Page Option Up Option Down Go to Save Menu The KP04A Settings are shown below; Settings Options Comment Keypad ID 1* to 15 ID of this keypad Key Beep Soft */ Loud/ Disable Volume of key beeps Alert Beep Soft/ * Loud/ Disable Volume of KP beeps e.g.
- Page 7 In any settings menu, press * for next page, or # for previous page, 8 or 0 to change options or F for Confirm Menu Keypad ID CM9001 is able to support up to 15 keypads, either KP03, KP04A, KP05A, KP06A, KT05 in any combination. KP04A shares the same ID space as other keypads.
- Page 8 Voice Broadcast This determines if the KP04A broadcast Voice messages from CM9001, e.g. Announcements of Security Off, Away Mode, beeping and siren tones, alarm and zone announcements. This can be turned off when the KP04A is installed in a bedroom or rooms where people are not to be disturbed.
- Page 9 In Comfigurator, go to the Modules Tab, right Click and select Scan for all Modules. This will detect that KP04A is connected. if all keypads have unique IDs. Select the KP04A on the left pane. Note that KP04AT will be displayed as KP04A in Comfigurator.
- Page 10 Alarm/EMS Mode: If CM9001-EMS Controller is installed (instead of CM9001-ULT) set to EMS Mode to display up to 8 Sensor values including the built-in Temperature Sensor.
- Page 12 “Internal Sensor Name” assigns a CM9001 Sensor Register to the built-in Temperature sensor in KP04AT Refer to CM9001-EMS Manual for details of EMS Mode. “Write to Keypad” will write the settings to the KP04AT. “Read from Keypad” will read the settings from KP04AT.
