KP04 / KP05 Keypad

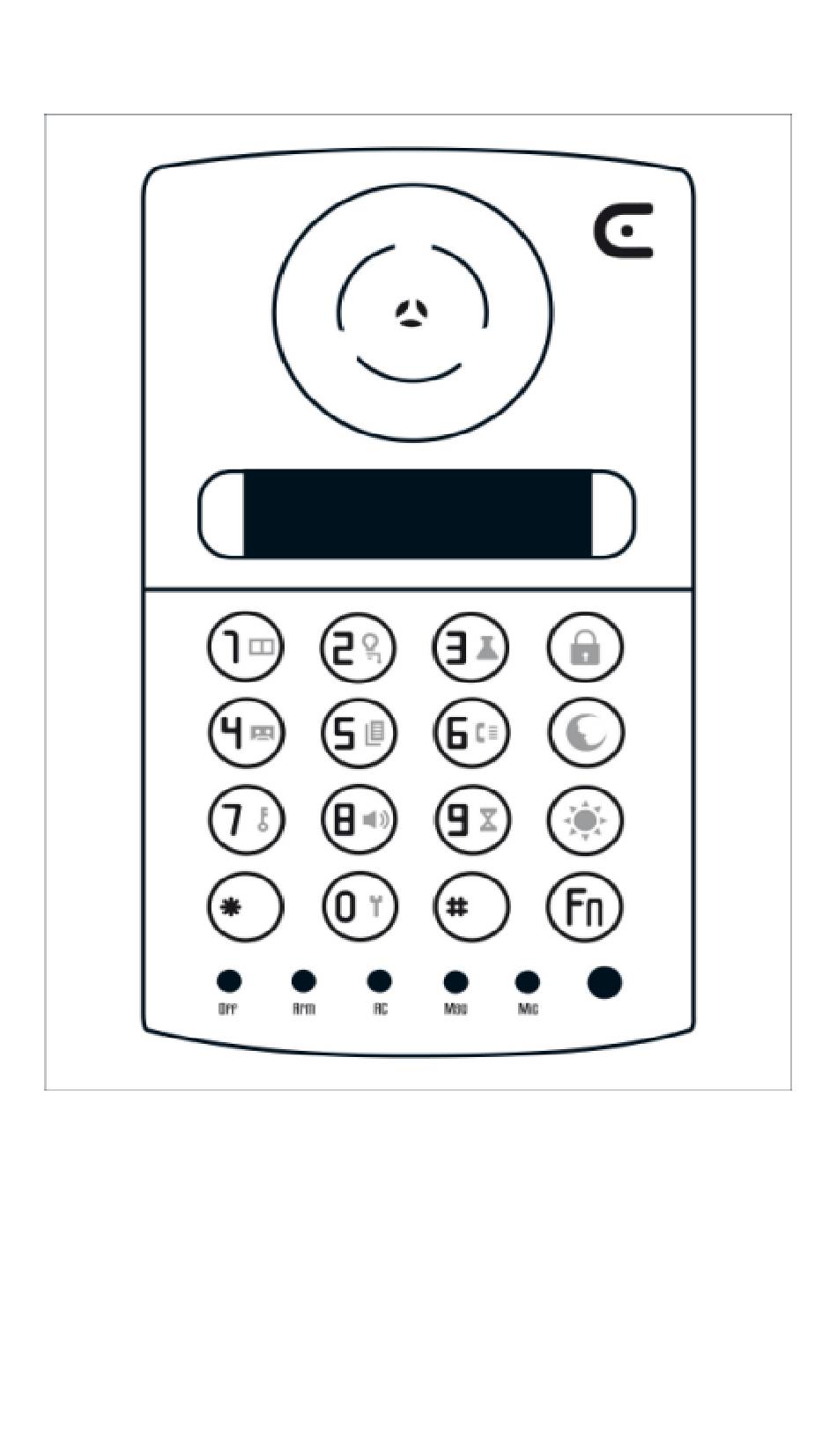

KP04 Keypad
The KP04 and KP05 Keypad has a 2 line x 16 character
LCD Display This allows users to see alarms, zones,
warnings and Evemt Log. KP04/KP05 has a Voice menu
and is able to receive Infrared codes from the RC01
handheld remote control allowing control of alarm and
home appliances. The KP04 includes a speaker and
microphone for recording, intercom and voice
Advertisement
Table of Contents
Related Manuals for Cytech KP03
Summary of Contents for Cytech KP03
- Page 1 KP04 / KP05 Keypad KP04 Keypad The KP04 and KP05 Keypad has a 2 line x 16 character LCD Display This allows users to see alarms, zones, warnings and Evemt Log. KP04/KP05 has a Voice menu and is able to receive Infrared codes from the RC01 handheld remote control allowing control of alarm and home appliances.
- Page 2 announcements. KP04 and KP05 have the same functions and specifications, except that KP04 is mounted vertically (see above figure) and KP05 is horizontal Specifications Dim: 89 x 160 x 31 mm. Carton 92 x 165 x 45 mm Weight: 177 g 2 lines by 16 character LCD Power Supply: 12V DC from Comfort System Current Consumption: 50 mA idle (No voice)
- Page 3 SW1 – set according to the ID of the keypad ID Settings (SW1) Comfort is able to support up to 8 keypads (KP03/KP04/KP05/KT03) in any combination. SW1 is a set of 4 headers which is used to determine the ID according to the table below:...
- Page 4 the message is for. Sign in with user code to hear the message Mic (Red) Steady Microphone ON for Recording or Intercom Installation KP04/KP05 should be installed in an indoor location, not outside the premises for security reasons. Remove the screw at the base and pull the front housing from the back housing.
