KP04A Keypad
KP04 A Keypad
KP04A is an improved version of KP04 with
programmable settings replacing fixed shunts, able to
be changed via Comfigurator, and the ability to
upgrade its firmware.

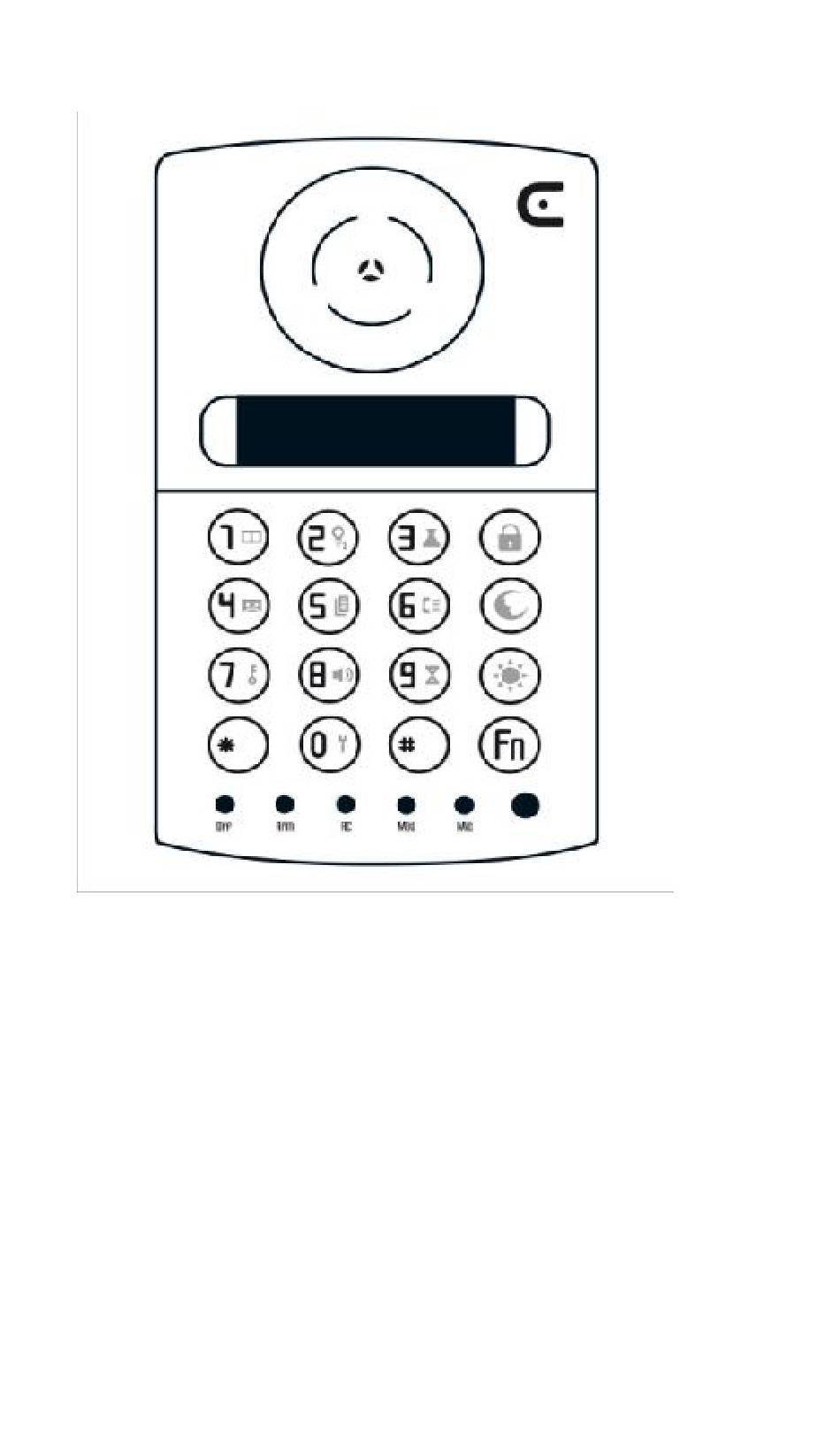

The KP04A Keypad has a 2 line x 16 character LCD
which shows alarms, zones, warnings and Event Log.
KP04A has a Voice menu and is able to receive
Infrared codes from the RC01 remote control allowing
control of alarm and home appliances. Includes a
speaker and microphone for recording, intercom and
voice announcements.
Advertisement
Table of Contents
Related Manuals for Cytech KP04A
Summary of Contents for Cytech KP04A
- Page 1 Comfigurator, and the ability to upgrade its firmware. The KP04A Keypad has a 2 line x 16 character LCD which shows alarms, zones, warnings and Event Log. KP04A has a Voice menu and is able to receive Infrared codes from the RC01 remote control allowing control of alarm and home appliances.
- Page 2 Up to 8 Keypads (KP04/KP05, KP06/ KT03) System Requirements Comfort II Controller firmware 7.061 & above Contents KP04A keypad 2 wall plugs and screws for mounting. 3 x 2 way removable terminal blocks Connections to Comfort JP1 –...
- Page 3 Mic (Red) Steady Microphone ON for Recording or Intercom Installation KP04A should be installed in an indoor location, not outside the premises for security reasons. Remove the screw at the base and pull the front housing from the back housing.
- Page 4 Voice menu is heard. KP04A Settings The KP04A has ID set to 1 as default. There are no shunts for configuration or setting in KP04A as all setting is done through the Settings Menu.
- Page 5 Comfort is able to support up to 8 keypads, either KP03, KP04, KP05, KP06,KT03 in any combination. KP04A shares the same ID space as other keypads. Do not set any keypad with the same ID as another keypad as this will cause a conflict and lead to a “communication failure”...
- Page 6 Voice messages from Comfort, e.g. Announcements of Security Off, Away Mode, beeping and siren tones, alarm and zone announcements. This can be turned off when the KP04A is installed in a bedroom or rooms where people are not to be disturbed. Keypad Tamper This determines if the Tamper alarm is activated when the LCD is removed from the base.
- Page 7 LCD to be read even when backlight is off. Save Menu Save and Apply - Yes, No (default NO) “Yes” causes settings to be saved and KP04A to reset “No” causes changes to be lost and exit from Settings menu Press F again to confirm the selection (Yes/No).
- Page 8 This will detect that KP04A is connected if all keypads have unique IDs. Select the KP04A on the left pane. The right pane shows the display below; “Write to Keypad” will write the settings to the KP04A. “Read from Keypad” will read the settings from KP04A.
