Digital Loggers Ethernet Power Controller 5 User Manual page 6

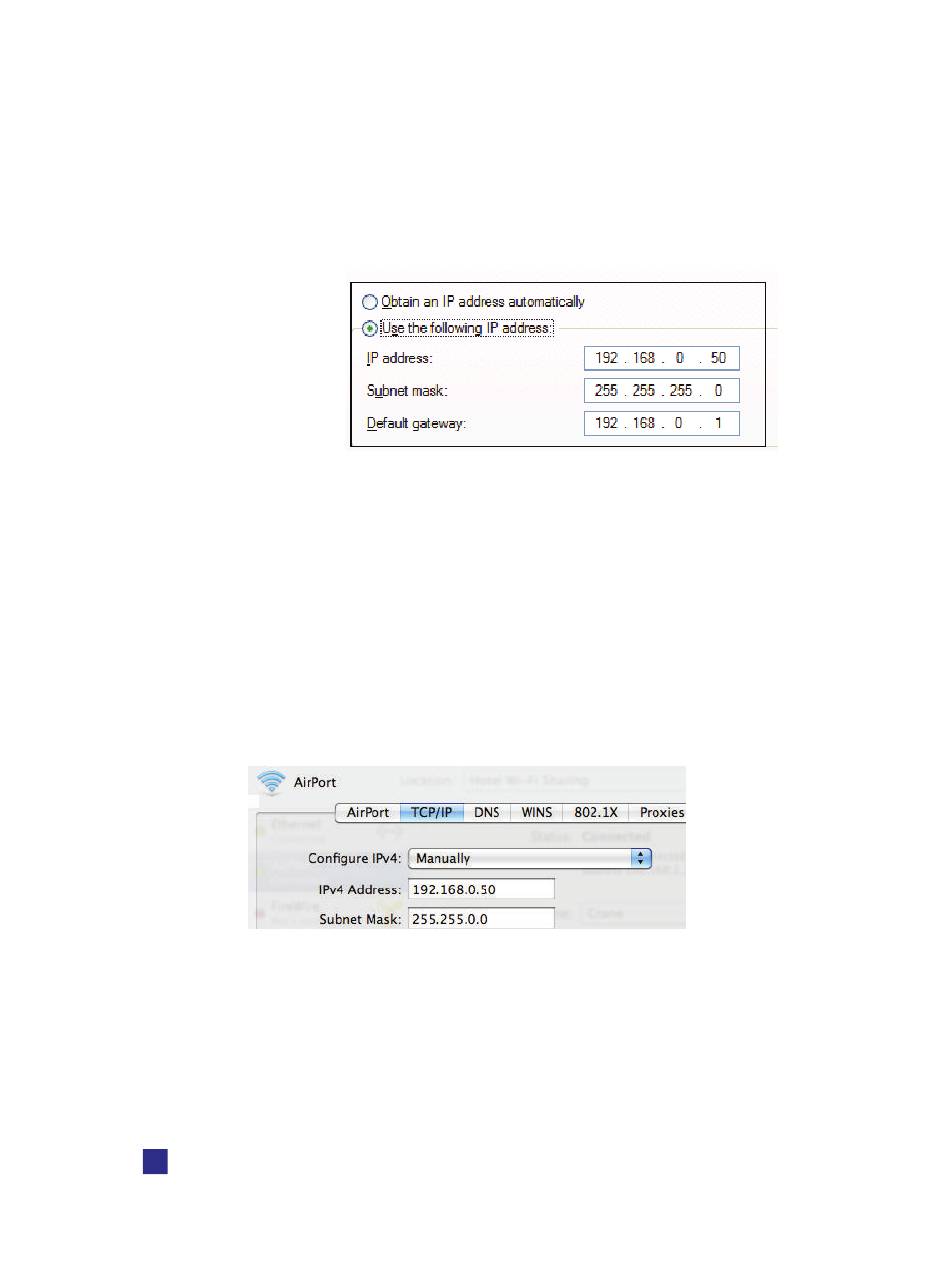

Windows Step 2
The second step is adding an IP such as 192.168.0.50
Temporarily disable DHCP while confi guring the switch.
Select Internet
Protocall TCP/
IP V4 Properties
and click
Properties. Enter
a compatible
static IP such as:
Click Apply and close windows. Ping the power switch to confi rm
the connection. Point your browser to 192.168.0.100 Log in.
Detailed instructions are at digital-loggers.com/ip_setup
Max OS X
Turn AirPort off temporarily. Click the Apple logo, then System
Preferences, then Network. Select Built-In Ethernet and then
Confi gure. Under the TCP/IP tab, select Manually and enter an IP
address such as 192.168.0.0 as shown:
Make changes shown. Point a browser to 192.168.0.100 Log in.
Find Mac setup details at digital-loggers.com/mac_ip_setup
6 Web Power Switch 7 digital-loggers.com
