Summary of Contents for Digital Loggers Ethernet Power Controller II
Page 1

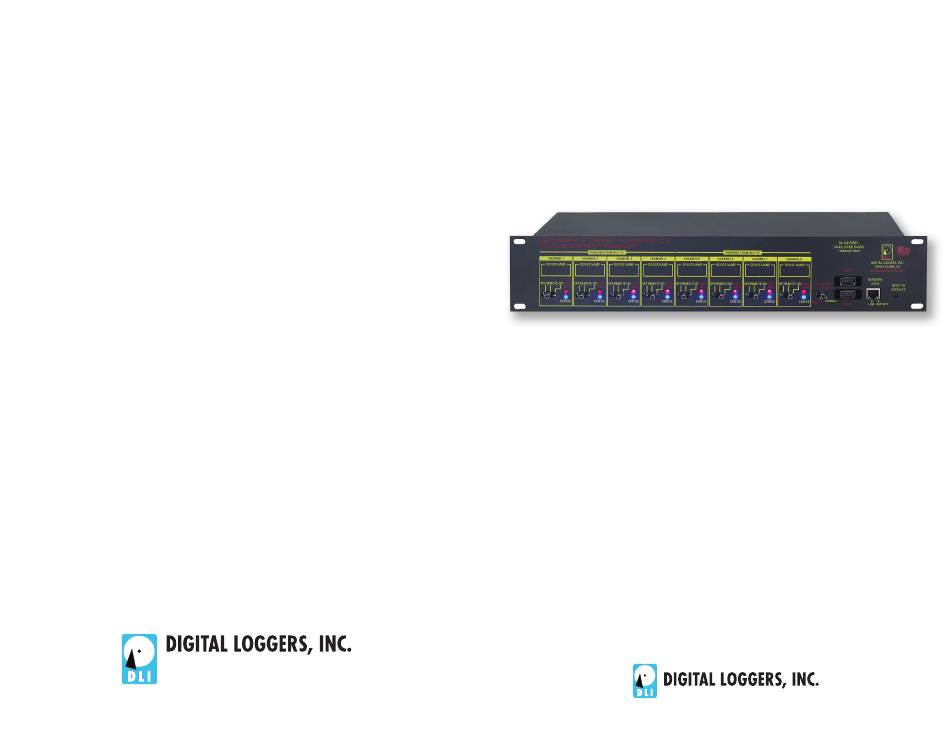

Ethernet Power Controller II USER’S GUIDE 2695 Walsh Avenue, Santa Clara, CA 95051 Tel: (408) 330-5599, Fax: (408) 541-8459 www.digital-loggers.com...
Page 2

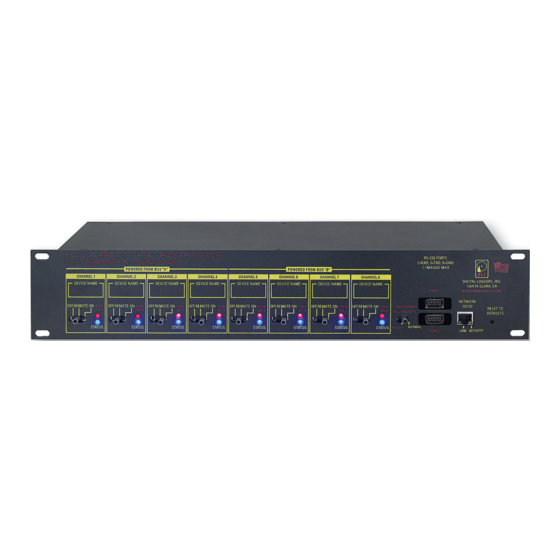

3URGXFW )HDWXUHV overloading. Redundant Power Supply Congratulations on your purchase. The Ethernet Power Controller II is Dual, redundant power supplies are included. The loss of either main a rack mount power switch used for remote control, automatic reboot, power circuit will not affect the power controller. Separate A/B power voltage, current, and power monitoring.
Protocol” and click the “Properties” button. Click the “Advanced” compatible with your network, a crossover cable may help button. Under the IP Address settings, click the “Add” button. Enter Ethernet Power Controller II www.digital-loggers.com Ethernet Power Controller II...
Page 4
The home page contains nine links to other pages. The first five are fixed internal links: Logout Logout ends the web session. A login is required to reconnect. Ethernet Power Controller II www.digital-loggers.com Ethernet Power Controller II...
Page 5
The power loss recovery mode setting has three settings which take effect after a power failure: 1. You can turn all outlets off (all systems will be switched off until manually turned on later) by checking the first box. Ethernet Power Controller II www.digital-loggers.com Ethernet Power Controller II...
Page 6
5 and 10 pings is recommended. The RTC page allows the administrator to set the internal real time clock. The clock may be set manually or synchronized to your local PC time. Ethernet Power Controller II www.digital-loggers.com Ethernet Power Controller II...
Page 7
The Outlet control page displays voltage and current on the A and B busses separately. Each of the four web meters acts independently. The design accuracy of the meters is +/- 2%. Ethernet Power Controller II www.digital-loggers.com Ethernet Power Controller II...
