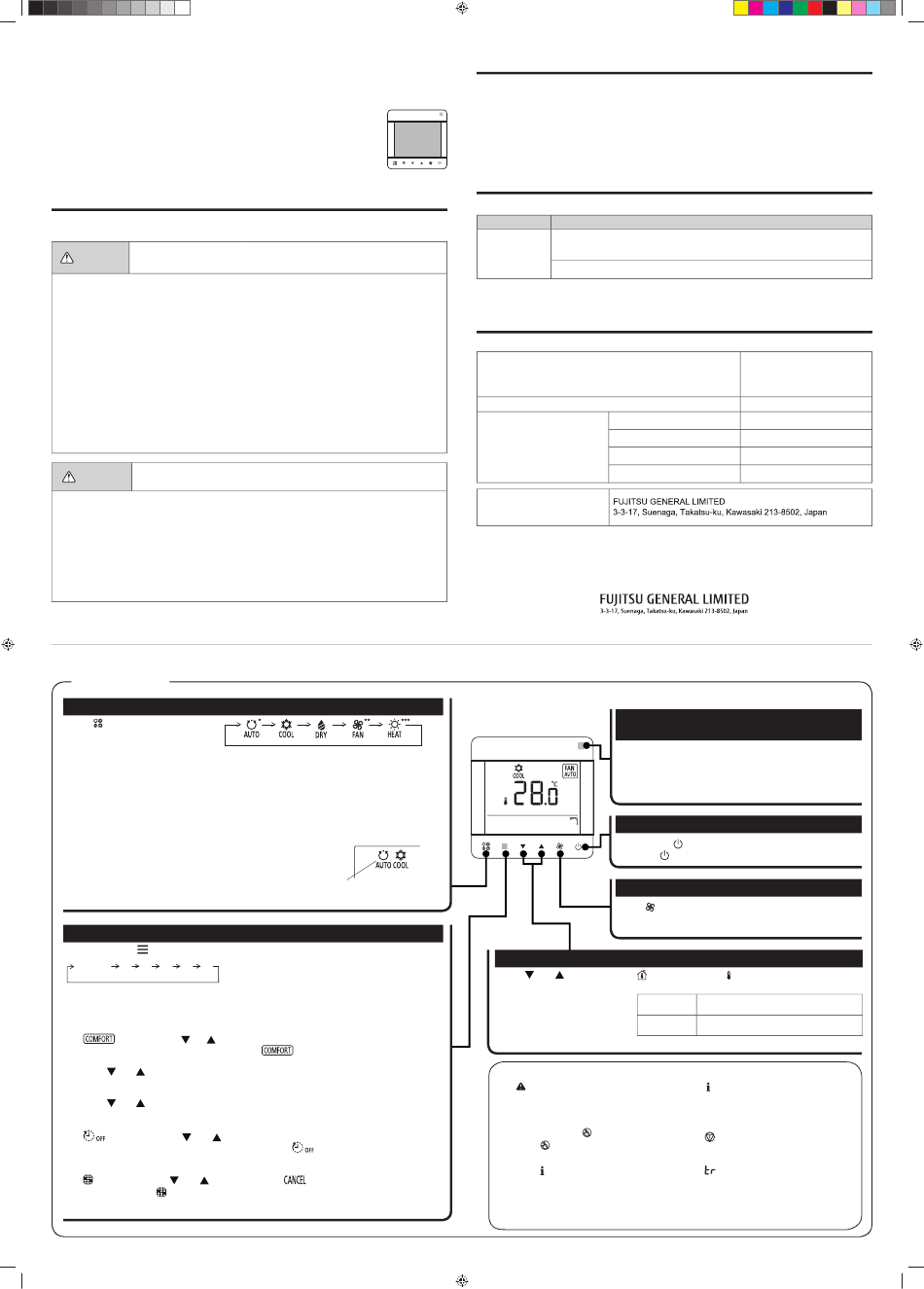

Fujitsu UTY-RCRYZ1 Operating Manual

REMOTE CONTROLLER
(WIRED TYPE)
OPERATING MANUAL
Keep this manual for future reference.
UTY-RCRYZ1
UTY-RCRGZ1
UTY-RCRXZ1
UTY-RCRGZ1K
Refer to the rating label for the serial number,
manufactured year and month.
SAFETY PRECAUTIONS
• To prevent personal injury, or property damage, read this section carefully before you use this unit, and
be sure to comply with the following safety precautions.
This mark indicates procedures which, if improperly performed, might lead to the
WARNING
death or serious injury of the user.
• In the event of a malfunction (burning smell,
etc.), immediately stop operation, turn off the
electrical breaker, and consult authorized
service personnel.
• Do not repair or modify any damaged cable by
yourself. Let the authorized service personnel to
do it. Improper work will cause an electric shock
or a fi re.
• When moving, consult authorized service
personnel for uninstallation and installation of
this unit.
• Do not touch with wet hands. It may cause an
electric shock.
• If children may approach the unit, take
preventive measures so that they cannot reach the
unit.
This mark indicates procedures which, if improperly performed, might possibly
CAUTION
result in personal harm to the user, or damage to property.
• Do not set vessels containing a liquid on this
unit. Doing so will cause heating, fi re, or electric
shock.
• Do not expose this unit directly to water. Doing so
will cause trouble, electric shock, or heating.
• Dispose of the packing materials safely. Tear
and dispose of the plastic packing bags so that
children cannot play with them. There is the
danger of suffocation if children play with the
original plastic bags.
OPERATION
OPERATION MODE
Touch [ ] button to select the operation
mode while in operation.
* A heat pump model that is not set up as an Administrative indoor unit cannot operate in the auto
modes.
** Fan cannot be selected for a heat pump model.
*** Heating operation cannot be performed in the "Cooling-only" models.
• If the priority mode is set to "Priority on Administrative indoor unit", the operating mode of other
indoor units except Administrative indoor unit will be controlled by an Administrative indoor unit.
• If the operating mode of Administrative indoor unit is set to "AUTO", "AUTO" is displayed in addition to the
indicator of current operating mode on other wired remote controllers except Administrative indoor unit. In
this case, operation of other indoor units is controlled by the Administrative indoor unit.
Ex.: When operating mode of the Administrative indoor unit is set
to "AUTO" while air conditioning setting. (The indication on
other wired remote controllers except Administrative indoor
unit).
MENU OPERATION
• Every time when [ ] button is touched, the setting screen changes in the following order.
Monitor
(1) (2) (3) (4) (5)
mode
button several times to return to monitor mode.
• A setting screen is not displayed if the indoor unit does not have the corresponding setting or if the
function is limited by the central controller.
(1) Comfort airfl ow setting
" " fl ashes. Touch [ ] or [ ] to specify whether the comfort airfl ow is enabled or not.
When the comfort airfl ow setting is enabled, the "
(2) Horizontal airfl ow direction setting
Touch [ ] or [ ] button to set the angle of horizontal airfl ow direction. When the horizontal airfl ow
direction setting is enabled, the setting state is displayed on the monitor screen.
(3) Vertical airfl ow direction setting
Touch [ ] or [ ] button to set the angle of vertical airfl ow direction. When the vertical airfl ow direc-
tion setting is enabled, the setting state is displayed on the monitor screen.
(4) OFF Timer setting
" " is fl ashes. Touch [ ] or [
3.0h/6.0h/12h]. When the OFF Timer setting is enabled, "
screen.
(5) Filter sign reset
" " is fl ashes. Touch [ ] or [
three seconds, and " " is cleared.
9373329657-01_OM_En.indd 1 9373329657-01_OM_En.indd 1
PART No. 9373329657 (En)
[Original instructions]
MADE IN CHINA
• Do not repair or modify by yourself. It may cause
a fault or accident.
• Do not use fl ammable gas near this unit. It may
cause a fi re from leaking gas.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
• Do not place electrical devices within 1 m of this
unit. It may cause malfunction or failure.
• Do not use fi re near this unit or place a heating
apparatus nearby. It may cause malfunction.
• Do not touch the switches with sharp objects.
Doing so will cause injury, trouble, or electric
shock.
When Administrative indoor unit
is set to "AUTO".
• After confi guring each setting, touch this button again to
confi rm the setting. If no action is made for 3 seconds,
the setting is confi rmed as well. After setting, touch this
" is displayed on the monitor screen.
] button to set the timer [0.0h (Release)/ 0.5h/1.0h/ 2.0h/
" is displayed on the monitor
] button to display " ". The Filter sign is reset after
OPERATING TIPS
Cooling / Heating priority
(Heat pump model only)
• If another indoor unit in the same system is already operating in the cooling mode or dry mode, heating
mode settings cannot be performed.
• An indoor unit that is set up as an Administrative indoor unit can operate in the auto mode.
• Administrative indoor unit:
Administrative indoor unit has priority for cooling and heating confi gurations.
TROUBLE SHOOTING
Before requesting service, perform the following checks:
Symptom
Doesn't operate
• Has there been a power failure?
at all.
• Has the indoor unit electrical breaker been cut off?
• It is being controlled centralized?
If the problem persists after performing these checks, or if you notice burning smells, or the LED lamp
fl ashes, immediately stop operation, turn off the electrical breaker and consult authorized service personnel.
SPECIFICATIONS
Model Name
Input voltage
Dimensions & Weight
Height
Width
Depth
Weight
Manufacturer
Instructions on heating are not applicable for the "Cooling-only" models.
Wireless remote controller signal receiving
section
The wireless remote controller can be used to operate the indoor
unit. The following operations can be done:
• Start/Stop
• Operation mode
• Vertical airfl ow direction
START / STOP
Each press of [
operating, "
FAN SPEED
Touch [
speed differs depending on the type of indoor unit.)
TEMPERATURE
Touch [ ] or [ ]] button to set
: Room temperature, : Set temperature
the temperature. (The temperature
Temperature setting range
setting should be considered a stan-
COOL/DRY/
dard value, and may differ somewhat
AUTO*
from the actual room temperature.)
* The lower limit of the setting temperature is different depending on the place of use.
Notes:
(1) " " is displayed if there is an error.
Stop operation immediately and contact
authorized service personnel.
(2) When a button is touched to change a
restricted setting, " " will fl ash.
When " " is displayed, this operation
cannot be set or changed.
(3) When " " is displayed, the air conditioner
might not suffi ciently cool the room in
cooling mode, or suffi ciently heat the
room in heating mode.
Problem
UTY-RCRYZ1
UTY-RCRGZ1
UTY-RCRXZ1
UTY-RCRGZ1K
DC 12 V
86 mm
86 mm
44 mm
135 g
• Fan speed • Temperature
• Horizontal airfl ow direction
• Filter sign reset
] button alternates operation and stop. When
" will light up.
] button to select the fan speed. (The available fan
18 to 30 °C (64 to 88 °F) or
20 to 30 °C (68 to 88 °F)
VRF system: 10 to 30 °C (48 to 88 °F)
HEAT
Other system: 16 to 30 °C (60 to 88 °F)
If " " does not turn off after a while,
contact authorized service personnel.
(4) The operations not available on the indoor
unit cannot be set.
(5) • " " is displayed when operation of
the air conditioner has stopped due to an
emergency.
• " " is displayed when the air
conditioner is in test run.
