Summary of Contents for BIMG METVISA CLMM.390
-
Page 2: Table Of Contents
INDEX Safety Information....................3 1.1 General warnings........................ 3 Technical Characteristics ..................4 2.1 Main Components ......................4 2.2 Technical Data........................5 Installation......................5 3.1 Arrangement of the Machine .................... 5 Machine Use ......................7 4.1 Utility........................... 7 4.2 Commands.......................... 7 4.3 Operating Procedures...................... -
Page 3: Safety Information
1. Safety Information 1.1 General Warnings • Cautions / precautions must be observed when installing, using, maintaining and discontinuing use of this equipment; • Before carrying out any operation (assembly, use (use), maintenance and reuse after prolonged use of the equipment), read the manual carefully; •... -
Page 4: Technical Characteristics

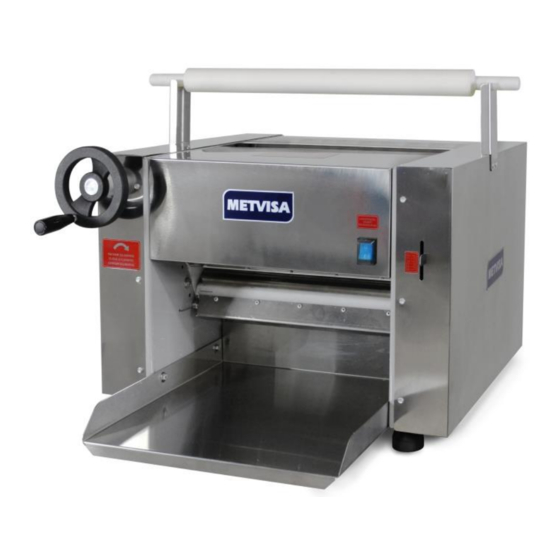

2. Technical Features 2.1 Main Components For the equipment described in this manual, safety in use, cleaning, maintenance and maximum hygiene are guaranteed by the design and special project for all parts and also by using stainless steel and other materials suitable for contact with food. The machine was built with the following features: •... -
Page 5: Technical Data
2.2 Technical Data Nominal Operational Rated weight Voltage Capacity Measurements* Model current (approx.) (kg of mass) Width x Height x Depth (mm) (kg) CLMM390110M604 660x540x720 63.0 12.0 CLMM390220M501 660x540x720 63.0 CLMM390220M502 660x540x720 63.0 CLMM390220M504 660x540x720 63.0 CLMM390220M604 660x540x720 63.0 * Height and depth measurements considered with the mixing roll. Noise level: 74 db. - Page 6 It is essential to make this manual available to the professionals who carry out the installation. For ease of transportation, the machine is packed with the low table, mixing roller holder and wheel handle crank disassembled. To mount the crank, it is necessary to thread it onto the wheel handle. The fastening of the mixing roller and the low table should be done using the washers and screws that come with the machine.
-
Page 7: Machine Use
ATTENTION! The installation and the place where the machine will be disposed must comply with the norms of risk prevention and safety at work (regulatory norm in force in your country). The manufacturer shall not be liable for any direct or indirect damages caused by non- compliance with these standards and other instructions presented in this manual. -
Page 8: Operating Procedures
View the description of each command below: • On/Off Button - Used to turn the machine on and off. In position "1" it turns the device on, and turns it off in position "0". • Wheel Handle - This has the function of regulating the distance between the rolling cylinders. It should be rotated clockwise to close the cylinders and counterclockwise to open them. - Page 9 ATTENTION! If it is rotating counterclockwise, check that the electrical connection is reversed with respect to the electrical wiring diagram (item 9 - Annexes) or contact your nearest authorized service center. • Operation: The machine can only be operated after verifying its ideal positioning, if the low table is correctly fitted and fixed by the screws, according to the instructions in item 3.1 (Arrangement of the Machine).
-
Page 10: Cleaning And Maintenance
ATTENTION! Do not add all of the mixture at once with the cylinders closed. If you still notice that the machine cannot process the mixture or that it is not processing, decrease the amount. Only increase the mixture gradually so as not to impair the motor speed and performance, as well as the working life of the machine. - Page 11 The removable part (mixing roller) must be removed from the machine and washed with water and neutral soap. The remainder of the machine should be cleaned as many times as possible to prevent the residue of the mixture from drying out and sticking to the parts. For cleaning, dilute soap or mild detergent in warm water and apply with a damp, soft cloth on the cylinders and the outside of the machine.
-
Page 12: Annexes
6. ANNEXES Electrical Schematic Motor 60 Hz Voltage 110 V or 220 V... -
Page 13: Electrical Schematic 50 Hz - Voltage 220 V
Electrical Schematic Motor 50 Hz Voltage 220 V NOTE: In the above Electrical Schematic, white wires are represented by pink. -
Page 14: Exploded View Drawing
Exploded View Drawing... - Page 15 Exploded View Drawing...
-
Page 16: List Of Replacement Parts
Replacement parts Position Code Description Qty. PEP028 PVC Foot CRC356 Welded Right Side ARL003 Flat Washer MSA015 Low Table PTC160 Welded Left Side Guard PTC161 Welded Right Side Guard PTC155 Front Guard TAP154 Rear Cover with Reinforcement RBT014 Rivet CLH013 Chute MTE245 Electric Motor 1 HP 60 Hz 220 V... - Page 17 Replacement Parts Position Code Description Qty. CRT015 Chain MOL009 Stretcher Spring CHE016 On/Off button SBT416 Plastic Roller Support SBT360 Stainless Steel Cable Gland Support - TCE021 SBT361 Stainless Steel Cable Gland Support - TCE022 TCM019 Cylinder Backboard MOL008 Tipper Locking Spring RLO018 Mixing Roller APE005...
- Page 18 Notes...
- Page 20 IMG-BRASIL Gastronomy Machinery Industry Ltda. CNPJ 11.193.347/0001-14 - CREA 131726-3 Rod. Antônio Heil – KM 23 Nº 5825 – Limoeiro CEP 88352-502 - Brusque – SC – Brazil Phone/fax. +55 47 3251-5555 - Site: www.metvisa.com.br E-mail: sac@metvisa.com.br - export@metvisa.com.br - export2@metvisa.com.br...
