HK Instruments SIRO Series Installation Instructions

INTRODUCTION
Thank you for choosing an HK Instruments Siro series indoor air
quality transmitter. The Siro series transmitters are intended for use
in building automation systems in the HVAC/R industry.

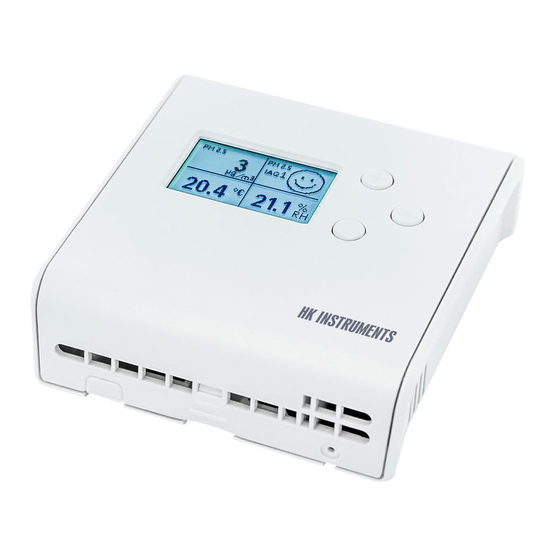

Siro is an indoor air quality transmitter with a modern design. The
transmitter is available with several optional air quality sensors. The
modular device can be equipped with CO
(Volatile Organic Compounds) measurements or alternatively PM
(Particulate Matter) measurement and in addition temperature and
humidity measurements. It offers easy installation and adjustment,
several different model options and various output signals that are
configurable separately for each measurement parameter.
The Siro series devices are available with user interface that includes
LCD display and buttons making the configuration of the device quick
and easy. An external configuration tool is available for devices with-
out user interface. Siro utilizes the industry standard NDIR measure-
ment principle with self-calibrating ABC logic
APPLICATIONS
Siro series devices are commonly used to monitorand control:
• indoor air quality in offices, public spaces, meeting rooms and
classrooms
• CO and VOC concentration to regulate demand-controlled
2
ventilation and to keep the indoor air quality in a good level
SPECIFICATIONS
Performance
Measurement ranges:
CO : 0–2000 ppm / 400–2000 ppm
2
(selectable via jumper)
VOC: CO₂eq: 400–2000 ppm
TVOC ppm: 0–30.0 ppm
TVOC µg/m
IAQ index: 1–5 (UBA rating)
PM1/PM2.5/PM10: 0–50 μg/m
(selectable via jumper)
IAQ index: 1-5 (WHO rating)
Temperature: 0...50 °C
Relative humidity: 0–100 %rH
Accuracy:
CO : ±33 ppm + 3 % of reading (typical),
2
additional ±60 ppm for first weeks
VOC*: 15 % of reading (typical)
*VOC sensor is tuned for typical IAQ Mix of 22 VOCs as
defined by Mølhave et al. (1997)
PM:
0...100 µg/m3:
PM2.5: ±15 µg/m³ (at 25 ⁰C ±5 ⁰C)
PM1/PM10*: ±25 µg/m³ (at 25 ⁰C ±5 ⁰C)
100...1000 µg/m3:
PM2.5: ±15 % (at 25 ⁰C ±5 ⁰C)
PM1/PM10*: ±25 % (at 25 ⁰C ±5 ⁰C)
*PM1 and PM10 values are calculated from PM2.5
measurement reading with the default particle distribution.
Temperature: ±0.5 ⁰C (typical at 20 ⁰C)
Relative humidity: ±2.4 %rH (typical at 20 ºC, 30 %rH)
Copyright HK Instruments 2021
Indoor air quality transmitters
Siro series
concentration and VOC
2
for CO measurement.
TM
2
Technical Specifications
Media compatibility:
Dry air or non-aggressive gases
Measuring units:
CO₂:
VOC:
: 0–10000 µg/m PM:
3 3
Temperature:
Relative humidity:
³ ³
/ 0–500 μg/m Measuring element:
CO :
2
Non-dispersive infrared (NDIR)
VOC:
Complementary Metal Oxide Semiconductor
(CMOS)
PM:
Laser-based light scattering particle sensing
Temperature:
Integrated to CMOS
Relative humidity:
Thermoset polymer capacitive sensing element
Calibration:
Automatic self-calibration ABC Logic
measurement
Environment:
Operating temperature: 0...50 °C
Storage temperature: -20...70 °C
Humidity: 0 to 95 %rH, non condensing
Physical
Dimensions:
Case: 95 x 103 x 30 mm
(width x height x depth)
Weight:
130 g
WARNING
• READ THESE INSTRUCTIONS CAREFULLY BEFORE
ATTEMPTING TO INSTALL, OPERATE OR SERVICE THIS DEVICE.
• Failure to observe safety information and comply with instructions
can result in PERSONAL INJURY, DEATH AND/OR PROPERTY
DAMAGE.
• To avoid electrical shock or damage to equipment, disconnect
power before installing or servicing and use only wiring with
insulation rated for full device operating voltage.
• To avoid potential fire and/or explosion do not use in potentially
flammable or explosive atmospheres.
• Retain these instructions for future reference.
• This product, when installed, will be part of an engineered system
whose specifications and performance characteristics are not
designed or controlled by HK Instruments. Review applications
and national and local codes to assure that the installation will
be functional and safe. Use only experienced and knowledgeable
technicians to install this device.
• PM concentration to measures the size and amount of particulates
in the indoor air for example to assess the performance of air filters
• temperature and humidity in HVAC/R environment
ppm
CO eq: ppm
2
³
TVOC: ppm, µg/m
PM1/PM2.5/PM10: µg/m
°C/°F
%rH
for CO
TM
www.hkinstruments.fi
Mounting:
2 screw holes slotted, distance c/c 60 mm
Materials:
Case: ABS
Protection standard:
IP20
Display (optional)
Monochrome LCD, 38 x 23 mm
³
Electrical connections:
8-pin spring loaded terminal block
0.2...1.5 mm² (16-24 AWG)
Electrical
Input:
24 VAC or VDC, ±10 %
Power consumption: 2 W max + 25 mW for each
voltage output or 50 mW for each current output
Outputs:
4 outputs, have to select voltage or current
Voltage outputs:
0–10 V
2–10 V / 0–5 V (optional, display or
configuration tool required)
Current output:
4–20 mA (optional)
2
Output signal limits:
Voltage outputs: R > 1 kΩ
Current output: R > 20 Ω, R < 500 Ω
Conformance
Meets requirements for CE marking:
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU
COMPANY WITH
MANAGEMENT SYSTEM
CERTIFIED BY DNV GL
= ISO 9001 = ISO 14001 =
INSTALLATION
INSTRUCTIONS
RoHS 2
2011/65/EU
Installation version 1.0 2021
