Spectrum Industries XLT-12 Quick Start Manual

Instructions:
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for choosing Spectrum products!
(1) 052577 (10) 052605
Handle Gusset 1/4-20 x15mm JC Bolts
(2) 055001 (2) 041943
Handle Mount 1/4-20 Locknut
(36) 052608 (4) 052597-8
3/4" x 5" Velcro Straps 2" Velcro Strips

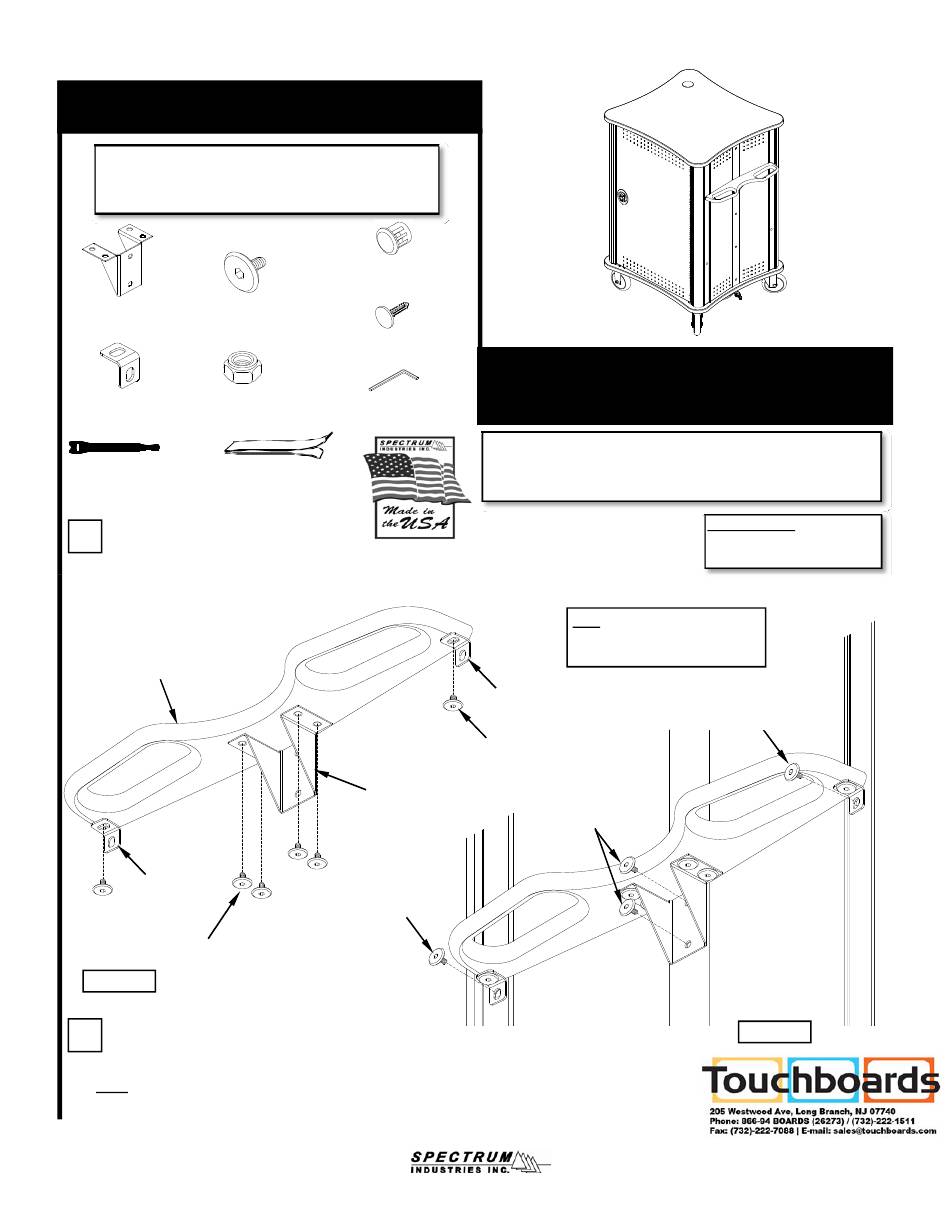

1.
Handle Assembly
A. Attach the handle gusset and handle mounts to the bottom of the A Attach the handle gusset and handle mounts to the bottom of the
handle using 1/4-20 x 15mm JC Bolts as shown in Figure 1.
Do not tighten completely.
Handle
Handle
Mount
1/4-20 x 15mm
JC Bolts
Figure 1
2.
Handle Attachment
A. Determine which side of the lectern you would like the handle to be mounted, and open both doors.
Note: If the unit is to be placed against a wall, install the handle opposite the hinges.
B. Attach the handle assembly to the side of the lectern with (4) 1/4-20 x 15mm JC bolts. As shown in Figure 2.
The two outer JC bolts will require 1/4-20 locknuts-these will need to be secured from inside the unit.
C. Tighten all bolts securely.
(8) 044555
3/8" Hole Plug
(2) 035252
Pinetree Button
(1) 025039
4mm Hex Wrench
Before you begin, please make sure all parts and proper quantities are
included. Any parts damaged during shipment must be reported within
15 days of receipt. To report information regarding damages or if you
have any questions, please call 1-800-235-1262.
Handle
Mount
1/4-20 x 15mm
JC Bolts
Handle
Gusset
1/4-20 x 15mm JC Bolt
(attach locknut from
inside lectern)

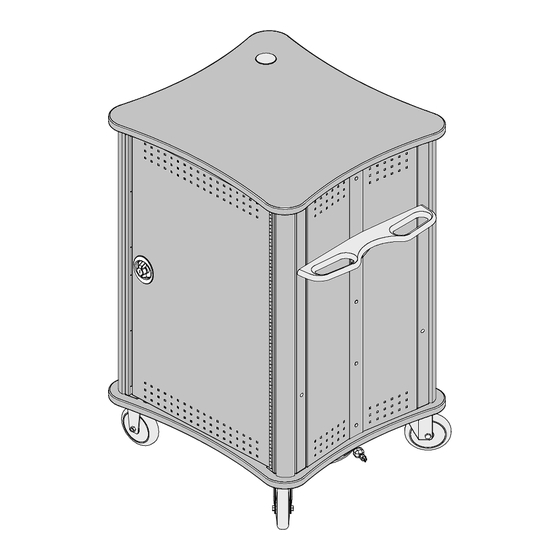

XLT-12 Laptop Cart
#55310
Tools Required:
4mm hex wrench (included)
7/16" or adjustable wrench
Note: It is critical that all joint
connectors be used in the
attachment of the handle.
1/4-20 x 15mm JC Bolt
(attach locknut from
1/4-20 x 15mm
JC Bolts
inside lectern)
Figure 2
0106619X Page 1 of 3
