Instructions:
(72) 052608
Velcro Wrap
(24) 052597-8
(4) 044555
2" Velcro Hook & Loop
Hole Plug
(2) 035252
(1) 052577B
Pinetree
Handle Gusset
Button
DESIGNED FOR INDOOR USE ONLY
Spectrum carts and lecterns are designed and constructed for indoor
use only. Moving or using outdoors or on excessively rough
surfaces may cause damage to the cart or casters and may void the
warranty. If an outdoor application is desired, please contact us to
discuss potential custom design solutions.
Cord Reel:
1.

Connect Plugs

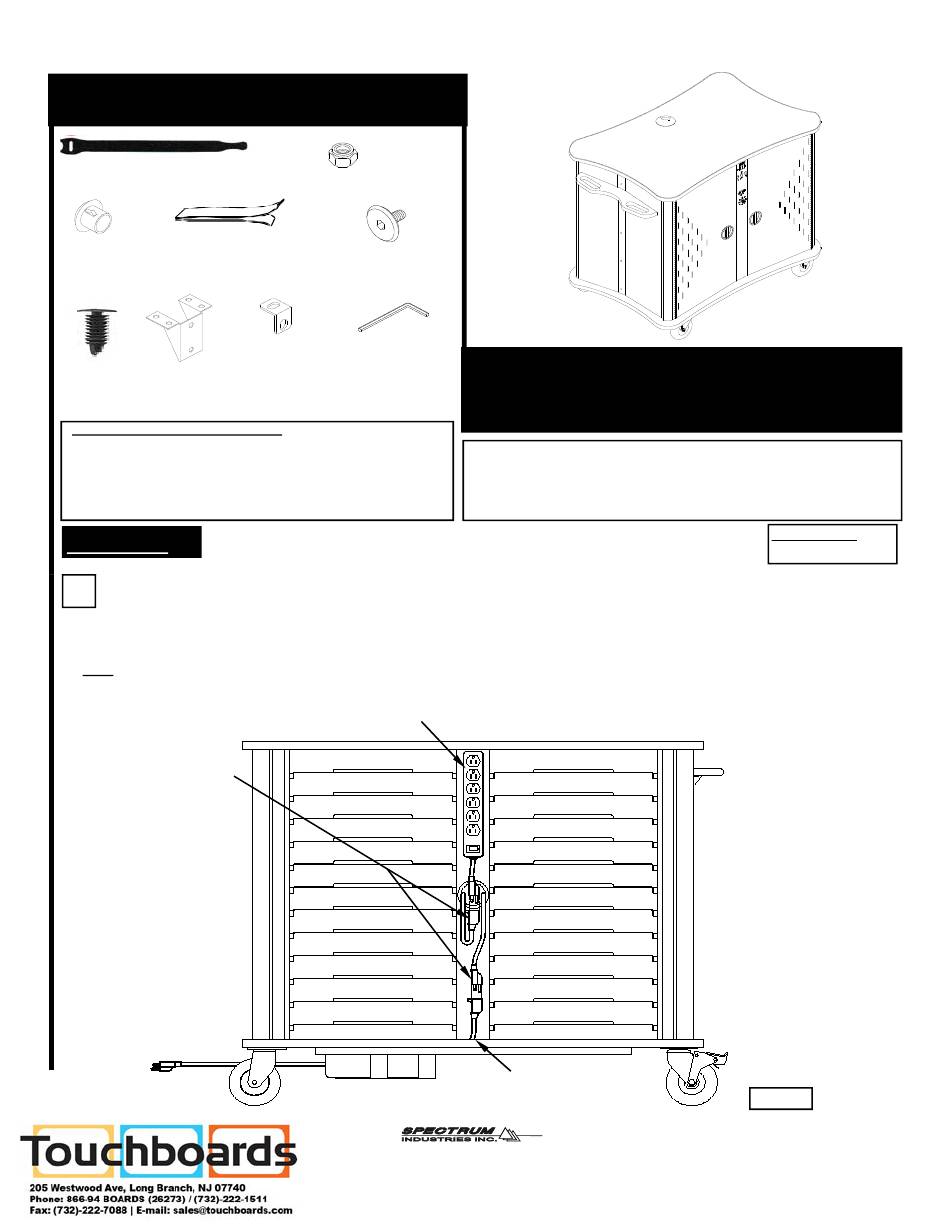

A. Once the unit is unloaded from the skid, insert the cord reel plug through the lower grommet. Figure 1.
B. Plug the Cycle Charger plug into the Cord Reel power plug as shown.
C. Plug the second Cycle Charger plug into the Power Strip as shown. Additional accessories can now be powered from the Power Strip.
Note: The Master Switch on the Cycle Charger needs to be switched to the 'AUX' position to use the Power Strip.
Power Strip (use for additional accessories)
Power Plugs from
Cycle Charger
To wall plug
(2) 037282
1/4-20 Nut
Fiberlock
(10) 052605
1/4-20 x 15mm JC Bolts
(2) 055001
(1) 025039
Handle Mount
Allen Wrench
Cord Reel

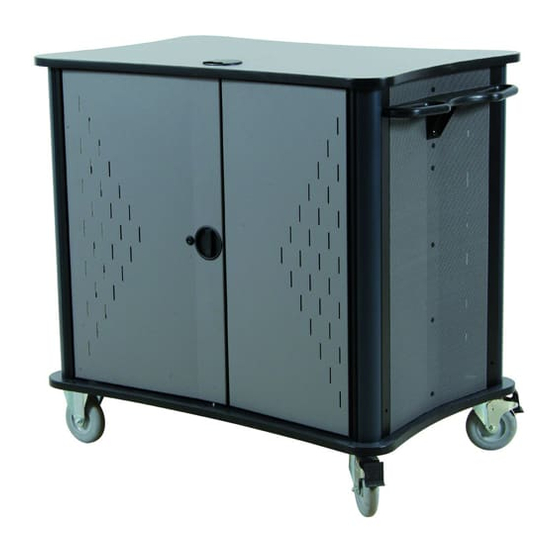

LT-24 Laptop Cart (H3)
#55174
Before you begin, please make sure all parts and proper quantities are included.
Any parts damaged during shipment must be reported within 15 days of receipt.
To report information regarding damages or if you have any questions, please
call 1-800-235-1262.
Rear View
From Cord Reel
(through lower grommet)
Tools Required:
Adjustable Wrench
Figure 1
053465XR6 Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT-24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spectrum Industries LT-24

  • Page 1 Velcro Wrap (24) 052597-8 (4) 044555 2" Velcro Hook & Loop (10) 052605 Hole Plug 1/4-20 x 15mm JC Bolts (2) 055001 (1) 025039 LT-24 Laptop Cart (H3) Handle Mount Allen Wrench (2) 035252 (1) 052577B Pinetree Handle Gusset #55174 Button...
  • Page 2 Handle Assembly: Attach Handle A. Attach the Handle Gusset and Handle Mounts to the bottom of the Handle using 1/4-20 x 15mm JC Bolts. Figure 2. Handle Handle Mount Handle Gusset 1/4-20 Locknut Note: It is critical that all JC Bolts be used in Figure 2 the attachment of the Handle.
  • Page 3 Cable Management Suggestions: Plug charger into outlet Instructor-Side Attach 1 of the Velcro wraps provided, to bundle cords and cables together. Route cables leaving enough slack for pulling tray in and out on the student side, and choose a set of slots to anchor cable(s).
  • Page 4 Timer Instructions: The LT-24 Cart Timer is a 240 minute timed switch that provides accurate timing between 15 - 240 minute increments. It is easy to set and operate. The cycle timer is located on the Instructor-side of the unit. The timer has 24 outlets Master which are controlled by the red lighted master switch.
