U-Line H-8263 Manual

H-8263

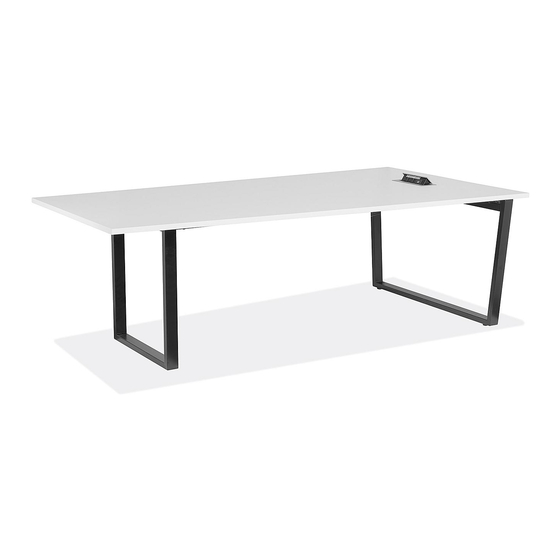

96 x 48" MEDIA
CONFERENCE TABLE
TOOLS NEEDED
Allen Wrench Phillips
(Included) Screwdriver
A B
Bolt x 5 Bolt x 12
M6 x 45 mm M6 x 15 mm
NOTE: Check that all parts are included. The
four M3.5 x 10 mm screws (F) come packaged
with the power center.
NOTE: Table also includes flat bracket and
six extra M6 x 15 mm bolts for the option to
connect two tables.
1. Fit support rail (1) over corresponding bracket on
narrow leg (2). Secure using four M6 x 12 mm bolts
(D). Repeat to attach three remaining support rails.
(See Figure 1)
2. Attach all support rails (1) to wide leg (3) using four
M6 x 12 mm bolts (D) per rail. (See Figure 1)
NOTE: Do not fully tighten bolts until tabletop is
attached.
Follow hole patterns
on frame as shown.
3
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
Three Person Assembly
Recommended
C
Bolt x 20
M6 x 60 mm
ASSEMBLY
2
1
D
PARTS
D E
Bolt x 32 Flat Bracket x 1
M6 x 12 mm
3. Place tabletop (4) on assembled frame. Attach
tabletop (4) to narrow leg (2) using two M6 x 45 mm
bolts (A). Secure wide leg (3) using three M6 x 45 mm
bolts (A). (See Figure 2)
4. Attach tabletop (4) to brackets on legs using two
M6 x 15 mm bolts (B) per bracket. (See Figure 2)
5. Secure tabletop (4) to support rails (1) using five
M6 x 60 mm bolts (C) per rail. (See Figure 2)
Figure 2
6. Tighten bolts (D) installed in Steps 1 and 2 with Allen
wrench.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
F
Screw x 4
M3.5 x 10 mm
4
2
3
A
B
G
Adhesive-Backed
Cable Clip x 4
1
C
C
0421 IH-8263
