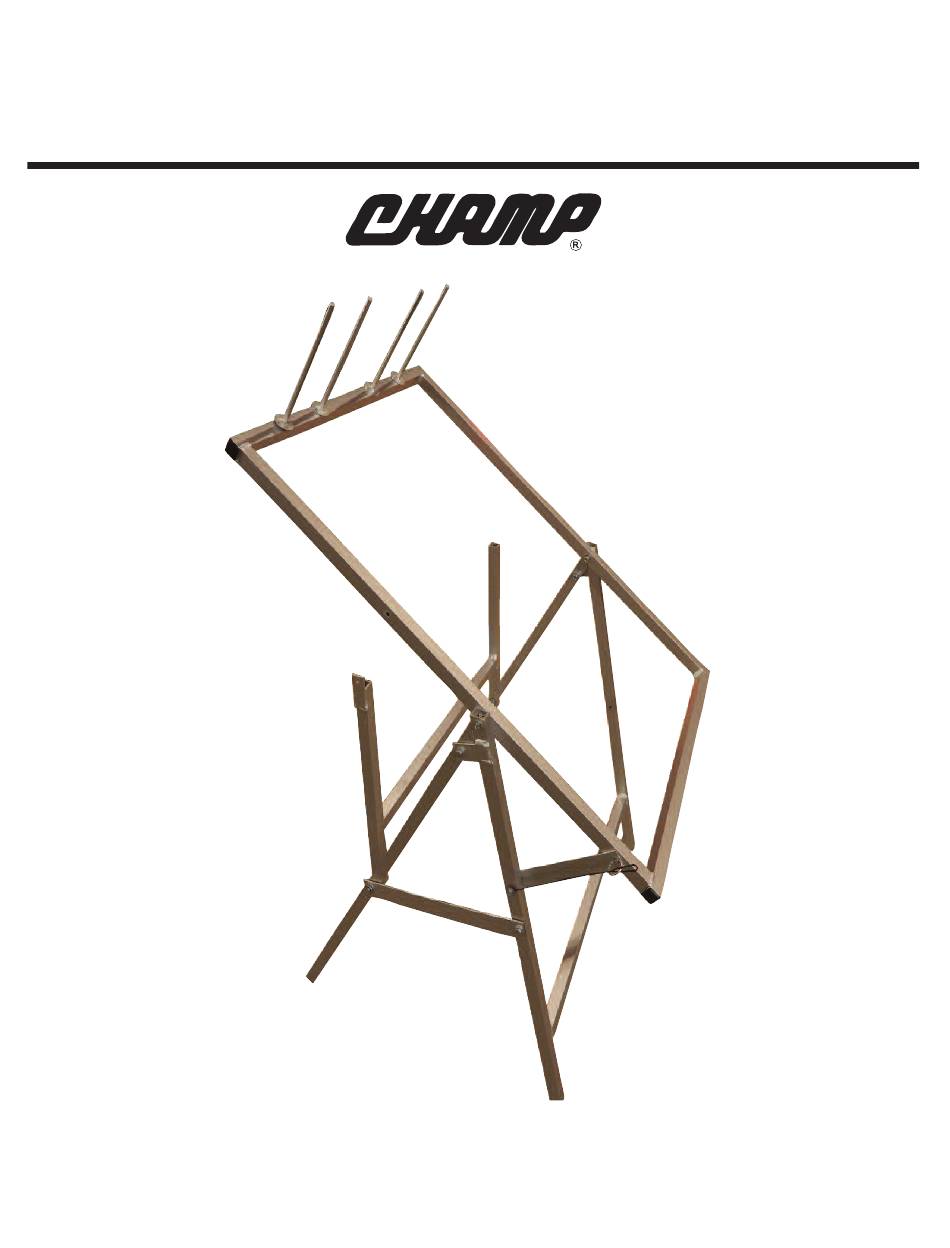

Champ 6255 Assembly Instructions

Aluminum panel bench

Download this manual

Champ Aluminum Panel Bench

Made In USA

Auto Body Toolmart

Champ Frame Straightening Equipment, Inc.

2 5 4 5 M i l l e n n i u m D r. , E l g i n , I L 6 0 1 2 4 ( 8 0 0 ) 3 8 2 - 1 2 0 0

w w w. a u t o b o d y t o o l m a r t . c o m

Page 1 Auto Body Toolmart Champ Frame Straightening Equipment, Inc. 2 5 4 5 M i l l e n n i u m D r. , E l g i n , I L 6 0 1 2 4 ( 8 0 0 ) 3 8 2 - 1 2 0 0...
Page 2 6255 comes partially pre-assembled. Unfold the legs and attach the support bar. Support Bar Line up the holes Slide bolt through support bar and leg Support Bar Fasten bolt with washer and nut This is how it should look once the support bar is attached.
Page 3 Attaching Arm For Angled Table Top Align the holes of the support bar and Slide the attached pin through This is how the angled top table top the holes to secure will look...
