Gardener's 8599950 Quick Start Manual

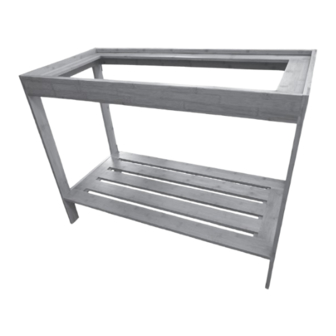

Stand for Low Bamboo Grow Light
Parts List
Frame Assembly
(1) TOP PANEL
(2) SIDE PANELS
(2) RAILS
(1) SHELF
(4) WOODEN DOWELS
(8) CROSS DOWEL
(8) BOLTS
HEX KEY included
Assembling the Frame
NOTE: Before beginning assembly, check the predrilled holes in the wood and
clear out any debris. Do not tighten the BOLTS completely until the entire FRAME is assembled.
1. Insert the WOODEN DOWELS into the top holes on the inside corners of both SIDE PANELS (Fig. 1). NOTE: The bottom
of the SIDE PANEL has feet.
2. Using Fig. 1 as a reference, line up a RAIL with a SIDE PANEL, positioning
it so the groove is closer to the top. Choose a BOLT and CROSS DOWEL to
use for the next step. Important: To make sure all of the pieces go together
smoothly, test to make sure the BOLT fits through the holes in the SIDE
PANEL, RAIL, and CROSS DOWEL (Fig. 2). With the CROSS DOWEL,
sometimes the threads on one side line up the with the BOLT threads
better than the other side, so make sure to try inserting the BOLT into both
sides of the CROSS DOWEL.
3. Place a CROSS DOWEL fully into the opening in the RAIL face up (Fig. 1).
Make sure the hole in the DOWEL is lined up with the hole in the end of
the RAIL. Slide the WOODEN DOWEL in the SIDE PANEL into the top hole in the RAIL.
4. Place a BOLT through the holes in the SIDE PANEL, RAIL, and CROSS DOWEL as shown in Fig. 1. Use the HEX KEY to secure it into
place. NOTE: If the BOLT won't screw into the DOWEL when it is fully insert into the hole, try holding the CROSS DOWEL flush with
the surface of the RAIL (Fig. 3). One of these two placements should allow the BOLT to screw into the CROSS DOWEL.
5. Repeat Steps 2-4 to attach a RAIL to the other corner on the same SIDE PANEL.
6. Slide the TOP PANEL into the grooves on the RAILS (Fig. 4). Then repeat Steps 2-4 to attach the remaining SIDE PANEL to the open
ends of the RAILS.
Figure 2
SIDE
BOLT
PANEL
BOLT
#8599950
Cross Cable Assembly
(4) ANGLE BRACKETS
(8) SCREWS
(4) LARGE BANJO SCREWS
(2) CABLES
BOLT
CROSS DOWEL
RAIL
8% of our profits
Learn more at gardeners.com/
Figure 1
groove
RAIL
Figure 3
over please
If the BOLT won't screw in when
the CROSS DOWEL is fully
inserted in the hole, try it again
when the CROSS DOWEL is flush
with the surface of the RAIL.
go back to our communities.
FoRCE-FoR-GoOD
1-800-876-5520 • gardeners.com
info@gardeners.com
SIDE PANEL (top corner)
CROSS DOWEL
Figure 4
SIDE PANEL
CROSS DOWEL
RAIL
TOP PANEL
WOODEN DOWEL
BOLT
RAIL
1354G Rev 01/20
