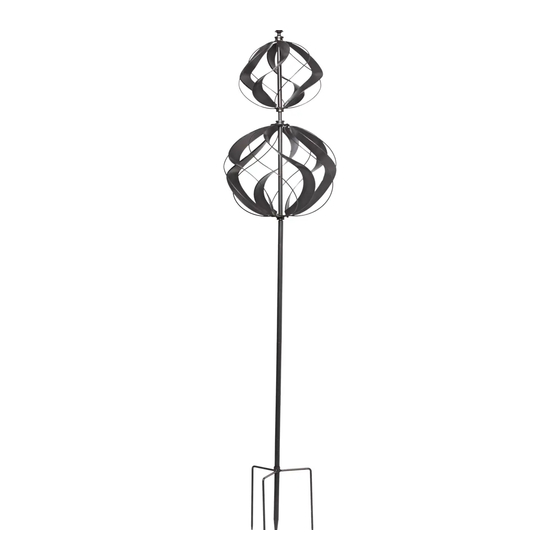

Double Sphere Wind Spinner
This Wind Spinner is a great way to draw attention to your yard. The spinning
spheres provide double the movement and make for a fun display.

Parts List

(1) Base Pole with Stake
(1) Footed Stake Support
(2) Center Poles
(1) Sphere Support
(3) Large Sphere Pieces
(1) Small Sphere
(6) Bolts
NOTE: Assembly is easiest with two people.
Step 1. Select a location to place your Wind
Spinner that is away from children's play
areas. Important: The Wind Spinner must
be installed in firm soil. If you have loose
or sandy soil, we recommend securing it in
concrete.
Step 2. Slide the Footed Stake Support onto the
Base Pole and position it so the cutout sits
over the attached Stake (Figure 1).
Step 3. Screw the Center Poles together, then
screw them on top of the Base Pole (Figure 1).
Step 4. Examine the top and bottom of a Large
Sphere Piece to find the small pin that sticks
out (Figure 2, other side). Slide the pin
through one of the small holes in the bottom
of the Sphere Support, then line up the holes
in both the top and bottom of the Piece with the larger ones on the Support.
Use your Phillips Screwdriver to place Bolts through both sets of holes.
Repeat to attach the remaining 2 Large Sphere Pieces.
#8598597

Tools required

Phillips screwdriver

Assembly

Figure 1
Center
Poles
Footed
Stake
Support
Base Pole
with Stake
over please
1189V Rev 10/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8598597 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gardener's 8598597

  • Page 1 Piece with the larger ones on the Support. Use your Phillips Screwdriver to place Bolts through both sets of holes. Repeat to attach the remaining 2 Large Sphere Pieces. over please #8598597 1189V Rev 10/18...
  • Page 2 assembled Large Sphere Figure 2 Large Sphere Piece Bolt Sphere Support (underside) Figure 3 Step 5. Screw the Large Sphere on top of the Center Small Sphere Pole and the Small Sphere on top of the Large Sphere (Figure 3). Step 6.
