RITE-HITE Wheel-Lok GWL-2300 Installation Manual

Vehicle restraint
Hide thumbs Also See for Wheel-Lok GWL-2300:

Advertisement

Quick Links

Download this manual

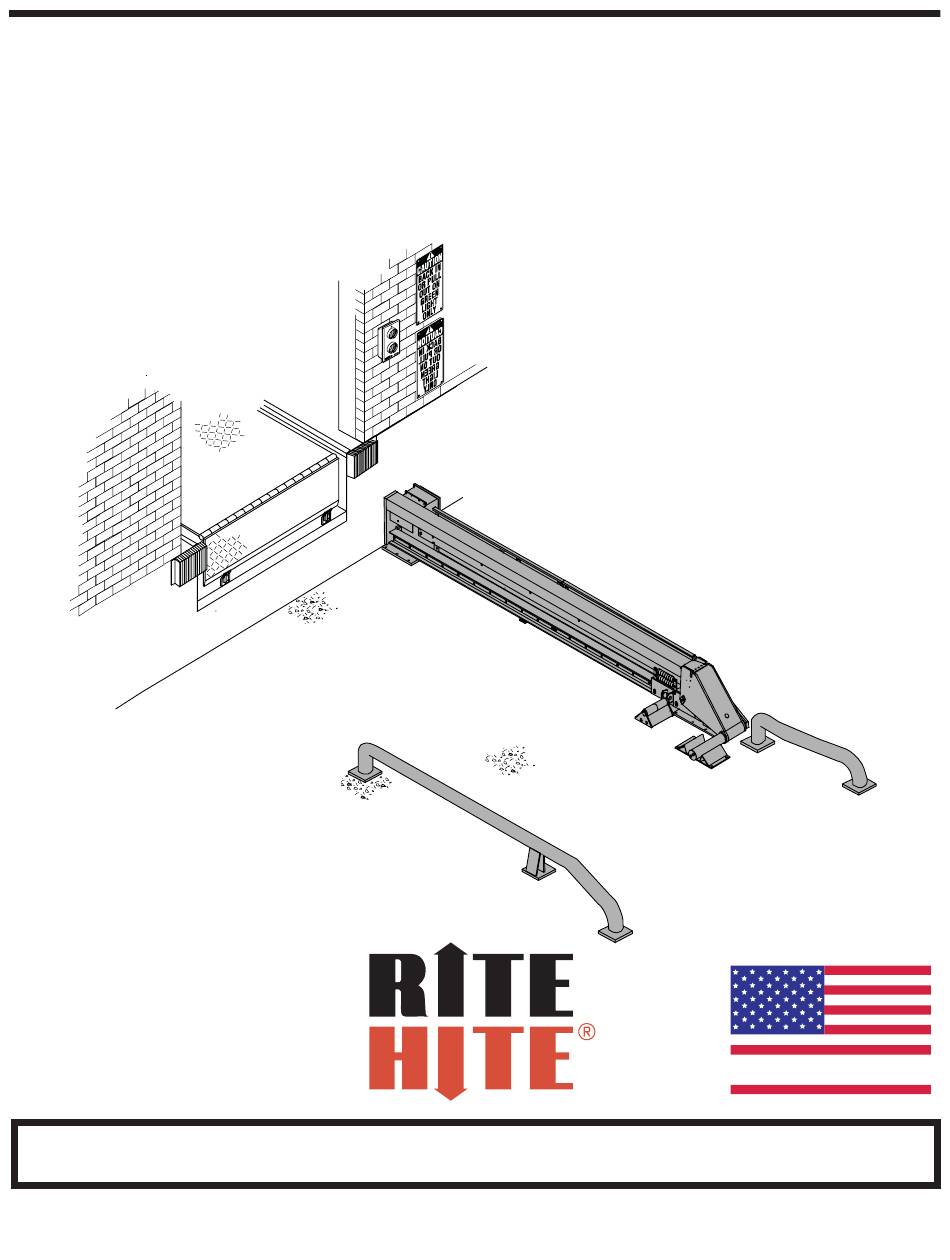

GWL-2300 Wheel-Lok
This Manual Covers Restraints Built After Serial Numbers:
GW231001 and up
PRINTED IN U.S.A.
RITE-HITE
PRINT SHOP
Vehicle Restraint
Installation Manual
TM
MADE IN U.S.A.
PUBLICATION NO. 1203
NOVEMBER 2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wheel-Lok GWL-2300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RITE-HITE Wheel-Lok GWL-2300

Summary of Contents for RITE-HITE Wheel-Lok GWL-2300

  • Page 1 GWL-2300 Wheel-Lok Vehicle Restraint Installation Manual MADE IN U.S.A. This Manual Covers Restraints Built After Serial Numbers: GW231001 and up PRINTED IN U.S.A. PUBLICATION NO. 1203 RITE-HITE PRINT SHOP NOVEMBER 2008...
  • Page 2 ® Your local RITE-HITE representative provides a Planned Maintenance Program (P.M.P.) which can be fitted to your ® specific operation. Call your local representative or the RITE-HITE Corporation at 414-355-2600. ® The RITE-HITE products in this manual are covered by one or more of the following U.S. patents: 4,865,507;...
  • Page 3 RITE-HITE ® Corporation does not recommend any particular lockout device, but recommends the utilization of an OSHA approved device (refer to OSHA regulation 1910.147). RITE-HITE ® Corporation also recommends the review and implementation of an entire safety program for the Control of Hazardous Energy (Lockout/Tagout). These regulations are available through OSHA publication 3120.
  • Page 4 20 amp feeder circuit per the current N.E.C. Paragraph 6. Fill and bleed hydraulic system. #430-53. 7. Test operation. WHEN IN DOUBT, CALL YOUR LOCAL RITE-HITE REPRESENTATIVE OR RITE-HITE AT (800) 456-0600. 8. Install springs and spring retention hardware. INSPECT COMPONENTS Open and inspect all materials.
  • Page 5 3. The GWL-2300 vehicle restraint can be installed and shimmed up to 1" without modification. If greater than 1" of shimming is necessary, longer anchors and trigger bridge plate will be required. Please consult RITE-HITE. Pub. No. 1203 - November 2008...
  • Page 6 Assembly Shims must fully support the mounting plate and are secured in place with the mounting anchors. Use the holes in the mounting plate as a drilling guide. Consult RITE-HITE Applications where more than 1" of shimming Shims is required.
  • Page 7 RITE-HITE ® GWL-2300 Installation Manual INSTALLATION INSTRUCTIONS CONT. LOCATE THE CENTERLINE POSITION FRAME 1. Secure a 20' length of string at the lower right edge 1. Remove side covers from frame assembly prior to of the dock leveler pit at the dock face. Measure out positioning and anchoring.
  • Page 8 RITE-HITE ® GWL-2300 Installation Manual INSTALLATION INSTRUCTIONS CONT. INSTALL WHEEL GUIDES NOTE If there is another loading dock on the right side of the GWL-2300 vehicle restraint installation and this position does not have wheel guides, it is required to install a protective wheel guide.
  • Page 9 (a) or section (c) for a grounding codes. electrode system. If the incoming electrical power for the GWL-2300 When in doubt, call your RITE-HITE representative vehicle restraint is taken from a nearby electrical or RITE-HITE at (800) 456-0600 appliance, i.e., overhead door opener, verify that the...
  • Page 10 Press diagnostic button inside control box to exit FILL mode. If light sequence differs from what is described above, check the electrical installation. If the situation can not be resolved, call RITE-HITE for assistance. NEVER leave the job site with the GWL-2300 vehicle...
  • Page 11 RITE-HITE ® GWL-2300 Installation Manual INSTALLATION INSTRUCTIONS CONT. INSTALL SPRINGS AND SPRING RETENTION HARDWARE Install springs. See Figure 9. Install retention hardware. See Figure 9. Retention Hardware FIGURE 9 - INSTALL SPRINGS AND HARDWARE The GWL-2300 vehicle restraint should now be installed properly and ready for use.
  • Page 12 RITE-HITE ® in writing. In the event of any defects covered by this warranty, RITE-HITE ® will remedy such defects by repairing or replacing any defective equipment or parts, bearing all the costs for parts, labor, and transportation. This shall be the exclusive remedy for all claims whether based on contract, negligence, or strict liability.
