Team C TS2TE Manual page 19

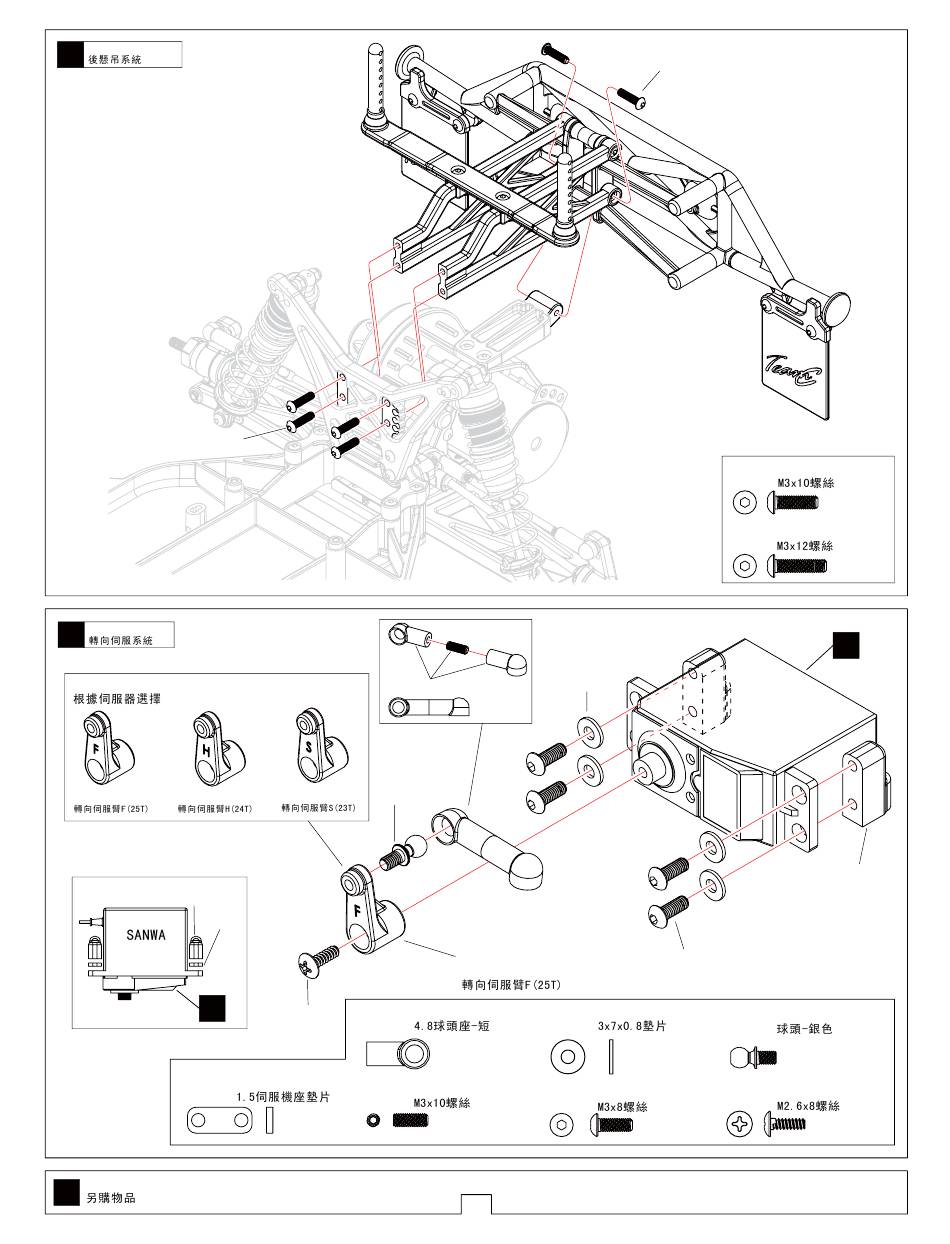

Rear Suspension
33
TS2025 M3x10
Steering Servo
34
Select for your servo
Steering Servo-H(24T) Steering Servo-S(23T)
Steering Servo-F(25T)
Sanwa servo
T02028
T02035
X
T02035 1.5 Servo spacer
Must be purchased separately
X
All manuals and user guides at all-guides.com
T02030
T02061
T02082(2.6x8) T02030 4.8 Ball End-Short
T02030 M3x10 Screw
......2
T02081
T02027
Steering Servo-F(25T)
T02081 3x7x0.8 Washer
...............2
..................4
T02082 M3x8 Screw
...............1
16
TS2025 M3x12
TS2025 M3x10 Screw
TS2025 M3x12 Screw
T02082
T02061 Ball stud - silvery
.....................1
T02082 M2.6x8 Screw
............1
............4
............4
............2
X
T02028
