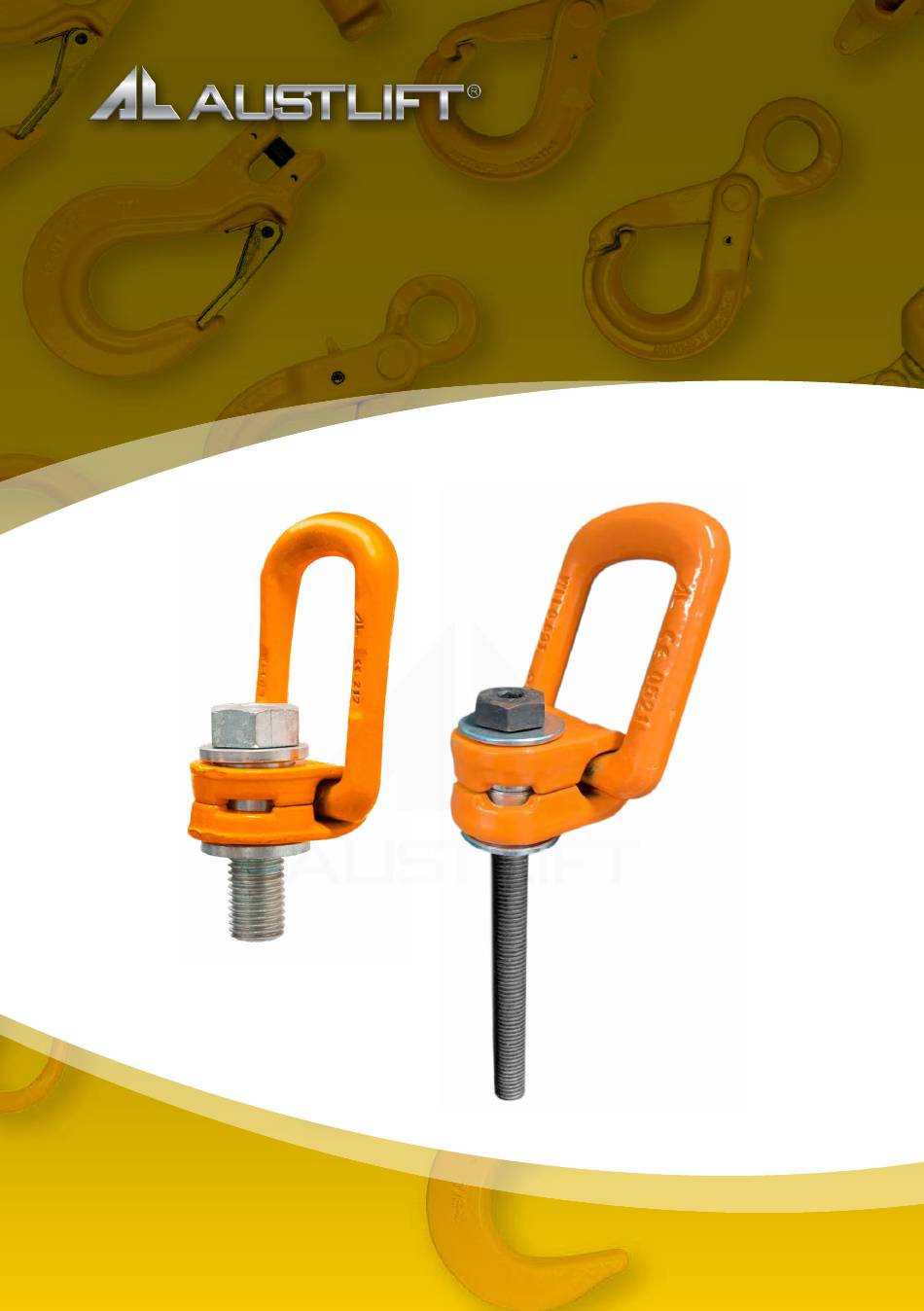

Lifting Your Business to A Higher Level
USER MANUAL
MEGA EYEBOLT
605208 - 605248 series: Mega Eyebolt with short thread
605508 - 605548 series: Mega Eyebolt with long thread
1300 100 120
www.austlift.com.au
AUSTRALIAN LIFTING CENTRE PTY LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 605208 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Austlift 605208 Series

  • Page 1 Lifting Your Business to A Higher Level USER MANUAL MEGA EYEBOLT 605208 - 605248 series: Mega Eyebolt with short thread 605508 - 605548 series: Mega Eyebolt with long thread 1300 100 120 www.austlift.com.au AUSTRALIAN LIFTING CENTRE PTY LTD...
  • Page 2 Mega Eyebolt Austlift Mega Eyebolts are designed and tested to EN818-4 and AS2318. • Working load limit (WLL) is constantly unchanged from horizontal to • vertical, unique designed. Made from G80 steel with orange powder coated finishing. • Proof tested to 1.25 x WLL with ball bearing, tested again at 2 x WLL after •...
  • Page 3 3 or 4 SYMMETRIC INCLINATION 0° 90° 0° 90° ASYMMETRIC 0°-45° 45°-60° 0°-45° 45°-60° SAFETY FACTOR LOAD FACTOR 0.42 0.63 0.45 0.63 0.63 1.26 1.26 0.88 0.63 1.32 0.95 0.63 1.68 2.52 3.15 2.25 5.25 3.75 10.0 10.0 10.5 www.austlift.com.au...
  • Page 4 MARKINGS • Austlift (or AL): Manufacturer’s mark • CE: The eyebolt is designed to CE standard. It is compliance with 2006/42/EC (New machinery directive). • WLL: Maximum load at vertical lifting position (within 90-degree range for single eyebolt). • Batch number: As you can see on the product.
  • Page 5 5. The thread must be perpendicular to the surface of the object being lifted. 6. Eyebolt should be tightened with a torque wrench as to the below chart. SIZE Tightening torque 25-30 55-60 95-100 110-120 140-150 390-400 750-760 750-760 750-760 (Nm) www.austlift.com.au...
  • Page 6 • Do not make any alterations or do welding to the product without the manufacturer’s prior written consent. • Repair is permitted, provided that it is either done by Austlift or a competent Austlift dealer. Storage: When not in use, store the product in appropriate environment.
  • Page 8 Wholesale of Lifting, Rigging, Load Restraint & Height Safety products AUSTRALIAN LIFTING CENTRE 1300 100 120 www.austlift.com.au Head Office (NSW) QLD Office 43 Frank Street 7 Durbell Street Wetherill Park, NSW 2164 Acacia Ridge, QLD 4110 Ph: 02 9757 2277...

This manual is also suitable for:

605248 series605508 series605548 series
