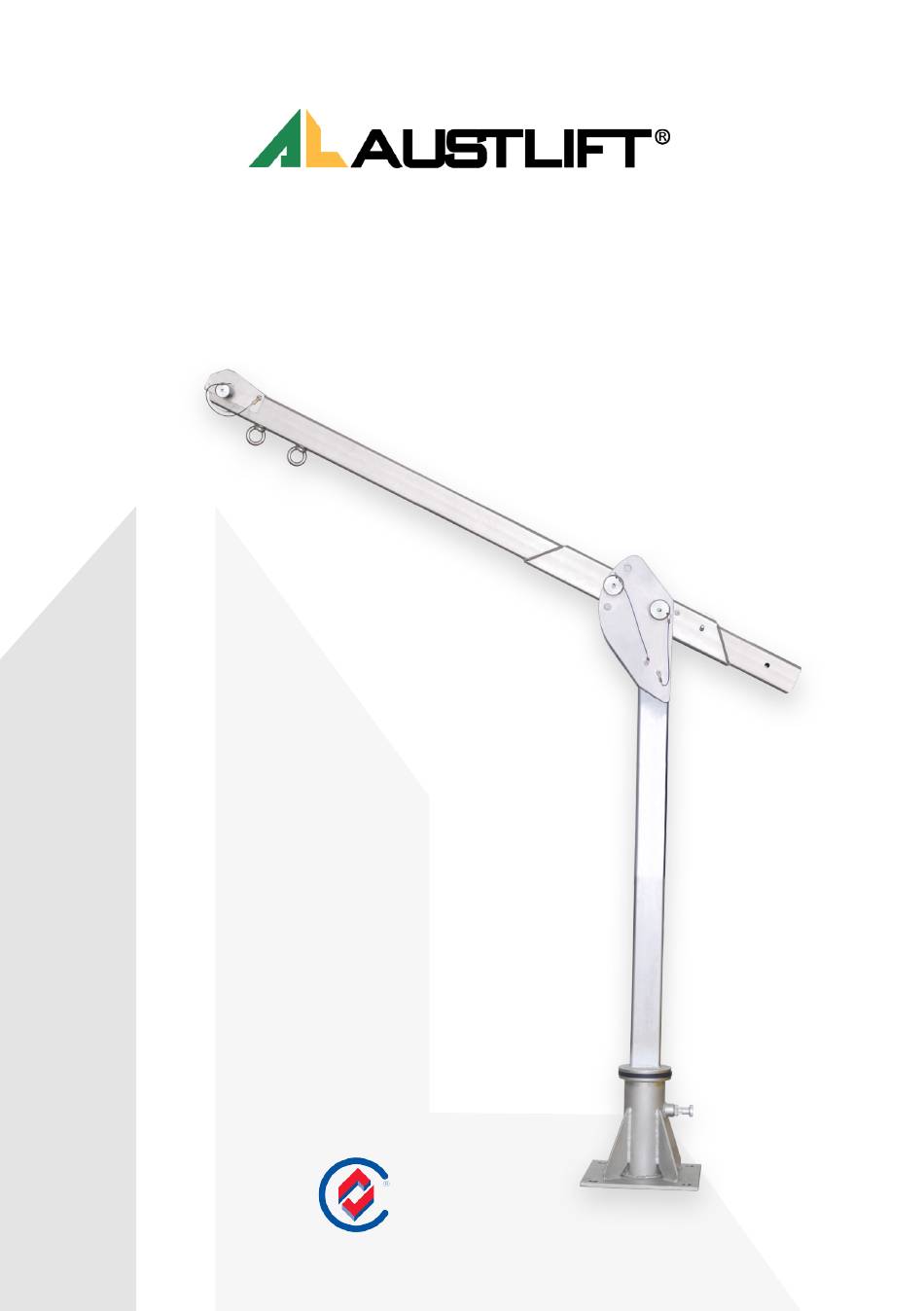

- Page 1 USER INSTRUCTIONS Davit System PC. 915400 AS/NZS 5532:2013...
- Page 2 This instruction manual belongs to the Austlift Davit System according to AS/NZS 5532:2013 and must be available at the place of installation. If this device is sold, the instruction and assembly manual must be included in the local language. The instrucons for use and installaon must strictly be read in full and understood before using the apparatus.
-
Page 3: Installation
Austli Winch Pic.5 Floor Mounng Br acket (915401) Wall Mounng Br acket (915402) Pic.7 Pic.6 Note : Suitable M16 fasteners are to be used for fixing the brackets to the structure. See Pic.6 and Pic.7 for examples. Notice: Preparing the apparatus for use requires prior knowledge of proper mounting of the floor and wall mounting brackets. - Page 4 STEP 4: STEP 5: Unlock the locking pin by pressing The Davit System is now ready for on the pin and pulling it out. Now its basic function. To dismantle, swing the extension arm of the Davit go through the described steps in into the desired position 1, 2 or 3 reverse order.
- Page 5 The AUSTLIFT RETRACTABLE FALL ARRESTER rated capacity 136 kg / 1 person is mounted on the anchorage eye with help of a Karabiner. AUSTLIFT Winch is mounted on the cantilever or Davit Mast with the help of two bolts M10 x 100mm washer and nylon nut as well as a specialised bracket.
-
Page 6: Safety Instructions
The wire rope of winch/retractable fall arrester is free of cuts, corrosion, kinks etc WARNING • Ensure any medical condition of the user does not affect his safety in normal and emergency use. • The Austlift Davit System shall only be used by a person trained and competent in its safe use. 915400... - Page 7 The Austlift Davit System shall not be used outside its limitation, or for any purpose other than that for which it is intended. • The user should carry out a pre-use check of the Austlift Davit System, to ensure that it is in a serviceable condition and operates correctly before it is used. •...
-
Page 8: Instructions For Maintenance
REPAIR Never a� empt to repair the Davit System. If the product becomes damaged, it will not provide optimum level of protection, and therefore should be immediately either replaced or repaired. Never use a damaged product. Also, never use it if the rope shows signs of cuts or damage. - Page 9 1. The AS/NZS mark showing that the product conforms to Australian Standards. 2. Identification or the manufacturer. 3. Type of product code. 4. Serial Number. 5. Month/Year of Manufacture Please refer to previous pictures for proper installation of the Davit System. 915400...
-
Page 10: Inspection Log
INSPECTION LOG Product Type : Year of Mnf. : Serial No. : User Name: DATE COMMENTS/DEFECTS SIGNATURE... - Page 11 INSPECTION LOG Product Type : Year of Mnf. : Serial No. : User Name: DATE COMMENTS/DEFECTS SIGNATURE...
- Page 12 7 Durbell St, Acacia Ridge, QLD 4110 07 3272 0777 VIC Oce 47 Technology Drive, Sunshine West, VIC 3020 03 9314 5525 New Premises address: 475 Dohertys Rd, Truganina VIC 3029, in 2018 915400 Davit System Distributed by: PC. 915400 AS/NZS 5532:2013 B/I P915400 V1 2017...
