USER MANUAL
PLATE CLAMP (UNIVERSAL & HORIZONTAL)
HPC-1: 143075, 143100, 143150, 143200, 143300, 143500
UPC-1: 142075, 142150, 142200, 142300, 142500
1300 100 120
www.austlift.com.au
AUSTRALIAN LIFTING CENTRE PTY LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 143075 and is the answer not in the manual?

Questions and answers

Summary of Contents for Austlift 143075

  • Page 1 Lifting Your Business to A Higher Level USER MANUAL PLATE CLAMP (UNIVERSAL & HORIZONTAL) HPC-1: 143075, 143100, 143150, 143200, 143300, 143500 UPC-1: 142075, 142150, 142200, 142300, 142500 1300 100 120 www.austlift.com.au AUSTRALIAN LIFTING CENTRE PTY LTD...
  • Page 2 Universal Plate Clamp (UPC-1) The AUSTLIFT model UPC-1 Clamp is designed for a wide range of uses for vertical lifting and is particularly suited for lifting and turning of steel plates of up to 180°. This clamp can be applied to a wide range of applications such as ship sections and the extraction of pile sheets which maintains a structure for safety against ground touching shocks of the loads.
  • Page 3: Specifications

    • Proof tested to 2 x WLL with certificate • Minimum Safety factor of 5:1 • Spare parts are availabletes Features • Building construction sites • Ship building yards • Metal production workshops • Civil engineering construction • Railway construction sites www.austlift.com.au...

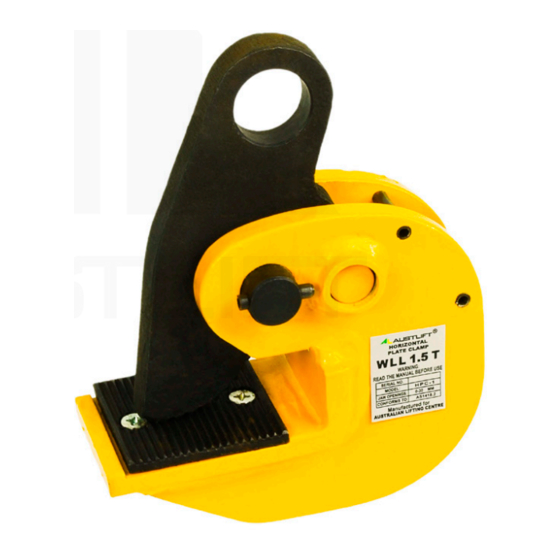

  • Page 4 Horizontal Plate Clamp The AUSTLIFT model HPC-1 Clamp is used in pairs to horizontal lift and transport steel material on a flat plane configuration. It is particularly suited to this application due to the thin pressure pad and buffer cams which facilitate easy insertion and removal under the plate being lifted.
  • Page 5 Specifications Fitted with locking button (a safety feature) DIMENSION (mm) CODE (kg) 0.75 143075 0-25 ø25 143100 0-30 ø30 143150 0-30 ø30 143200 0-40 ø30 143300 0-45 ø30 143500 0-55 ø30 Application • Building construction sites • Ship building yards • Metal production workshops...
  • Page 6: Pre Use Inspection

    Austlift parts. DO nOT USE iT DO nOT USE iT DO nOT USE iT If the main shaft pin is...
  • Page 7: Care In Use

    (A) and push down the hoisting eye (D) to release the gripping cam (this can release quickly on thicker steel plates). Care in Use Lifting Methods of Universal Plate Clamps STEEL PLATE WITH 2 STEEL GIRDERS FABRICATED OBJECTS CLAMPS www.austlift.com.au...
  • Page 8 How to use Horizontal Plate Clamp 1. Push the spring loaded gripping arm (A) downward until the lock pin (C) clicks into place and remains engaged. 2. Place the clamp over the plate to be lifted making sure the plate sits all the way in the back of the jaw.
  • Page 9 DANGER incorrect application for Horizontal Clamps Angle>60° Angle>60° DangEr DangEr DangEr Superficial Gripping Sling Angle Lifting Two Plates Exceeds 60° Simultaneously DangEr DangEr DangEr Lifting Two different size One Side Lifting Two point lifting plates simultaneously using one sling www.austlift.com.au...
  • Page 10: Storage And Handling

    Storage and Handling • All plate clamps other than those fixed permanently in position should, after use, be returned to safe storage. The general requirements are essentially that the storage should be dry, free from pollutions likely to cause damage or corrosion and extremes of temperature. Equipment prior to storage should be checked that the unit remains in good working order and that all parts are present.
  • Page 11 UNIVERSAL CLAMP PLATE CLAMP REPAIR KITS LITTLE PAD ACTION JACK (BRAKE ASSEMBLy) CODE SUIT CODE SUIT 0.75T 031075SP1 0.75T 031075SP2 142075 142075 1.5T 031150SP1 1.5T 031150SP2 142150 142150 031200SP1 031200SP2 142200 142200 031300SP1 031300SP2 142300 142300 031500SP1 031500SP2 142500 142500 www.austlift.com.au...
  • Page 12: Disassembly Steps

    Horizontal Plate Clamp Repair Disassembly Steps Use tools to knock the spring pin off, then pull the hanger pin out. Use the tool to knock the hanger pin off, then remember to keep the hanger pin and the two shims together. Pull out the split pin.
  • Page 13: Reassembly Steps

    Insert the mobile pin into the hole and pull the brake to fit the groove (Figure 3) Assemble the connector, the lower pin, the spring, etc. Note: All structural repair or subsequent work to load- bearing components must be carried out in accordance with AS4991. www.austlift.com.au...
  • Page 14 Spare Parts for Horizontal Plate Clamp HORIZONTAL CLAMP PLATE CLAMP TECHNICAL DRAWING HORIZONTAL CLAMP PLATE CLAMP REPAIR KITS LITTLE PAD ACTION JACK (BRAKE ASSEMBLy) CODE SUIT CODE SUIT 032075SP1 032075SP2 0.75T 0.75T 143075 143075 032100SP1 032100SP2 143100 143100 1.5T 032150SP1 1.5T 032150SP2 143150 143150 032200SP1...
  • Page 15 Insert the the hanger pin and remember to Knock the corresponding connect the spring pin and the rear spring pin. spring pin into the body. Note: All structural repair or subsequent work to load-bearing components must be carried out in accordance with AS4991. www.austlift.com.au...
  • Page 16 Wholesale of Lifting, Rigging, Load Restraint & Height Safety products aUSTraLian LifTing CEnTrE 1300 100 120 www.austlift.com.au Head Office (NSW) QLD Office 43 Frank Street 7 Durbell Street Wetherill Park, NSW 2164 Acacia Ridge, QLD 4110 Ph: 02 9757 2277...
