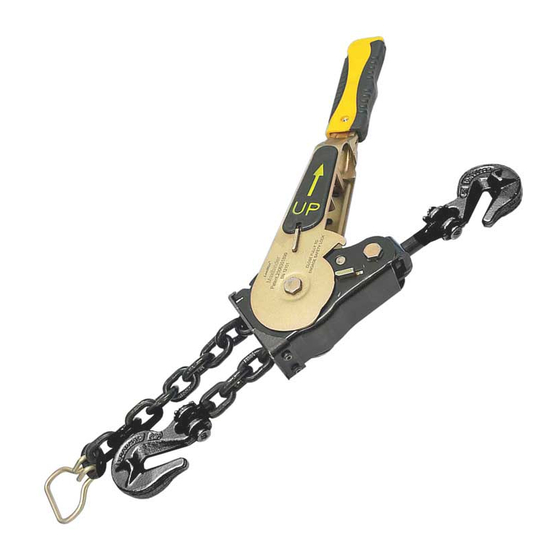

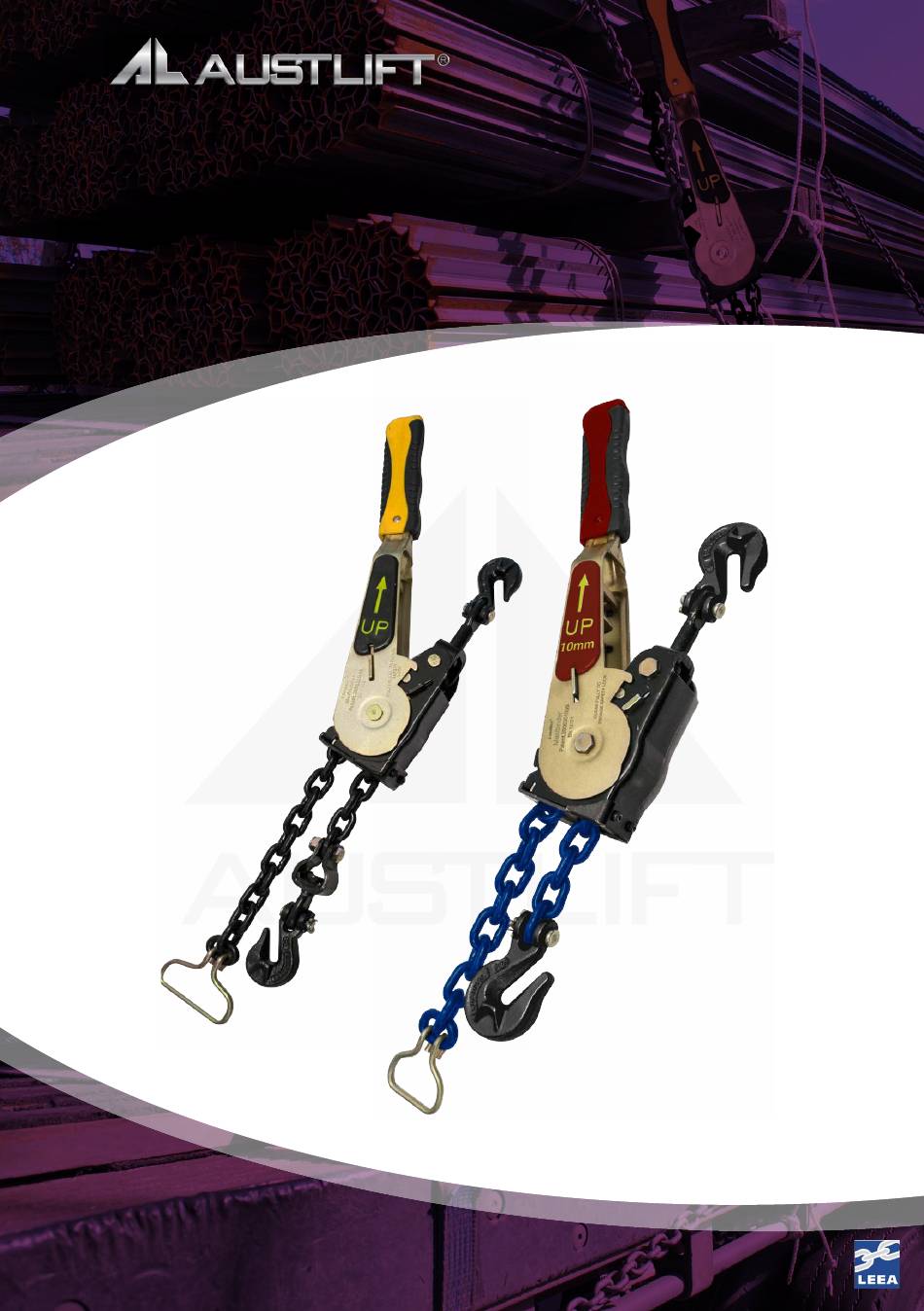

- Page 1 Wholesale of Lifting, Rigging, Load Restraint & Height Safety products MAXIBINDER USER MANUAL 202705 (8mm), 202707 (10mm) 1300 100 120 www.austlift.com.au Australian Patent NO. 2006301899 AUSTRALIAN LIFTING CENTRE PTY LTD...
- Page 2 • Safer, quicker and easier to use. • 1/8 chain link length adjustment. • Alloy steel, heat treated for durability. • Multiple purposes. • Designed for a higher pre-tensioning strength. • Designed and manufactured to AS/NZS 4344. 1300 100 120 www.austlift.com.au...
- Page 3 MAXIBINDER USER MANUAL CODE LASHING DESTRUCTIVE CHAIN CAPACITY TEST TRAVELLING 202705 (8mm) 3800kg 7,600kg 305mm 202707 (10mm) 6000kg 12,000kg 305mm CODE CHAIN HOOK (kg) 202705 0.55M Grab Hook (8mm) 202707 G100 0.6M 10mm Grab Hook (10mm) INSPECT MAXIBINDER BEFORE USE •...
- Page 4 ATTENTION To maximize the lashing capacity, you should pull the bottom hook all the way out, check there is no twist on chain before you connect it to the binding chain. 1300 100 120 www.austlift.com.au...
- Page 5 MAXIBINDER USER MANUAL STEP 5 STEP 6 Pull the chain all the way out from Pull the control plate again and the binder and to connect the move handle back to the middle bottom hook to your binding chain section, release the control plate at the furthest point.
- Page 6 STEP 9 When ratcheting is finished, ensure the handle is stowed in upright position and check the safety lock is fully engaged. Safety lock ATTENTION During transport, regular checks are required to ensure the load is secured. 1300 100 120 www.austlift.com.au...
- Page 7 MAXIBINDER USER MANUAL HOW TO RELEASE STEP 1 Control Plate Pull the control plate back and move the handle downward. STEP 2 By pushing the handle downwards you will feel the tension increase and the pawl will push out. STEP 3 Further downward pressure...
-
Page 8: Maintenance
• Use high pressure air or water to flush out is permitted. • Regularly apply lubricant all moving parts with spray lithium grease is required. LITHIUM GREASE The MaxiBinder is a mechanical devise, and require regularly inspection and maintenance . 1300 100 120 www.austlift.com.au... - Page 9 MAXIBINDER USER MANUAL MAXIBINDER USER MANUAL...
- Page 10 Wholesale of Lifting, Rigging, Load Restraint & Height Safety products AUSTRALIAN LIFTING CENTRE Head Office (NSW) 43 Frank Street 1300 100 120 Wetherill Park, NSW 2164 www.austlift.com.au Ph : 02 9757 2277 QLD Office VIC Office WA Office 7 Durbell Street 475 Dohertys Road...
