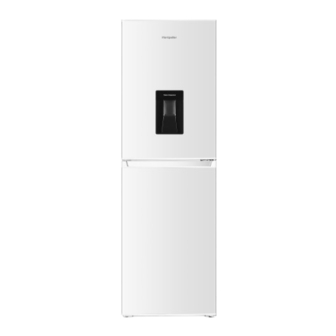

Freestanding Fridge Freezer with
Water Dispenser
MS175DW/DBK - White/Black
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Related Manuals for montpellier MS175DW
Summary of Contents for montpellier MS175DW
- Page 1 Installation and Operating Instructions Freestanding Fridge Freezer with Water Dispenser MS175DW/DBK - White/Black Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 3 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 4: Table Of Contents
Contents 4-10 Section 1 : Safety Info Section 2: Overview 12-14 Section 3: Reversing the Door 15-16 Section 4: Installation 17-23 Section 4: Daily Use - Using The Appliance Section 4: Product information Sheet Section 4: Here for You - Service Details... -
Page 5: Section 1 : Safety Info
Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully,including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 6 Safety information If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
- Page 7 Safety information It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock. This appliance is intended to be used in household environments only.
- Page 8 Safety information Daily use Do not put hot items on the plastic parts in the appliance. Do not place food products directly against the rear wall. Frozen food must not be re-frozen once it has been thawed out.
- Page 9 Safety information If the appliance is left empty for long periods of time switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance. The refrigerating appliance is not intended to be used as a ...
- Page 10 Safety information The appliance must not be located close to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance. Service Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
- Page 11 Safety information The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste...
-
Page 12: Section 2: Overview
Overview Thermostat and Light Glass Shelves Balconies Crisper Cover Water tank Crisper Freezer Drawers Leveling Feet Note: Image used for indicative purposes only. Actual product may differ... -
Page 13: Section 3: Reversing The Door
Reversing the Door Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner. Ensure the unit is unplugged and empty. To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that ... - Page 14 Reversing the Door 4. Unscrew middle hinge. Then lift lower door and place it on a soft pad to avoid scratching. 5. Move the hinge hole covers from left side to right side. 6. Unscrew bottom hinge. Then remove the adjustable feet from both Note: remove this screw if it presents.
- Page 15 Reversing the Door 8. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position. 9. Detach the Fridge and the Freezer door gaskets and then attach them after rotating. 10. Make the middle hinge reverse the direction180 C, then transfer it to the left property position.
-
Page 16: Section 4: Installation
Installation Space Requirement Keep enough space to allow the door to open. Keep at least 50mm gap at both sides. D min=50 min=50 min=50 13 ° 5 Leveling the unit To do this, adjust the two leveling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be connect properly. - Page 17 Installation Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance (see below also). extended temperate:‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C’;...
-
Page 18: Section 4: Daily Use - Using The Appliance
Daily Use First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. - Page 19 Daily Use Refrigerator compartments Type of food Door or balconies of fridge • Foods with natural preservatives, such as jams, compartment juices, drinks, condiments. • Do not store perishable foods. Crisper drawer (salad drawer) • Fruits, herbs and vegetables should be placed separately in the crisper bin.
- Page 20 Daily Use Temperature setting recommendation Freezer Fridge nvironment compartment compartment Temperature Summer Set on 2~ Normal Set on 3 Winter Set on 4~ Impact on food storage Under Recommended setting, the best storage time of fridge is no more than 3 days. ·...
- Page 21 Daily Use Using the Water Dispenser The water dispenser allows you to get chilled water without opening the fridge compartment door. Before first use Before using the water dispenser for the first time, remove and clean the water tank located inside the fridge compartment.
- Page 22 Daily Use Helpful hints and tips To help you make the most of the freezing process, here are some important hints: the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate; the freezing process takes 24 hours.
- Page 23 The internal light is a LED. To replace the lamp, please remove cover and replace bulb accordingly. If you have any difficulty, or you are looking to purchase a replacement bulb, please contact Montpellier Customer Services on 03333 234 473. The model information can be retrieved using the QR-Code reported in the energy label.
- Page 24 Daily Use Troubleshooting Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person can deviate from what is not shown in this manual. If you have attemped the solutions below and are still experiencing trouble, please contact Customer Services. Important! There are some sounds during normal use (compressor, refrigerant circulation).
-
Page 25: Section 4: Product Information Sheet
MS175DW/DBK Model identifier: Type of refrigerating appliance: Low-noise appliance: Design type: freestanding Other refrigerating Wine storage appliance: appliance: General product parameters: Parameter Value Parameter Value Height 1 730 Overal dimensions Width 547 Total volume (dm³ or l) (millimetre) Depth 580... - Page 26 Type of light source Energy efficiency class Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: https://www.montpellier-appliances.com/ Page 2 / 2...
-
Page 27: Section 4: Here For You - Service Details
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 28 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
