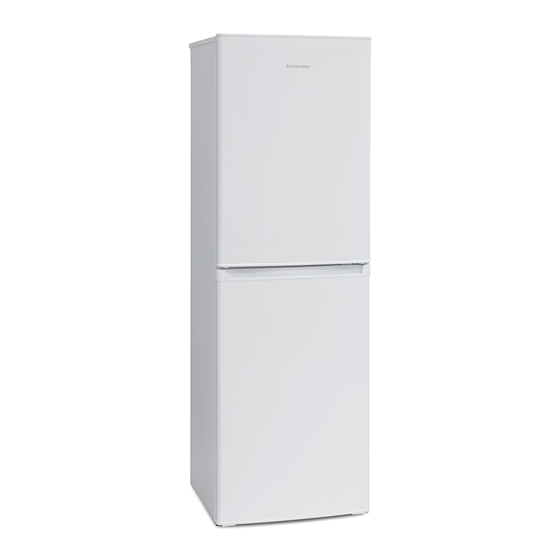

Freestanding Combi Fridge Freezer
MS171W - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Related Manuals for montpellier MS171W
Summary of Contents for montpellier MS171W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Combi Fridge Freezer MS171W - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Montpellier. such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the • Repairs carried out by a non-approved Montpellier date of claim. engineer. What is not covered under the Guarantee: YOUR GUARANTEE IS VALID ONLY IN THE UK &...
-
Page 3: Table Of Contents
Contents Section 1 : Safety Info Section 2: Overview 10-12 Section 3: Reversing the Door 13-14 Section 4: Installation 15-18 Section 5: Daily Use - Using the Appliance Section 6: Here for You - Service Details... -
Page 4: Section 1 : Safety Info
Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 5 Safety information WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture. WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.
- Page 6 Safety Information Power cord must not be lengthened. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire. Make sure that you can come to the mains plug of the appliance. ...
- Page 7 Safety information Installation Impor tant! For electrical connection carefully follow the instructions given in specific paragraphs. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
- Page 8 Safety information Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities.
-
Page 9: Section 2: Overview
Overview Thermostat and Light Glass Shelves Balconies Crisper Cover Crisper Freezer Drawers Leveling Feet Note: Image used for indicative purposes only. Actual product may differ... -
Page 10: Section 3: Reversing The Door
Reversing the Door Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner. Ensure the unit is unplugged and empty. To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that ... - Page 11 Reversing the Door 4. Unscrew middle hinge. Then lift lower door and place it on a soft pad to avoid scratching. 5. Move the hinge hole covers from left side to right side. 6. Unscrew bottom hinge. Then remove the adjustable feet from both Note: remove this screw if it presents.
- Page 12 Reversing the Door 8. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position. 9. Make the middle hinge reverse the direction180 C, then transfer it to the left property position. Place the middle hinge pin in the upper hole of the lower door, then tighten the bolts.
-
Page 13: Section 4: Installation
Installation Space Requirement Keep enough space to allow the door to open. Keep at least 50mm gap at both sides. xxxmm xxxmm Leveling the unit To do this, adjust the two leveling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be connect properly. - Page 14 Installation Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance (see below also). Ambient temperature Climate class C to +32 C to +32 C to +38 C to +43 Location The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.
-
Page 15: Section 5: Daily Use - Using The Appliance
Daily Use First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. - Page 16 Daily Use Helpful hints and tips To help you make the most of the freezing process, here are some important hints: the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate; the freezing process takes 24 hours.
- Page 17 The internal light is a LED. To replace the lamp, please remove cover and replace bulb accordingly. If you have any difficulty, or you are looking to purchase a replacement bulb, please contact Montpellier Customer Services on 03333 234 473.
- Page 18 Daily Use Troubleshooting Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person can deviate from what is not shown in this manual. If you have attemped the solutions below and are still experiencing trouble, please contact Customer Services. Important! There are some sounds during normal use (compressor, refrigerant circulation).
-
Page 19: Section 6: Here For You - Service Details
Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 20 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
