THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Side By Side Fridge Freezer
MSBS442W /X - White / Inox
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MSBS442W
Summary of Contents for montpellier MSBS442W
- Page 1 Installation and Operating Instructions Side By Side Fridge Freezer MSBS442W /X - White / Inox Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ........... 4 Children and vulnerable people safety..........4 Daily use.....................7 Energy saving..................8 Disposal, recycling and the environment..........9 Care and cleaning................10 INSTALLATION................11 Location/Positioning................11 Levelling the unit................12 Electrical connection.................13 Removing the doors................14 DESCRIPTION OF THE APPLIANCE..........16 Dimensions..................17 USING THE APPLIANCE..............18 Control panel. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION In the interest of your safety and to ensure the correct use of your appliance please read these instructions fully before installing and first using the appliance. Included are hints tips and warnings. To avoid unnecessary mistakes and accidents it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 5 IMPORTANT SAFETY INFORMATION If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock/latch unusable before you discard the old appliance. This will prevent it from becoming dangerous for a child.
- Page 6 IMPORTANT SAFETY INFORMATION This product is a household refrigerator and is only suitable for the storage of foods. According to national standards, a household refrigerator shall not be used for other purposes, such as storage of blood, drugs or biological products. Do not use other electrical appliances inside of refrigerating ...
-
Page 7: Daily Use
Daily use Do not place hot food directly into the appliance, allow to cool to room temperature before placing in the appliance. Do not put anything hot on the plastic parts in the appliance. Do not place food products, containers or packaging directly against the rear wall of the fridge. -
Page 8: Energy Saving
Energy Saving Place the appliance in the coolest area of a well ventilated room and within the ambient temperature range of the appliance to allow for energy efficient running. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when set for an extended period of time below the cold end of the ambient temperature range for which the refrigerating appliance is designed. -
Page 9: Disposal, Recycling And The Environment
Disposal, Recycling and the Environment. Packaging Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production. -
Page 10: Care And Cleaning
Care and cleaning Caution! The appliance must not be connected to the mains during cleaning due to danger of electrical shock! Before cleaning, switch the appliance off and remove the plug from the mains, or turn off the circuit breaker or remove the fuse. ... -
Page 11: Installation
Installation Location/Positioning. Important! Unpack the appliance and check for any damage to the appliance internally or externally. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it and make sure to retain all packaging. -
Page 12: Levelling The Unit
Spare enough space for convenient opening of the doors and drawers. Do not put the refrigerator in damp places or where it may easily be splashed with water so as not to affect the electrical insulation properties of the refrigerator. Also placing appliances in a damp/moist area may cause rust or reduction of the insulating effect. -
Page 13: Electrical Connection
Electrical connection (For UK Type Plug) Warning! This appliance must be earthed. The mains lead of this appliance has been fitted with a specially earthed plug. Important ! Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. Do not use the appliance without the fuse cover in position. -
Page 14: Removing The Doors
Removing the doors. Due to the size of the appliance it may require the removal of the doors to allow positioning. Tools Required: Philips screwdriver, flat bladed screwdriver. Ensure the unit is unplugged and empty. To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door removing process. - Page 15 Unscrew the top hinges. Lift the door and place it on a soft pad. Then remove the other door using the same process. Unscrew the bottom hinges. After the appliance is positioned, install the doors following the reversed process. EN - 15...
-
Page 16: Description Of The Appliance

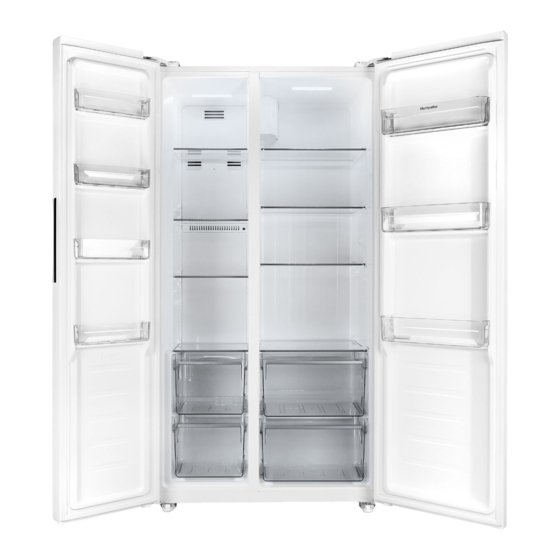

DESCRIPTION OF THE APPLIANCE This appliance is not intended to be used as a built-in appliance. A) Freezer Compartment B) Fridge Compartment 1. LED Light 2. 2* Door Balcony 3. Glass Shelf 4. Door Balcony (4* Freezer) 5. Drawers 6. Leveling Feet EN - 16... -
Page 17: Dimensions
Dimensions Keep at least 50mm gap at two sides and the back EN - 17... -
Page 18: Using The Appliance
Using the appliance. Control Panel Buttons A. Press to adjust temperature of freezer compartment (left side) from -14℃ to -22℃. B. Press to adjust temperature of fridge compartment (right side) from 2℃ to 8℃. C. Press to select running mode from SMART, ECO, SUPER COOLING, SUPER FREEZING and USER’S SETTING (no symbol on display) -
Page 19: Functions
Functions ECO mode: Select this mode when you want to save power. Super cooling mode: This mode allows you to cool foods quickly and will be automatically deactivated after 2.5 hours of operation. Super freezing mode: This mode allows you to freeze foods quickly will be automatically deactivated after 50 hours of operation. -
Page 20: Temperature Setting Recommendation
Temperature setting recommendation Temperature Setting Recommendation Fridge Freezer Remarks Compartment Compartment For regular use and best -18°C 4°C performance. Recommended when -20°C, -22°C environmental temperatures 4°C or -24°C exceed 30°C To be used when you wish to Super Freeze 4°C freeze food in a short period of mode -25°C time, especially fresh food. -
Page 21: Helpful Hints And Tips
Helpful hints and tips. Hints for freezing To help you make the most of the freezing process, here are some important hints: • The maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate. •... - Page 22 Hints for fresh food refrigeration To obtain the best performance: • Do not store warm food or evaporating liquids in the refrigerator, always allow them to cool to room temperature. • Do cover or wrap the food, particularly if it has a strong flavor. •...
-
Page 23: First Use
First Use Before using for the first time ,make sure that the appliances has stood upright for 4 hours before turning on. Cleaning the interior. Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. -
Page 24: Accessories
Thawing Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer. -
Page 25: Troubleshooting
Troubleshooting Caution! Before shooting any trouble, disconnect the power supply. Only a qualified electrician of competent person must do the trouble shooting that is not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Problem Possible Cause Solution Mains plug is not plugged in or is loose... - Page 26 Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet Alternatively you can download from https://www.montpellier-appliances.com by going to the relevant product page. The model identifier for your appliance can be found on the rating plate at the rear/inside of the appliance.
-
Page 27: Here For You
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 28 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
