THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

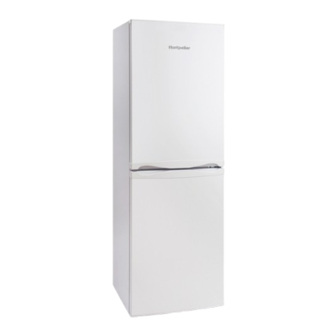

Static Combi Fridge Freezer
MS170W - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Advertisement
Related Manuals for montpellier MS170W
Summary of Contents for montpellier MS170W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Static Combi Fridge Freezer MS170W - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Fridge Freezer. Our fridge freezers has been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your fridge freezer to ensure you get the most from your purchase.
- Page 3 Description of the Appliance This diagram is only for informative purposes about parts of the appliance. Parts may vary according to the appliance model. Fridge compartment Freezer – lower compartment Freezer Freezer – upper drawer Freezer – lower drawer compartment Thermostat dial Ice tray Refrigerator lamp &...
- Page 4 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 5 Section 1. Installation IMPORTANT! This appliance must be left to stand in an upright position for at least 4 hours before being switched on for the first time. Remove all packaging and securing tape from the appliance. Wash the interior of the appliance with lukewarm water containing a small amount of bicarbonate soda (5ml to 0.5 litres of water).
- Page 6 Section 2. Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. If this appliance is to replace an old appliance with a lock, as a safety measure break or remove the lock and/or door before disposal.
- Page 7 Section 3. Operating the Appliance 3.1. Switching on the Appliance Allow the appliance to stand for a minimum of 4 hours after installation, before switching on. Plug in the appliance and switch on at the mains supply. Set the thermostat control to the required setting as detailed in the Temperature Control section (3.2.).
- Page 8 3.3. Normal Operating Sounds You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the cooling system and through the coils or tubing at the rear of the appliance. When the compressor is in operation you may hear a slight whirring sound or pulsating noise.
- Page 9 Accessories Ice Tray Fill the ice tray with water and place in freezer compartment. After the water has completely turned to ice, you can twist the tray as shown below to remove the ice cubes. Note: All written and visual descriptions in the accessories may vary according to the appliance model.
- Page 10 Arranging food in the appliance Refrigerator Section - To reduce the humidity and consequentially decrease the amount of frost, never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate on the coldest parts of the evaporator and over time will require more frequent defrosting.
- Page 11 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply. 4.1 Internal Cleaning Clean the interior and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.
- Page 12 4.4. When the appliance is not in use When the appliance is not in use for long periods, remove the contents, disconnect from the electricity supply, defrost and clean the appliance (see Section 4.1), leaving the door ajar until you wish to use the appliance again. Failure to do so will cause the fridge to smell.
- Page 13 3. Unscrew the two screws fixing the middle hinge and remove it. 4. Remove the freezer door. 5. Lie the appliance carefully down on its right hand side, ensure the floor surface is flat and clean. It is suggested that a sheet or something similar is placed on the floor in order to protect the paint finish.
- Page 14 7. Remove the top hinge cover plate from the left and position it on the right hand side. 8. Replace the freezer door top bushing and top bushing cap. 9. Remove the refrigerator door bottom bushing and bottom stopper and then insert them into the left side.
- Page 15 10. Assemble the freezer door. Turn the middle hinge through 180°. Fix the middle hinge by tightening the screws. Assemble the refrigerator door. 11. Unscrew the pin of the top hinge. Turn the hinge through 180° then screw it into the left side hinge holes. Screw the pin of the top hinge. Assemble the top hinge to the left side.
- Page 16 4.7. What to do if something goes wrong There is no power to the appliance: Check there is not a power cut Check there is power to the electric socket/appliance Check the fuse in the plug (Must be 13 amp) Check that the thermostat is set to 1 or above (see Section 3.2.) The compressor runs continuously: Check the door is properly closed.
- Page 17 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 18 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
