1.)

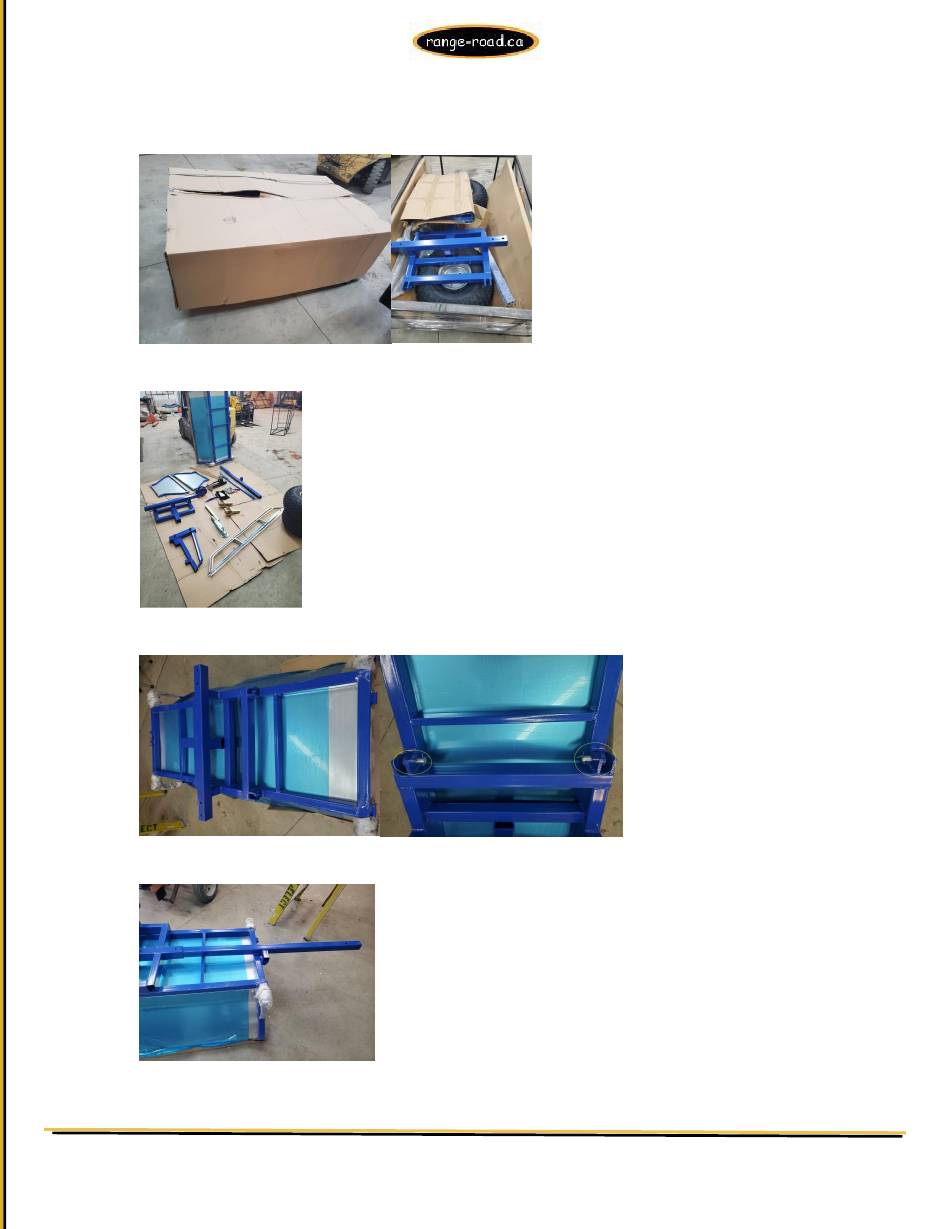

Open cardboard and unpack all pieces from inside the tub assembly.
2.)
Lay the pieces out.
3.)
Lay the tub upside down on the floor and set sub frame on top, line up the swivel pin holes,
insert the pins and the cotter pins.
4.)
Insert the tongue frame tube making sure the larger diameter holes face up.
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca

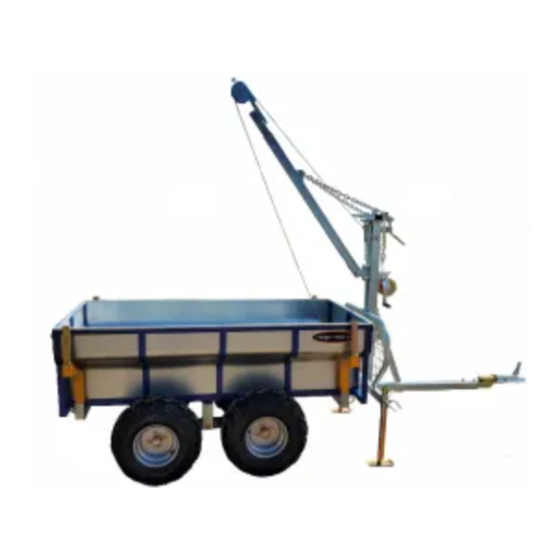

RR600 Trailer
Assembly Manual
Advertisement
Table of Contents
Related Manuals for Range Road RR600
Summary of Contents for Range Road RR600
- Page 1 Lay the tub upside down on the floor and set sub frame on top, line up the swivel pin holes, insert the pins and the cotter pins. Insert the tongue frame tube making sure the larger diameter holes face up. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 2 Insert the axle tubes into the subframe and use bolts with spacers in the 2 holes provided, tighten the bolts. Install all 4 tires and tighten wheel nuts to 40ft/lbs. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 3 Install tongue jack, do not tighten mount bolt. 12.) Mount the winch cable support bat to the winch mount, tighten bolts but leave room for the bar to have some movement. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 4 16.) Attach winch hook to loop on the front of the tub, please remember the retaining pin must be removed before the tub can be winch up into the air. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 5 Tighten the retaining bolts in the winch mount and then tighten the retaining nuts. 19.) Mount the tongue jack so it is about 6-7cm away from winch mount and tighten retaining bolt and nut. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 6 Install front and rear tub doors, adjust latches so that they are firm but not tight.. 22.) Install reflectors 23.) Install tub side rails 24.) Remove all tape, cardboard and plastic. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
