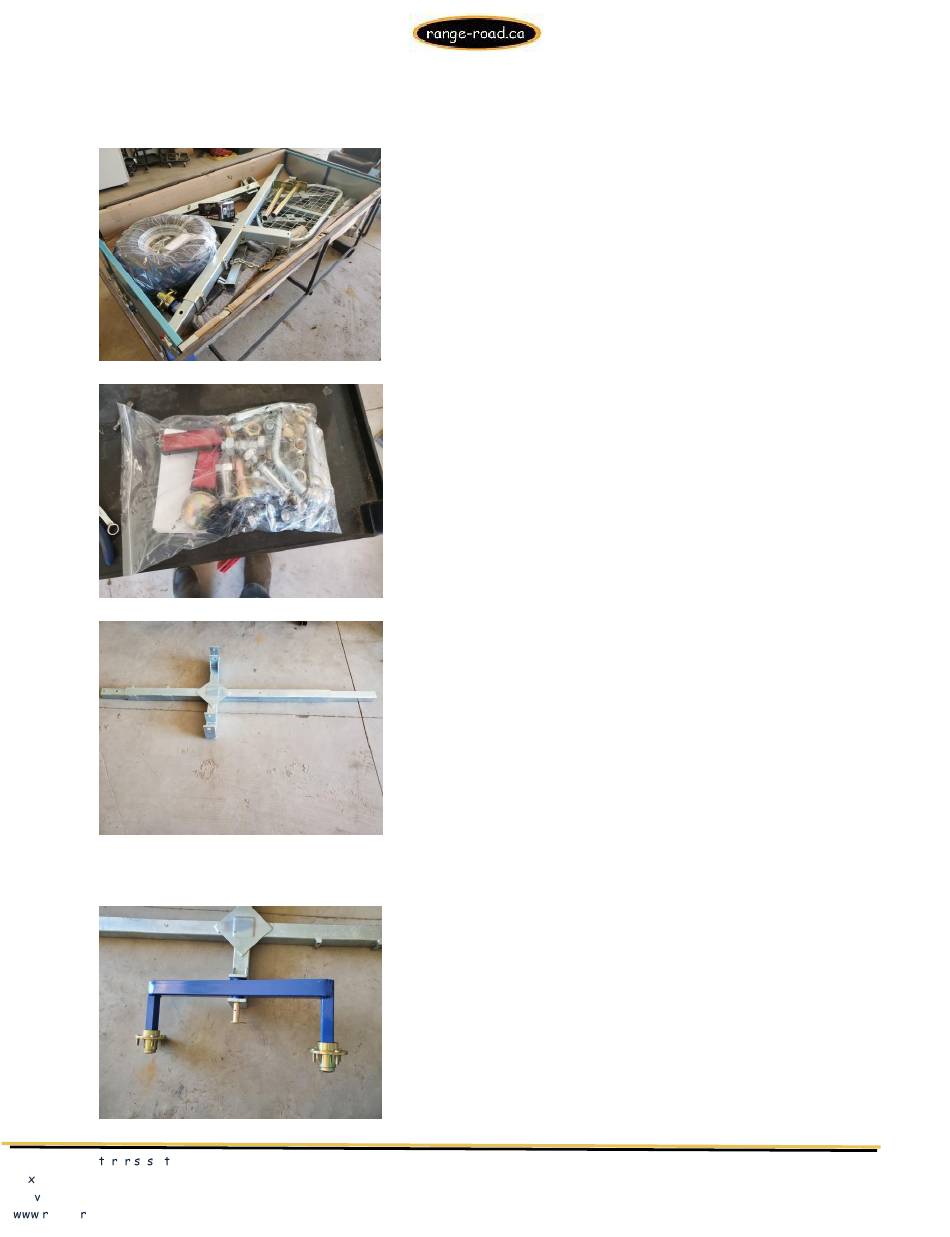

1.)
Unpack all pieces from the tub assembly & crate.
2.)
Find the bag of hardware and open.
3.)
Find the main frame, lay on the floor with tabs facing up.
4.)
Place the walking beams between the tabs on either side, there is not a right or left, either walking
beam can be used for both sides and insert pins.
Range Road En e p i e L d
Bo 944
Eck ille AB T0M 0X0
. ange- oad.ca

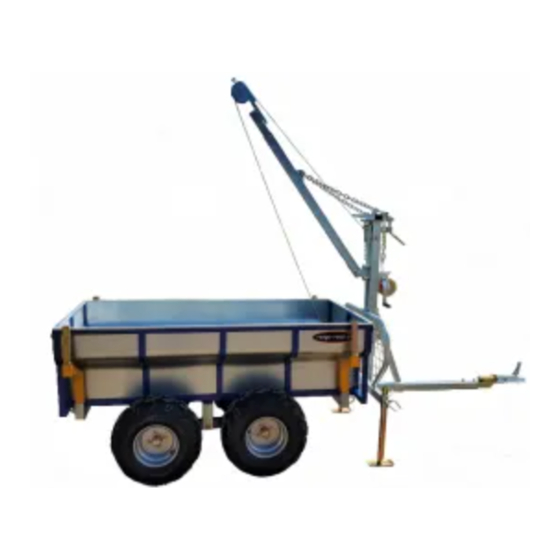

RR600 Trailer
Assembly Manual
Advertisement
Related Manuals for Range Road RR600
Summary of Contents for Range Road RR600
- Page 1 Place the walking beams between the tabs on either side, there is not a right or left, either walking beam can be used for both sides and insert pins. Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 .
- Page 2 Install all 4 tires, R oin one side L on the other and tighten wheel nuts to 40ft/lbs. Flip frame section over so that the frame is higher than the walking beams and slide frame rail in. Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 .
- Page 3 Find rear bunk frame, it has the brackets for the tub pivot pins on it, slide onto rear of frame tube, when both tubes are flush tighten bolts and nuts. 13.) Find front bunk frame and slide onto the frame. Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 . ange- oad.ca...
- Page 4 Install outriggers and retaining handles. 17.) Find hitch swivel and install to front of frame tube, tighten bolts, grease swivel with grease gun. Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 . ange- oad.ca...
- Page 5 Install pins and safety clips. 20.) Check position of safety cage and tighten bolts. 21.) Check position of front bunk mount and tighten bolts. Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 . ange- oad.ca...
- Page 6 Find crane and winch mount, 2 long bolts and nuts, hold upper section on lining up holes, install 2 bolts and tighten nuts. 24.) Install Winch. 25.) Install winch Handle. Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 . ange- oad.ca...
- Page 7 Remove bolt holding winch cable roller, run winch cable through and re-install roller, tighten nut & bolt. 29.) Make sure all cable rollers are tightened into locknuts Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0...
- Page 8 Tighten bolt holding chains to boom. 34.) Tighten bolt hold boom swivel into the locknut but not tight, swivel must be able to move, Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0...
- Page 9 Install 4 Orange bunk arms and 4 upper log holders. Test winch position, when lifting the tub winch line must not tough tub end door. Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0...
- Page 10 Loosen 4 main frame bolts and pull inner tube forward or backward to make frame length shorter or longer. Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 . ange- oad.ca...
- Page 11 Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 . ange- oad.ca...
- Page 12 Range Road En e p i e L d Bo 944 Eck ille AB T0M 0X0 . ange- oad.ca...
