1.)

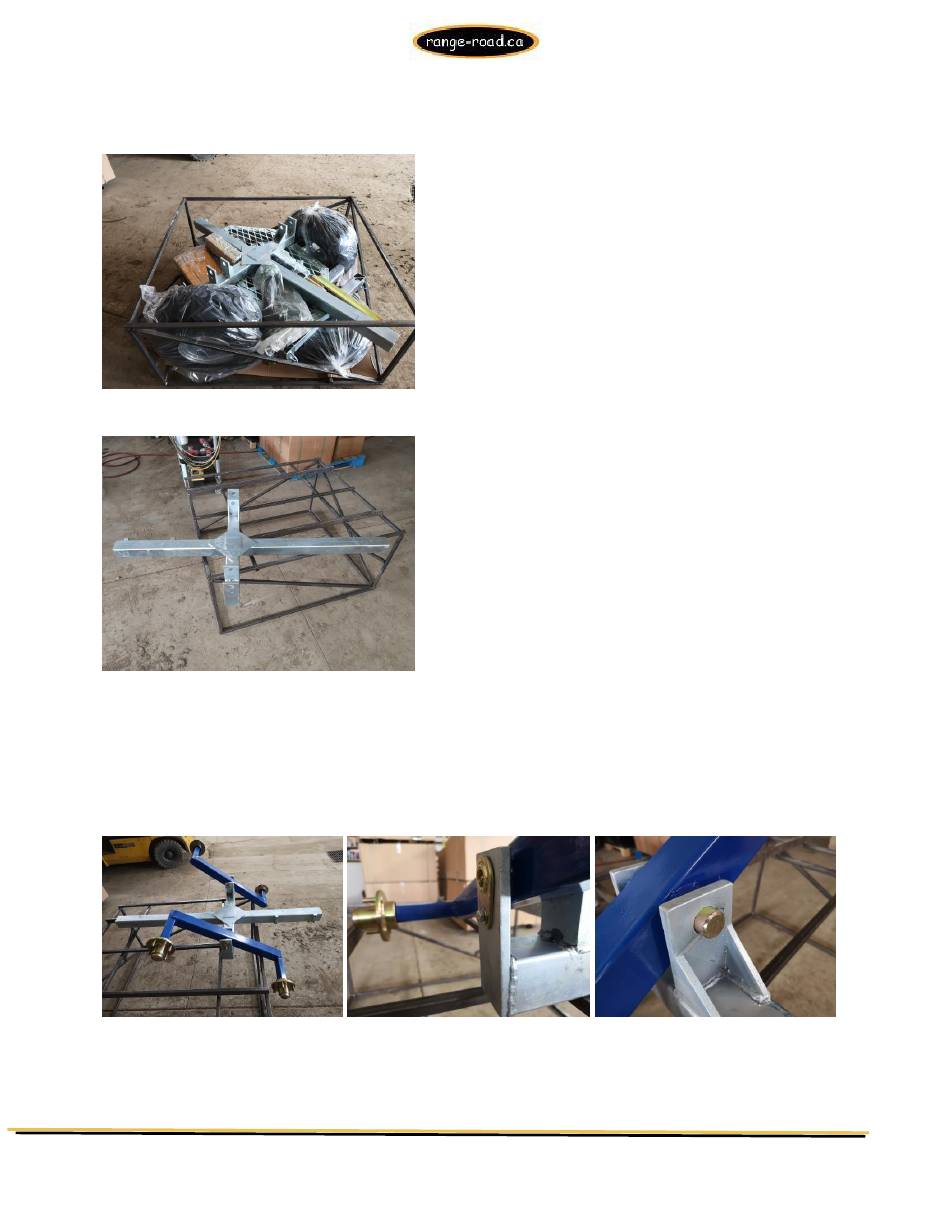

Unpack all pieces from the tub & crate, empty bag with nuts, bolts and pins onto a flat surface.
2.)
Find the main frame, lay it down with axle tabs facing up.
3.)
Place the walking beams between the tabs on either side. The holes drilled in the walking beams are
offset, therefore one end is slightly longer than the other. The short end of the walking beam will be
facing the rear of the trailer. The front of the trailer has the bolt holes drilled on the side- as seen in
the photo below. Install the large swivel pins, install the small bolts into the plate on the large swivel
pins and install cotter pins on the backside. Grease both swivel pins
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
RR602 Trailer
Assembly Manual
Advertisement
Related Manuals for Range Road RR602
Summary of Contents for Range Road RR602
- Page 1 Install the large swivel pins, install the small bolts into the plate on the large swivel pins and install cotter pins on the backside. Grease both swivel pins Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 2 Slide rear portion of frame over main frame. Ensure tabs are facing rear. Install bolts and tighten Slide the front frame portion over the main frame. Slide it right up to the main frame. Install 2 bolts and tighten. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 3 Position the swivel up or down depending on your ATV hitch height, tighten both bolts. 10.) Grease swivel. 11.) The trailer should now look like this. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 4 45° brackets and hanging out the bottom. Install 4 black caps on top of extensions. 14.) The finished trailer should look like this. You can now adjust the inner frame and cage to extend or shorten the overall length of the trailer. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 5 Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
