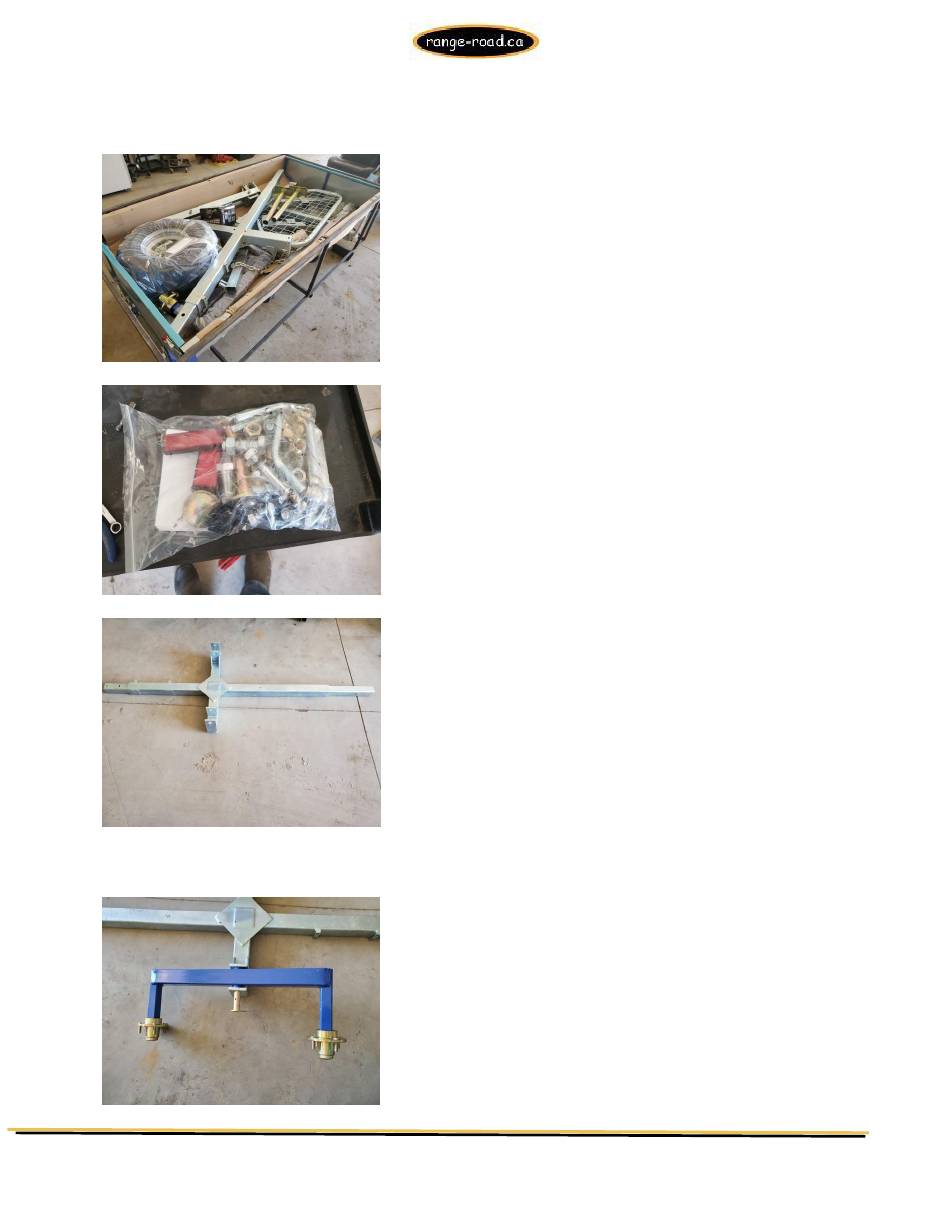

1.)
Unpack all pieces from the tub assembly & crate.
2.)
Find the bag of hardware and open.
3.)
Find the main frame, lay on the floor with tabs facing up.
4.)
Place the walking beams between the tabs on either side, there is not a right or left, either walking
beam can be used for both sides and insert pins.
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca

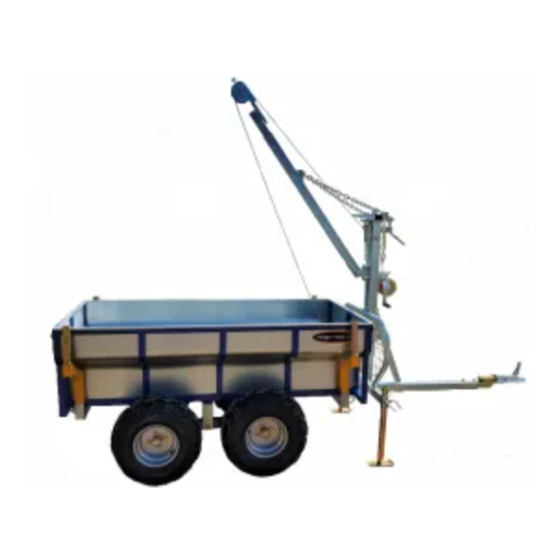

RR600 Trailer
Assembly Manual
Advertisement
Related Manuals for Range Road RR600
Summary of Contents for Range Road RR600
- Page 1 Find the main frame, lay on the floor with tabs facing up. Place the walking beams between the tabs on either side, there is not a right or left, either walking beam can be used for both sides and insert pins. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 2 Install all 4 tires, R oin one side L on the other and tighten wheel nuts to 40ft/lbs. Flip frame section over so that the frame is higher than the walking beams and slide frame rail in. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 3 Find rear bunk frame, it has the brackets for the tub pivot pins on it, slide onto rear of frame tube, when both tubes are flush tighten bolts and nuts. 13.) Find front bunk frame and slide onto the frame. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 4 Slide safety cage section onto front of frame, it should sit about 80 ½” from rear hinges, install 2 large bolts and nuts. 16.) Install outriggers and retaining handles. 17.) Find hitch swivel and install to front of frame tube, tighten bolts, grease swivel with grease gun. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 5 18.) Install Tub. 19.) Install pins and safety clips. 20.) Check position of safety cage and tighten bolts. 21.) Check position of front bunk mount and tighten bolts. 22.) Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 6 Find crane and winch mount, 2 long bolts and nuts, hold upper section on lining up holes, install 2 bolts and tighten nuts. 24.) Install Winch. 25.) Install winch Handle. 26.) Remove bolt and reverse the position of the swivel lock pin. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 7 Remove bolt holding winch cable roller, run winch cable through and re-install roller, tighten nut & bolt. 29.) Make sure all cable rollers are tightened into locknuts 30.) Mount crane arm to frame hinge mount. 31.) Remove chain locking pins from swivel plate. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 8 Tighten bolt hold boom swivel into the locknut but not tight, swivel must be able to move, 35.) Run winch cable out through boom and outer pulley. 36.) Connect winch line hook to loop inside of tub. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 9 Test winch position, when lifting the tub winch line must not tough tub end door. Loosen 4 main frame bolts and pull inner tube forward or backward to make frame length shorter or longer. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
