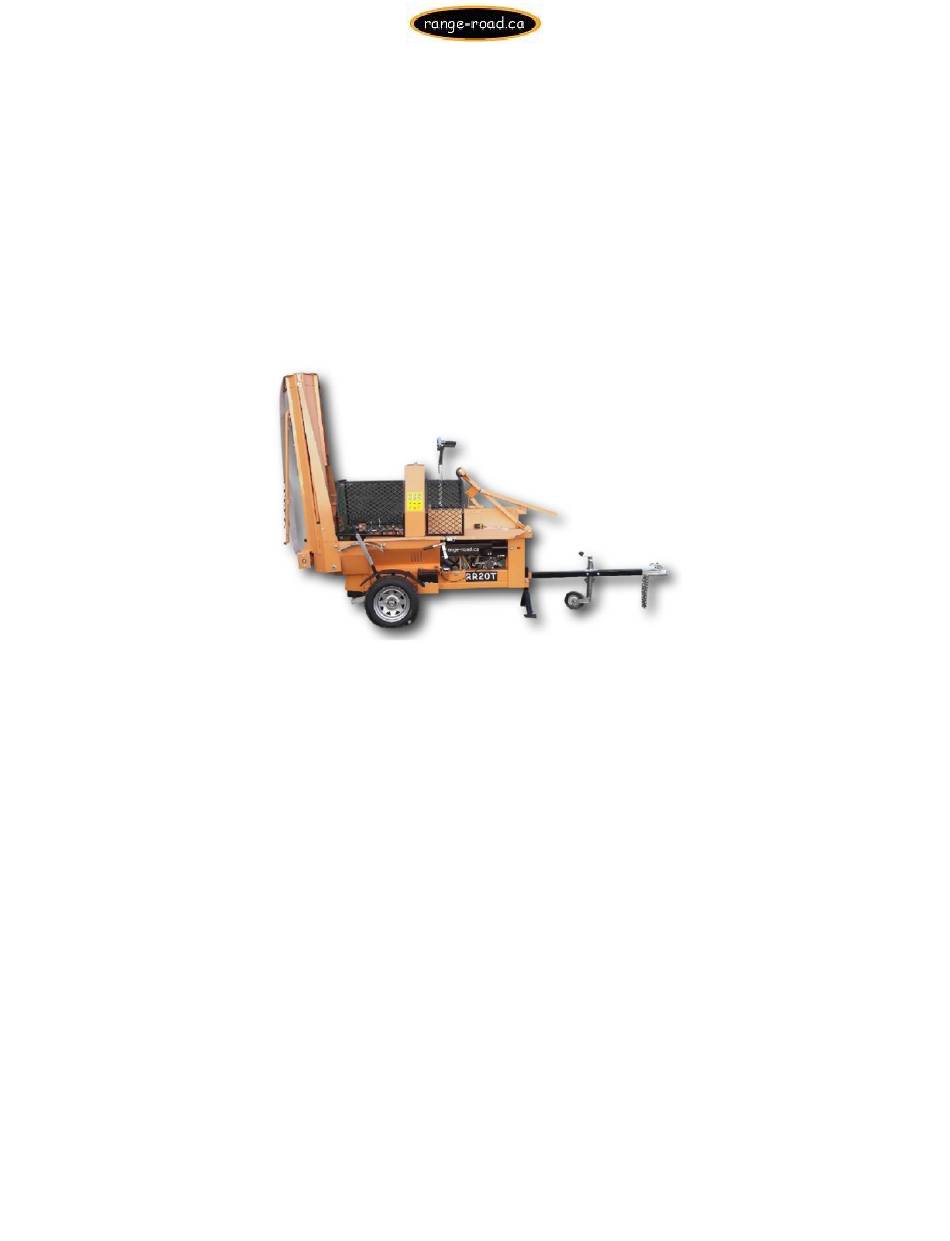

- Page 1 Range Road RR20T Firewood Processor Crated Unit Assembly Manual...
- Page 2 5.) Remove bag containing Bearing, washer, nut, cotter key and cap, place on workbench, set unwrapped wheels out of the way. 6.) Unwrap the following, place on workbench sawdust chute Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 2...
- Page 3 Log roller Arm Towbar Splitter Wedge, Axle Chainsaw Bar Cover, Safety Cages (2), Hydraulics Cover The Processor should now be sitting on the crate with all loose pieces removed Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 3 www.range-road.ca...
- Page 4 12.) Grease all 4 wheel bearings, use a flat screwdriver to remove dust seals from hubs and remove inner wheel bearings for greasing 13.) Install Wheel on axle Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 4...
- Page 5 20.) The four lug nuts of each wheel should be torque to 90ft-lbs. Lower unit to floor Assembler must check that the engine and hydraulic couplers are secure and spaced properly Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 5...
- Page 6 24.) Install sawdust chute 10mm Nut x Bolt through body, nuts go in the sawdust collector side. 25.) Remove cotter pin from bottom tube on large safety cover Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 6...
- Page 7 32.) Re-install 10mm Bolt, tubing and nut, snug up lock nut, do not tighten 33.) Remove nut from bar lube fitting, insert hose over barb and snug up fitting (14mm) Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 7 www.range-road.ca...
- Page 8 37.) Hook sawbar return spring into slot. 38.) Apply grease liberally to the metal surfaces that touch below the spring, this will help them slide Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 8...
- Page 9 45.) Adjust cable so that when the chainsaw bar is pulled down, the cable will activate the ram valve, to tight and the cable will stretch, to loose and the ram won’t activate. The cable can be adjusted at both ends. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 9 www.range-road.ca...
- Page 10 Install loop from red wire onto stud of solenoid and re-install washer and nut, do not overtighten nut 50.) Remove 10mm bolt from the engine ground point, put ring from black wire on bolt and re-install. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 10...
- Page 11 Bolt & Nut in lower hole 56.) Install 10mm Bolt & Nut in side of sawdust cover 57.) Install 2 Allan head bolts ion top of cover, tighten all bolts Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 11 www.range-road.ca...
- Page 12 16mm bolt x 17mm nut, loosen 18mm nuts on 2 retainer bolts, tighten bolts against drawbar, then re-tighten nuts to lock into position 64.) Remove 16mm bolts x 17mm nuts from drawbar Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 12 www.range-road.ca...
- Page 13 70.) Mount fenders using the 2 long 13mm bolts and nuts supplied with each fender, make sure that if the fender has signal light mounting holes they face to the rear repeat on opposite side Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 13...
- Page 14 #91. If unit was purchased with an outfeed conveyor, DO NOT do this step 76.) Open conveyor box, remove shrinkwrap from conveyor, box includes Conveyor Top Section Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 14 www.range-road.ca...
- Page 15 80.) Install belt, be careful when unwrapping so you don’t lose the lacing pin. Mate the ends of the belt together to make sure as many laces overlap each other as possible, insert pin 81.) Slide top roller into place Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 15...
- Page 16 Some conveyors (with square leg) will have two silver plates that are used as spacers to hold the leg away from the belt when it is in the travel position Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 16 www.range-road.ca...
- Page 17 89.) Turn adjusting bolts until conveyor is snug, if belt is too loose drive pulley will spin without turning belt, if it is too tight a jammed piece of wood could tear belt Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 17 www.range-road.ca...
- Page 18 98.) Check adjustment of chainsaw chain, remember this is a chainsaw so the chain should not be tight, the bottom should hang off the bar slightly Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 18 www.range-road.ca...
- Page 19 The rear bracket hits the manual ram bar as the rams goes out, it needs to be adjusted so that it hits the return bar before the ram is fully extended. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 19 www.range-road.ca...
- Page 20 This should be adjusted so that the ram hood does not stick out into the splitting valley when it is in the home position, it should not be sunk into the housing, it should sit almost flush will the front wall. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 Page 20 www.range-road.ca...
- Page 21 (Honda, Lifan, Kohler, Princess Auto, Ducar, Etc.) The warranty begins on the date of sale and is warranted by Range Road Enterprises Ltd. to the original purchaser only. This Warranty does not cover items that have been damaged by accident, alteration, abuse or improper lubrication.
