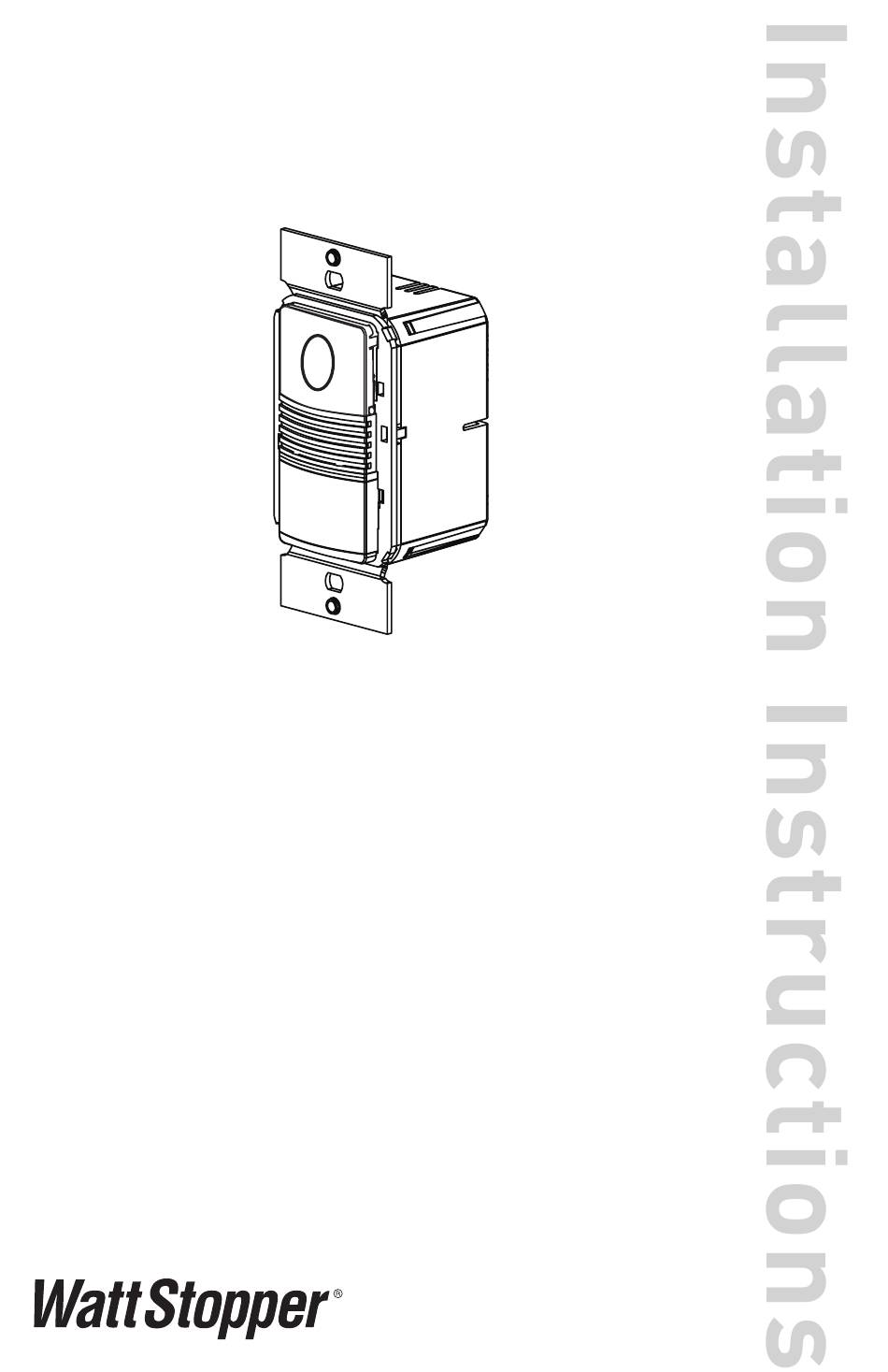

Passive infrared low voltage wall switch occupancy sensor

Advertisement

Quick Links

Wall Switch Occupancy Sensor
Specifications
Voltage . . . . . . . . . . .18-24VDC, 24VAC or Half-wave rectified AC
Current Consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
Power Supply . . . . . . . . . . . . . . . . . . WattStopper Power Packs
Isolated Relay Rating . . . . . . . . . . . . . . . . . . . . . 1A @30VDC/VAC
Time Delay Adjustment . . . . . . . . . . . . . . . . . . . .5 to 30 minutes
Walk-Through Mode. . 3 minutes if no activity after 30 sec.
Test Mode. . . . . . 5 sec. for 10 min. with DIP switch setting
PIR Adjustment . . . . . . . . . . . . . . . . . . .High or Low (DIP switch)
Light Level Adjustment . . . . . . . . . . . . . . . . . . . . . . 8fc to 180+fc
Alerts
. . . . . . . . . . . . . . . . . . . . . . Selectable Audible & Visual
Passive Infrared Low Voltage
PW-100-24
US Patents: 6617560
Santa Clara, CA 95050
800.879.8585
v3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW-100-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for wattstopper PW-100-24

  • Page 1 Current Consumption......20mA Power Supply ....WattStopper Power Packs Isolated Relay Rating .
  • Page 2: Unit Description And Operation

    The PW-100-24 Passive Infrared Low Voltage Wall Switch sensors use advanced passive infrared (PIR) technology. The PW-100-24 sensor can turn a load on, and hold it on as long as the sensor detects occupancy. After no movement is detected for the selected time delay, the lights switch off.
  • Page 3: Walk-Through

    Time Delays The PW-100-24 holds the load ON until no motion is detected for the selected time delay. Select the time delay using DIP switch settings. Test/20 min A Test Mode with a short time delay of 5 seconds is set when DIP switches 1, 2, &...
  • Page 4: Coverage Patterns

    Alerts The PW-100-24 can provide audible and/or visible alerts as a warning before the load turns OFF. Visible Alert When only one minute is left in the time delay, the load connected to the relay turns OFF for one second.
  • Page 5: Installation

    6. Install industry standard decorator wall switch cover plate (not included). White (Neutral) Red (Line) Lighting White Load Power Neutral Pack Black (Load) +24 VDC Common Isolated Relay Outputs Control Outputs Normally closed contact Common Normally open contact Not used PW-100-24 Wiring Visit our website for FAQs: www.wattstopper.com...
  • Page 6: Dip Switch Settings

    DIP SWITCH SETTINGS ON Mode Time Visible Not Used Delay Alerts 1 2 3 Time Delay Test/20 min Audible Alert 5 minutes Enabled 10 minutes Disabled 15 minutes Walk-Through Audible Alerts PIR Sensitivity 20 minutes 25 minutes PIR Sensitivity ON Mode 30 minutes Low, 50% Manual On...
  • Page 7: Sensor Adjustment

    ADJUSTMENTS Sensor Adjustment Remove the wall plate. Remove the button cap by firmly squeezing together the top sides of the button assembly. Gently pull it away from the unit. When the adjustments are completed, replace the button cap by inserting its hinges into the tabs on the main unit and then squeeze the top of the button while pressing it into the unit.
  • Page 8: Cover Plates

    WattStopper warranties its products to be free of defects in materials and workmanship for a period of five years. There are no obligations or liabilities on the part of WattStopper for consequential damages arising out of or in connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation or reinstallation.
