Installation Instructions
Assembly View
Model
ZZUN4279
ZZUN4280
ZZUN4438
ZZUN4439
Page 1 of 5

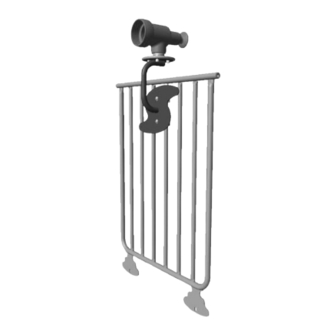

(representative model)
Description
Pipe Wall Mount (CH/EX)
Pipe Wall Mount for (PM)
Pipe Wall Mount w/Lens (CH/EX)
Pipe Wall Mount w/Lens (PM)
Installation Instructions
Universal Models UN4279, UN4280,
UN4438, & UN4439
Telescope Pipe Wall Mount (CH/EX) or (PM) &
Telescope Pipe Wall Mount w/ Lens (CH/EX) or (PM)
Installation Preparation
Recommended Crew: ........................... One (1) adult
Installation Time: ................................... 0.5 hour
Use Zone: .............................................. Refer to Master Drawing
User Group Age (years): ....................... ASTM/CSA: 2-12, EN: 2-14
ICON KEY
Fully Tighten
Hardware
Do Not Fully TIghten
Hardware
Drill
Hammer
Models UN4279, UN4280, *UN4438, & *UN4439
Critical Fall Height
Pour Concrete
Dig Footing Holes
ECN 1153 & *PA1093

Advertisement

loading
Need help?

Need help?

Do you have a question about the UN4279 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Playworld UN4279

  • Page 1 Pipe Wall Mount (CH/EX) Drill Dig Footing Holes ZZUN4280 Pipe Wall Mount for (PM) ZZUN4438 Pipe Wall Mount w/Lens (CH/EX) ZZUN4439 Pipe Wall Mount w/Lens (PM) Hammer Page 1 of 5 Models UN4279, UN4280, *UN4438, & *UN4439 ECN 1153 & *PA1093...
  • Page 2: Installation Instructions

    Note: Skip this page if the model being assembled is not a telescope with lens. 1/4" x 3/4" Button Head Bolt BAE01524 (2) Total Detail A Step 3 Page 2 of 5 Models UN4279, UN4280, *UN4438, & *UN4439 ECN 1153 & *PA1093...
  • Page 3 Clamp Part # 1/4" Lock Nut (1) Total BAE0160 ZZUN4279 AAU0146 AAU0043 (4) Total ZZUN4280 AAU0146 AAU0380 ZZUN4438 AAU0168 AAU0043 ZZUN4439 AAU0168 AAU0380 Detail C Step 5 Page 3 of 5 Models UN4279, UN4280, *UN4438, & *UN4439 ECN 1153 & *PA1093...
  • Page 4 Step 7: Tighten all fasteners. Fully tighten all fasteners according to tightening torque specifi cations. Torque Specifi cations: Bolts and nuts - Snug tighten and then tighten an additional one half turn. Page 4 of 5 Models UN4279, UN4280, *UN4438, & *UN4439 ECN 1153 & *PA1093...
  • Page 5 Installation Instructions Bill of Materials UN4279 - TELESCOPE PIPE WALL MOUNT (CH/EX) UN4438 - TELESCOPE PIPE WALL MOUNT (CH/EX) PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. AAU0043 CLAMP - STEERING WHEEL FOR 4" CENTERS AAU0043 CLAMP - STEERING WHEEL FOR 4" CENTERS...

This manual is also suitable for:

Un4280Un4438Un4439
