Summary of Contents for Playworld 350-2066

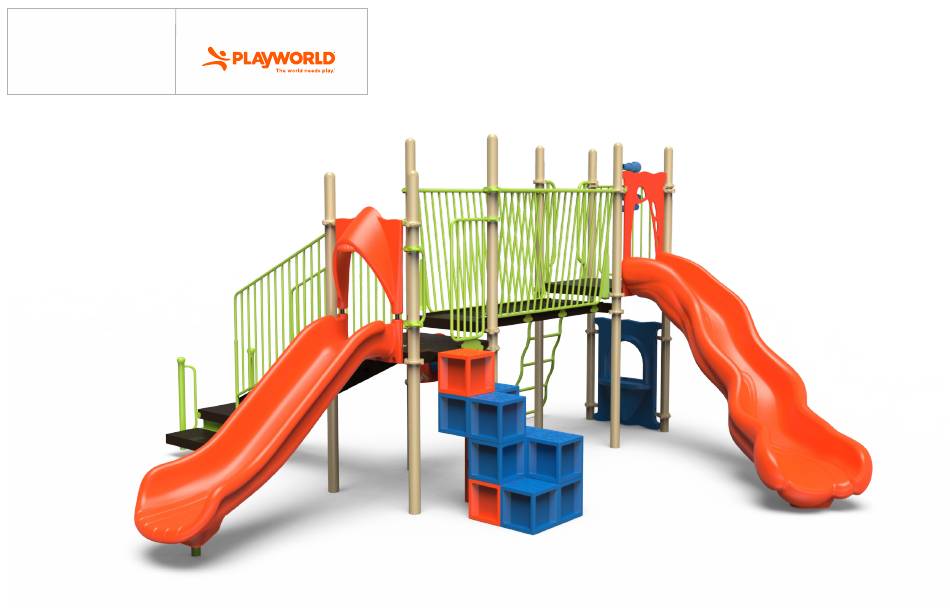

- Page 1 350-2066 Equipment Manufacturer 350-2066...
- Page 2 350-2066 Equipment Manufacturer 350-2066...
- Page 3 31'-6" [9.61M] PLAYWORLD SYSTEMS, INC. 1000 Buffalo Road 6'-3" Lewisburg, PA [1.90M] TRANSFER 17837-9795 USA 6'-2" STATION [1.88M] W/ STEP EQUIPMENT SIZE: 19'1'' x 18'11'' x 9'6'' 5,82M x 5,77M x 2,9M 6'-2" [1.89M] USE ZONE: RIBBON 31'6" x 31'4"...
- Page 4 31'-6" [9.61M] PLAYWORLD SYSTEMS, INC. 1000 Buffalo Road 6'-3" Lewisburg, PA [1.90M] 17837-9795 USA 6'-2" [1.88M] EQUIPMENT SIZE: 19'1'' x 18'11'' x 9'6'' 5,82M x 5,77M x 2,9M 6'-2" [1.89M] USE ZONE: 31'6" x 31'4" 9,61M x 9,56M AREA: PERIMETER: 718 SqFt.
- Page 5 COMPONENT FOOTING (DETAIL 3) SPIRAL SLIDE CENTER POST FOOTING (DETAIL1) SUPPORT POST FOOTING (DETAIL 1 or 4) (136" INDICATES POST LENGTH) CANTILEVER, "T" POST, AND COMPONENT POST FOOTING (DETAIL 2) (ZZCH1850 INDICATES PART NUMBER) GROUND ZERO POST FOOTING (DETAIL 2) (148"...
- Page 6 PLAYWORLD SYSTEMS, INC. 1000 Buffalo Road Lewisburg, PA 17837-9795 USA TRANSFER STATION W/ STEP FOOTING LEGEND 32" 162" 16" RIBBON 16" COMPONENT FOOTING (DETAIL 3) CLIMBER 7" 19" 70" 21" 18" 22" CATWALK SPIRAL SLIDE CENTER POST FOOTING (DETAIL1) 18"...
