Installation Instructions
Assembly View

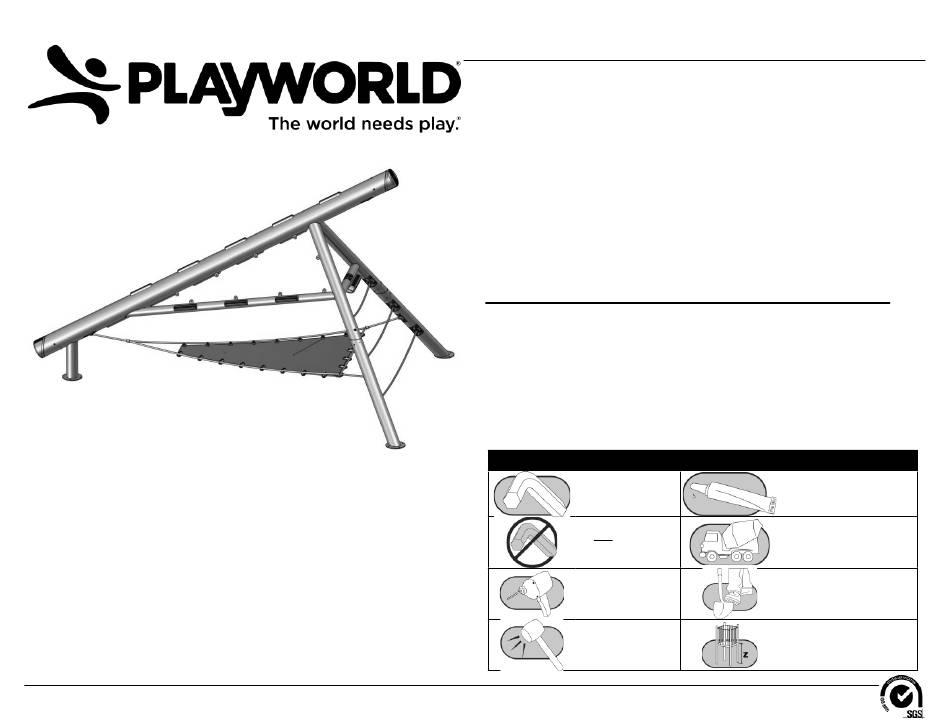

Page 1 of 14
(representative structure)
Installation Instructions
Playworld Systems
Models XX0702 and XX0702S
PlayForm 7 Mother
In-Ground and Surface Mount
Installation Preparation
Recommended Crew: ........................... Four (4) adults
Installation Time (In-Ground): ................ 9.5 man-hours
Installation Time (Surface Mount): ........ 8 man-hours
Concrete Required: ............................... 0.36 cubic yard (0,30 cubic meters)
Use Zone: .............................................. Refer to Master Drawing
User Group Age (years): ....................... ASTM/CSA: 5-12, EN: 6-14
ICON KEY
Fully Tighten
Hardware
Do Not Fully Tighten
Hardware
Drill
Hammer
®
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Critical Fall Height
Model XX0702 and XX0702S
ECN2699

Advertisement

loading
Need help?

Need help?

Do you have a question about the XX0702 and is the answer not in the manual?

Questions and answers

Summary of Contents for Playworld XX0702

  • Page 1 Installation Instructions Installation Instructions Playworld Systems ® Models XX0702 and XX0702S PlayForm 7 Mother In-Ground and Surface Mount Installation Preparation Recommended Crew: ......Four (4) adults Installation Time (In-Ground): ....9.5 man-hours Installation Time (Surface Mount): ..8 man-hours Concrete Required: ....... 0.36 cubic yard (0,30 cubic meters) Use Zone: ..........
  • Page 2 Installation Instructions Footing Diagram Position Unit of Measurement Top View Top # Inches Bottom # [Millimeters] 91.3" (2319 mm) Elevation Views XX0702 Page 2 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 3 Installation Instructions Footing Diagram Position Unit of Measurement Top # Inches Bottom # [Millimeters] Top View 91.3" (2319 mm) Elevation Views XX0702S Page 3 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 4 3/8" x 4-1/2" (In-Ground Mount Button Head Bolt 4 connections BAE06685 this leg (2 Total) 3 connections Detail A each leg Step 4 Attach the left and right legs to the Mother frame. Page 4 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 5 (24 Total) Rope Cap Plate APL2255 (12 Total) Re-attach the frox balls to the ends of the rope. Detail C Step 6 Attach the rope castings to the ends of the ropes. Page 5 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 6 Mother frame. Mom Rope AMC0713 Membrane Casting AAU0169 (44 Total) 3/8" Heavy Hex Nut BAE0112 Detail E (44 Total) Step 8 Attach the hammock to the Mom rope. Page 6 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 7 Button Head Bolt AAU0829 Handhold BAE0666 AAU0829 (16 Total) (8 Total) Frame AAU0829 Detail F Step 9 Attach the small handholds to the top and the side of the Mother frame. Page 7 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 8 (2 Total) BAE0664 (6 Total) Detail G Align the holes in the casting with those in the frame. Step 12 Attach the end cap assembly to the ends of the Father frame. Page 8 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 9 Important Note: Surface mount hardware is not supplied. Customer is responsible torque specifi cations. for concrete base and for providing surface mount hardware as specifi ed by a registered structural engineer for each specifi c project application. Page 9 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 10 Step 13: For areas complying with ASTM standard F1487 or the CSA Z-614, apply the age appropriate label to the component at eye level. Page 10 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 11 BOLT - 3/8"-16 x 4.50" BUTTON HEAD - SS For Customer Service, Call ALB0025 LABEL - AGE APPROPRIATE SHEET 800-233-8404 or 570-522-9800 OUTSIDE U.S. 1000 Buffalo Road • Lewisburg, PA 17837 www.playworldsystems.com Page 11 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 12 BOLT - 3/8"-16 x 4.50" BUTTON HEAD - SS ALB0025 LABEL - AGE APPROPRIATE SHEET For Customer Service, Call 800-233-8404 or 570-522-9800 OUTSIDE U.S. 1000 Buffalo Road • Lewisburg, PA 17837 www.playworldsystems.com Page 12 of 14 Model XX0702 and XX0702S ECN2699...
  • Page 13 If any damage is detected, barricade equipment to • Contact your sales representative or call Playworld prevent use until repair is completed. Contact your sales Systems’ Customer Service for a replacement part.
  • Page 14: Inspection Checklist

    Inspect surfacing to insure proper depth and distribution. High Inspector: Name __________________________________ Signature:_________________________________________ Date:___ /___ /___ (Please Print) MAINTENANCE SCHEDULE Item in Question Description of Problem Corrective Action Date Repairer: Name __________________________________ Signature:________________________________________ Date:___ /___ /___ (Please Print) Page 14 of 14 Model XX0702 and XX0702S ECN2699...
