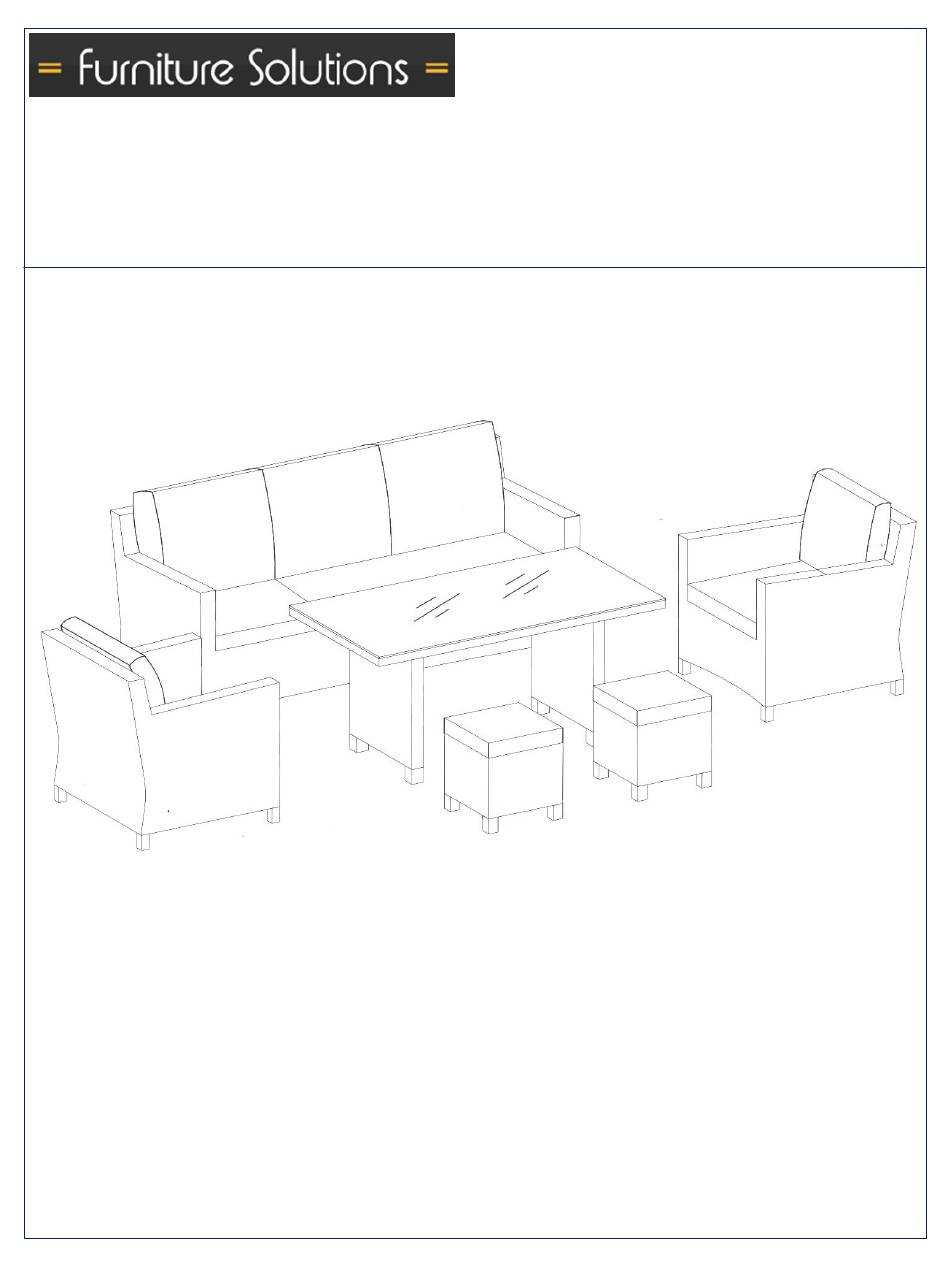

INSTRUCTION MANUAL
LIDO 6PC LOUNGE DINING
ITEM CODE: 18LIDLD.F
Imported by Furniture Solutions (Aust) Pty Ltd New South Wales, Australia.
For any assistance with assembly or for missing parts please contact:
Place of purchase or Furniture Solutions on below
Customer Service (Australia) Phone-1300 794 188
Email- customerservice@furnituresolutions.com.au
1
Advertisement
Table of Contents
Related Manuals for Furniture Solutions 18LIDLD.F
Summary of Contents for Furniture Solutions 18LIDLD.F
- Page 1 INSTRUCTION MANUAL LIDO 6PC LOUNGE DINING ITEM CODE: 18LIDLD.F Imported by Furniture Solutions (Aust) Pty Ltd New South Wales, Australia. For any assistance with assembly or for missing parts please contact: Place of purchase or Furniture Solutions on below Customer Service (Australia) Phone-1300 794 188...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST Glass Panel P.9097-3.GP Table Rim P.9097-3.R P.9097-3.L M6*35mm Bolt P.9097-3.HW M6 Washer P.9097-3.HW Cover Cap P.9097.HW Tool P.9097.HW... -
Page 4: Components List
COMPONENTS LIST Back Cushion 60*60*10cm P.1S9097-3.BC Seat Cushion 60*60*10cm P.1S9097-3.SC Frame 1540*880*860mm P.1S9097-3.F Back Cushion 60*60*10cm P.3S9097-3.BC Seat Cushion 60*60*10cm P.3S9097-3.SC Frame 1210*810*860mm P.3S9097-3.F Seat Cushion 400*400*8cm P.BS9097-3.SC Frame 900*450*320mm P.BS9097-3.F... -
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTION Assembly Dining Table-Fit Leg Please prepare work area as set out on page 2: As indicate in diagram below lay table rim [B] upside down. With the help of a second person take leg [c] aline holes at top of leg with threaded holes in rim and then by hand insert bolt [D] with washer [E] thru hole in leg and into threaded hole, turn bolt 2-3 times to ensure thread has gripped correctly. - Page 6 ASSEMBLY INSTRUCTION Assembly Dining Table-Fit Glass Please prepare work area as set out on page 2: With the help of a second person lift table frame into air and roll over until all feet are level with ground, then gently lower. Next again with help lift glass panel [A] horizontally and place as per diagram below.
-
Page 7: Care And Maintenance
CARE & MAINTENANCE Varieties of materials are used in construction of “Outdoor” furniture ranges. All will require some form of maintenance to extend the life of finishes and general appearance. Please see below instruction unique to your chosen product. Lido Range Construction; Table Tops: Tempered Glass Frame: Aluminium External Covering: Synthetic Wicker... - Page 8 CARE & MAINTENANCE Synthetic Wicker Fibre Information Synthetic Wicker fibre (commonly referred to as resin wicker) is made of polyethylene combined with colour & UV stabilizer. While the UV stabilizer adds to the life of the synthetic fibre, the effectiveness of stabilizer diminishes with age. Longevity of use cannot be judge as environmental conditions and are too varied to set a standard.
-
Page 9: Safety Warnings And Advice
SAFETY WARNINGS AND ADVICE Notices and Advice Please be advised that products are limited in design for residential use only and are not suitable for commercial use. Please be advised that materials used in your furniture are not impervious to neglect, acts of god, abuse, alcohol spills, improper use of chemicals such as bleach or any solvent based products. -
Page 10: Warranty Details
To make a warranty claim, customers can either contact the retailer where the purchase was made or Furniture Solutions on contact details below. Proof of purchase will be required before proceeding with any claim. In the case of product defects providing photos may be able to speed up processing of the claim.
