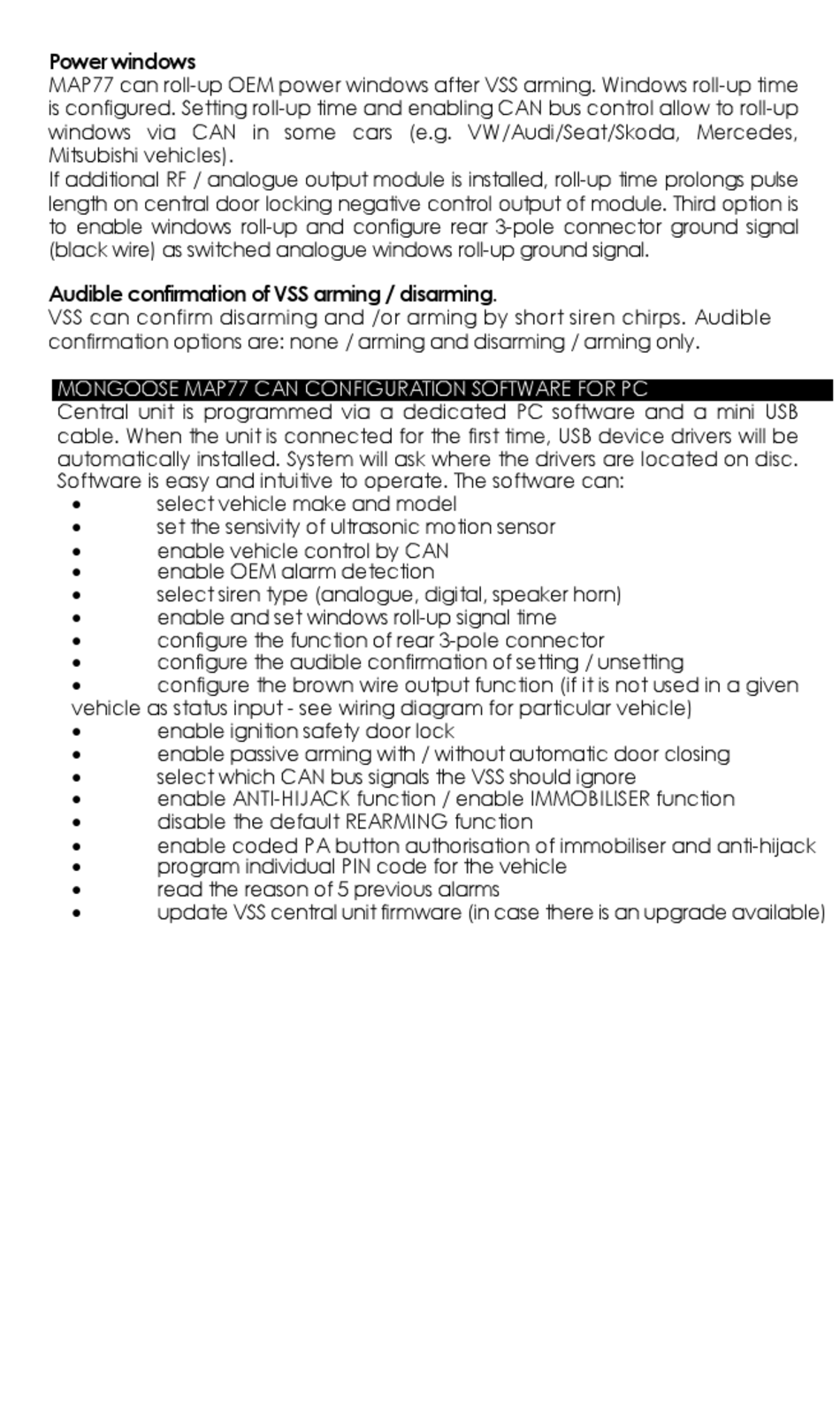

Mongoose MAP77 Installation Manual page 5

Power windows
MAP77 can roll-up OEM power windows after VSS arming. Windows roll-up time
is configured. Setting roll-up time and enabling CAN bus control allow to roll-up
windows via CAN in some cars (e.g. VW/Audi/Seat/Skoda, Mercedes,
Mitsubishi vehicles).
If additional RF / analogue output module is installed, roll-up time prolongs pulse
length on central door locking negative control output of module. Third option is
to enable windows roll-up and configure rear 3-pole connector ground signal
(black wire) as switched analogue windows roll-up ground signal.
Audible confirmation of VSS arming / disarming.
VSS can confirm disarming and /or arming by short siren chirps. Audible
confirmation options are: none / arming and disarming / arming only.
MONGOOSE MAP77 CAN CONFIGURATION SOFTWARE FOR PC
Central unit is programmed via a dedicated PC software and a mini USB
cable. When the unit is connected for the first time, USB device drivers will be
automatically installed. System will ask where the drivers are located on disc.
Software is easy and intuitive to operate. The software can:

select vehicle make and model

set the sensivity of ultrasonic motion sensor

enable vehicle control by CAN

enable OEM alarm detection
 select siren type (analogue, digital, speaker horn)

enable and set windows roll-up signal time

configure the function of rear 3-pole connector

configure the audible confirmation of setting / unsetting

configure the brown wire output function (if it is not used in a given
vehicle as status input - see wiring diagram for particular vehicle)

enable ignition safety door lock

enable passive arming with / without automatic door closing

select which CAN bus signals the VSS should ignore
 enable ANTI-HIJACK function / enable IMMOBILISER function

disable the default REARMING function

enable coded PA button authorisation of immobiliser and anti-hijack

program individual PIN code for the vehicle

read the reason of 5 previous alarms

update VSS central unit firmware (in case there is an upgrade available)
