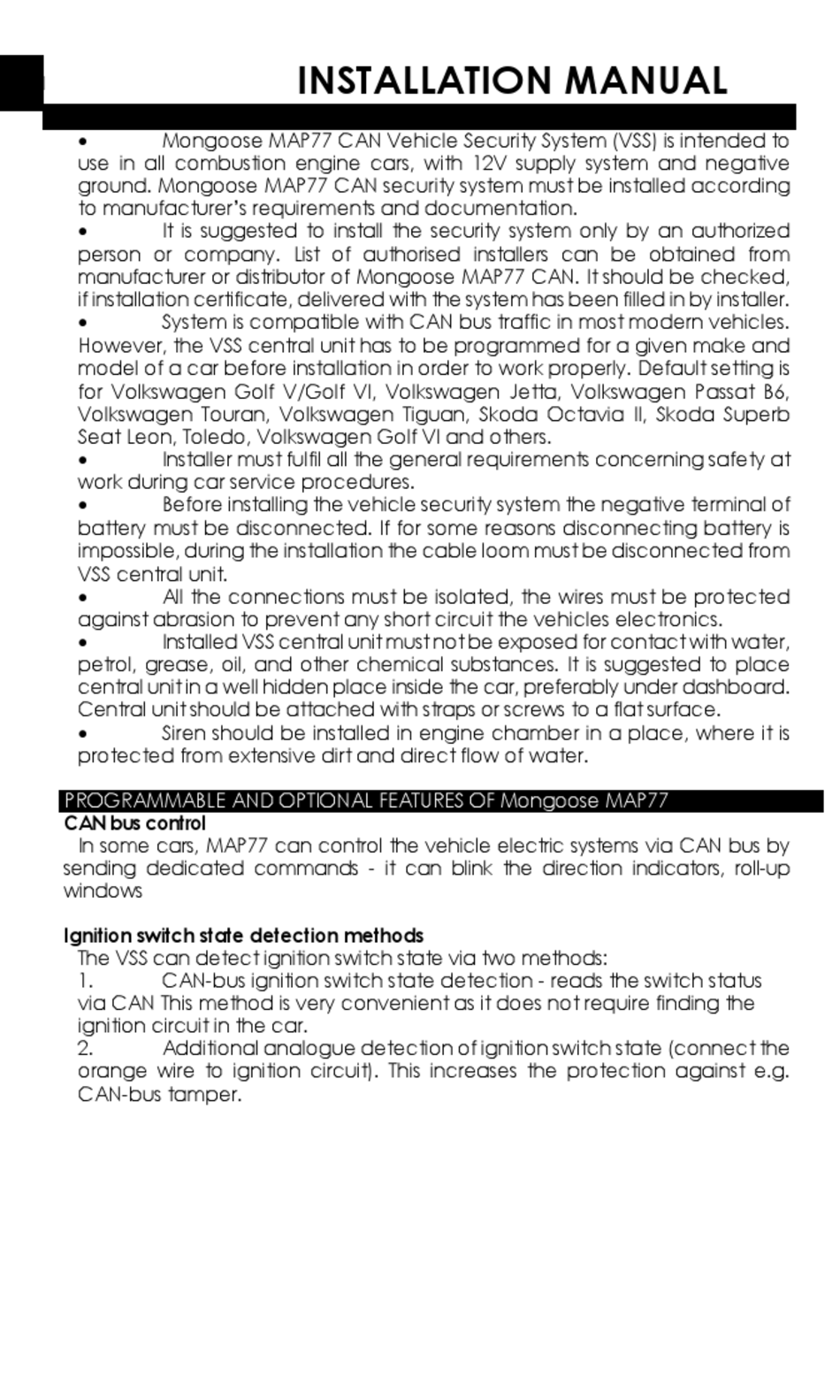

Mongoose MAP77 Installation Manual page 3

E N

Mongoose MAP77 CAN Vehicle Security System (VSS) is intended to
use in all combustion engine cars, with 12V supply system and negative
ground. Mongoose MAP77 CAN security system must be installed according
to manufacturer's requirements and documentation.

It is suggested to install the security system only by an authorized
person or company. List of authorised installers can be obtained from
manufacturer or distributor of Mongoose MAP77 CAN. It should be checked,
if installation certificate, delivered with the system has been filled in by installer.

System is compatible with CAN bus traffic in most modern vehicles.
However, the VSS central unit has to be programmed for a given make and
model of a car before installation in order to work properly. Default setting is
for Volkswagen Golf V/Golf VI, Volkswagen Jetta, Volkswagen Passat B6,
Volkswagen Touran, Volkswagen Tiguan, Skoda Octavia II, Skoda Superb
Seat Leon, Toledo, Volkswagen Golf VI and others.
 Installer must fulfil all the general requirements concerning safety at
work during car service procedures.

Before installing the vehicle security system the negative terminal of
battery must be disconnected. If for some reasons disconnecting battery is
impossible, during the installation the cable loom must be disconnected from
VSS central unit.

All the connections must be isolated, the wires must be protected
against abrasion to prevent any short circuit the vehicles electronics.

Installed VSS central unit must not be exposed for contact with water,
petrol, grease, oil, and other chemical substances. It is suggested to place
central unit in a well hidden place inside the car, preferably under dashboard.
Central unit should be attached with straps or screws to a flat surface.

Siren should be installed in engine chamber in a place, where it is
protected from extensive dirt and direct flow of water.
PROGRAMMABLE AND OPTIONAL FEATURES OF Mongoose MAP77
CAN bus control
In some cars, MAP77 can control the vehicle electric systems via CAN bus by
sending dedicated commands - it can blink the direction indicators, roll-up
windows
Ignition switch state detection methods
The VSS can detect ignition switch state via two methods:
1. CAN-bus ignition switch state detection - reads the switch status
via CAN This method is very convenient as it does not require finding the
ignition circuit in the car.
2. Additional analogue detection of ignition switch state (connect the
orange wire to ignition circuit). This increases the protection against e.g.
CAN-bus tamper.
