Assembly Instructions
Thank you for
purchasing a
Birlea product.
Are you happy with your purchase?
Yes:
That's great, we would love to hear more from you. Please leave us a review on
our social media channels or Trustpilot. Your feedback will be greatly appreciated.
No:
If for any reason there is something missing, indifferent or incorrect with
your order, please contact the retailer you purchased the item from. We will
work with the retailer to resolve your issue as quickly as possible.
For a chance to win a Love 2 Shop voucher
simply post a picture of your new product
on your preferred social channels tagging
Birlea Furniture and using the hashtag
#ShareYourStyle and #Birlea. One winner
will be selected at random each month.
To view our full terms and conditions please visit our website. www.birlea.com
www.birlea.com
Advertisement

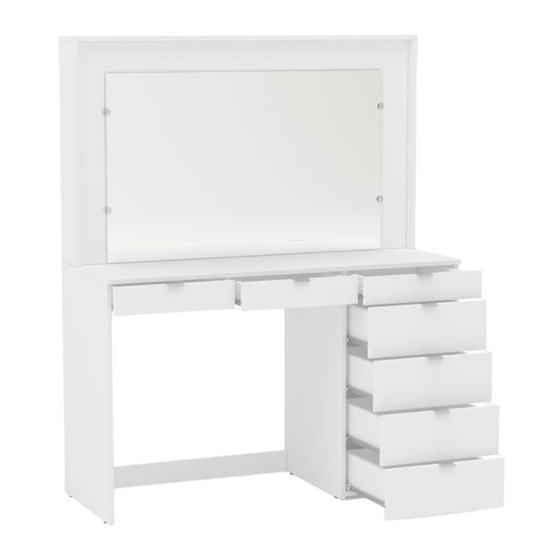

Related Manuals for Birlea Chloe CHL7DTMWHT
Summary of Contents for Birlea Chloe CHL7DTMWHT
- Page 1 #ShareYourStyle and #Birlea. One winner Birlea product. will be selected at random each month. To view our full terms and conditions please visit our website. www.birlea.com Are you happy with your purchase? Yes: That’s great, we would love to hear more from you. Please leave us a review on our social media channels or Trustpilot.
-
Page 2: Health And Safety
Periodically check all screws & fixings to ensure they are secure. DO NOT push the item as this will damage the base. Always lift the item with two people to reposition. Keep any sharp objects away from the item. Recycle www.birlea.com Page Rev 06... - Page 3 Vendor: S000139 Parts List Part Descripion Top Base Upper Left Side Upper Right Side Lower Left Side Lower Right Side Mirrored Panel Drawers Tray Lower Plinth Lower Tray Front Lower Tray Rear Larger Drawer Front Left Side of Drawer Smaller Right Side of Drawer Smaller Rear of Drawer Smaller Rear of Drawer Larger...
- Page 4 Vendor: S000139 Hardware List Part Descripion 5,0 x 60 mm Screw Glue Smalll Plastic foot Bushing 4,0 x 40 mm Screw 8 x 30 mm Wooden Dowel Mirror Support Strap 8 x 50 mm Wooden Dowel Structural Screw Allen Key Structural Screw Cover Simple Minifix Screw Cam Lock...
- Page 5 Vendor: S000139 Step 1: Insert hardware part E using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach the hardware part J to the top (02) using the a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 6 Step 4: Attach hardware part E using a small mallet (not provided) and to the hardware part A1. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Insert hardware part E using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 7 Vendor: S000139 Step 7: Insert hardware parts E and F using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Insert hardware part E using small mallet (not provided). Then attach the hardware part VB using the hardware part P5 and a screwdriver (not provided).
- Page 8 Vendor: S000139 Step 9: Attach the hardware part J to the drawers front (17 and 30) using the a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 10: Attach the hardware part E to the smaller division (28) using a small mallet (not provided) and attach the hardware part VB using the hardware part R and a screwdriver (not provided).
- Page 9 Vendor: S000139 Step 11: Attach the hardware part E to the larger division (25) using a small mallet (not provided) and attach the hardware part VA using the hardware parts R, P5 and a screwdriver (not provided). Then rotate the part (28) and attach the hardware part VB using the hardware part R and a screwdriver (not provided).
- Page 10 Vendor: S000139 Step 13: Attach the upper left side (05) and the upper right side (06) to the mirrored panel (11) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 14: Join the top base (01) to the assembled section using hardware part G, H and I.
- Page 11 Vendor: S000139 Step 15: Join the top (02) to the assembled section using hardware part O and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 16: Join the smaller division (28) to the assembled section using hardware part L and a screwdriver (not provided).
- Page 12 Vendor: S000139 Step 17: Attach the lower left side (07) to the drawers tray (12) and lower plinth (13) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 18: Attach the larger division (25) to the drawers tray (12) and lower plinth (13) using hardware part G, H and I.
- Page 13 Vendor: S000139 Step 19: Insert the lower tray front (14) and lower tray rear (15) to the larger division (25) using hardware part G, H and I. Then attach the lower right side (10) to the lower tray front (14) and lower tray rear (15) using hardware part G, H and I.
- Page 14 Vendor: S000139 Step 21: Join the top (02) to the lower left side (07), larger division (25) and lower right side (10) using hardware part L and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 22: Insert hardware part D to the drawers tray (12) using a screwdriver (not provided).
- Page 15 Vendor: S000139 Step 23: Attach the backboard (29) to the assembled section using hardware part N using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 24: To secure the item to the wall use hardware parts A, B3 and E9 using a drilling machine (not provided) and a screwdriver (not provided).
- Page 16 Vendor: S000139 Step 25: Attach the left side of drawer larger (78) and right side of drawer larger (79) to the rear of drawer larger (21) and bottom of drawer (22) using hardware part O and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 17 Vendor: S000139 Step 27: Attach the handle S2 to the drawer front (17) using hardware part P5 and a screwdriver (not provided) . DO NOT use any power tools as this may damage the frame and will invalidate any claim. Marking Step 28: Attach the hardware part VC and VD to the left side of drawer larger (78) and right side of drawer...
- Page 18 Vendor: S000139 Step 29: Attach the left side of drawer smaller (18) and right side of drawer smaller (19) to the rear of drawer smaller (20) and bottom of drawer (22) using hardware part O and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 19 Vendor: S000139 Step 29: Attach the left side of drawer smaller (18) and right side of drawer smaller (19) to the rear of drawer smaller (20) and bottom of drawer (22) using hardware part O and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 20 Vendor: S000139 Step 31: Attach the handle S2 to the drawer front (30) using hardware part P5 and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Marking Step 32: Attach the hardware part VC and VD to the left side of drawer smaller (18) and right side of drawer smaller (19) using the hardware part P5 and a screwdriver (not provided).
- Page 21 If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on Instagram.
