Airetool ATP III Instruction Manual page 8

PL19-6000EN
05/15/2015
A. Boot Sequence:
Firmware 5.5 and earlier: When the pump is
connected to electrical power the LCD screen will show:
"FIRMWARE x.x" for 2 seconds.
Firmware 5.6 and later: When the pump is connected to
electrical power the LCD screen will show: "FIRMWARE
x.x" for 1 second, then "Model xx" for 0.5 seconds, and
then "MOTOR UN/1P/3P" for 0.5 seconds.
This is setup information about your pump that may
be needed for service. The boot sequence is finished
successfully when the text display on the LCD screen
shows "OK" (sequence takes approximately 2 seconds).
The micro-controller will automatically recognize the
optional pressure transducer built into the pump. The
reading after the boot process is "OK" in the text display
and the current pump pressure on the numeric display.
B. LCD Operational Buttons:
The control board is equipped with four button switches,
from left to right; On/Off, Menu, Down Arrow, Up Arrow,
see Figure 7.
• The On/Off button toggles the motor OFF. The

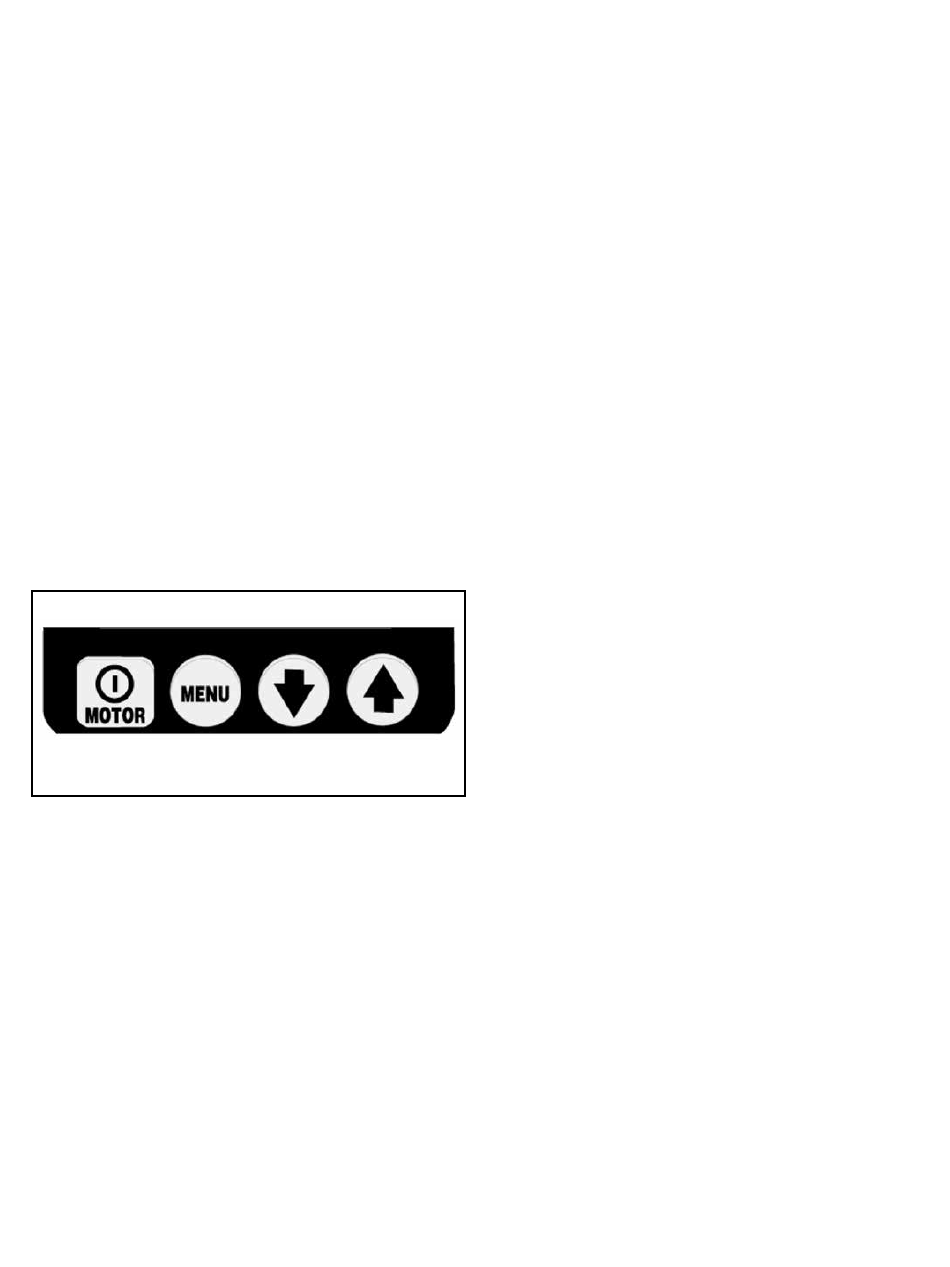

Figure 7: Operational Buttons
On/Off Menu
motor OFF function is available on this button even
if the pump is NOT in the local mode but is operated
by using the pendant control.
The Menu button enables the operator to step from
•
normal operational mode into menus. With repeated
pressing the operator steps through the various
menus. Pressing the Menu button also saves any
changes made. To return to the normal operational
mode, press and hold the Menu button for two
seconds or don't push any button for 60 seconds.
• The Down Arrow and Up Arrow buttons serve
two purposes. When the display shows one of the
menus, the Down Arrow and Up Arrow buttons are
used to step through the menu's options. When the
pump is placed in Local Mode the UP Arrow button
switches the B and A electric solenoids (the pendant
is non-operational in local mode).
C. Menus Available:
Airetool
General Instructions
Down Up
Arrow Arrow
Page 8
®
The software provides the operator with the following
Menus:
• Automode: Set tube puller Auto Cycle mode ON
or OFF. With Automode OFF, the menu Set Pres
(Firmware 5.5 and earlier) or HI PRESS (Firmware
5.6 and later) will not be available and the Set Pres
or HI PRESS pressure value has no effect on the
pump.
• Set Pres or HI PRESS: (Only available with
Automode ON) Set the Advance port pressure
value the tub puller will Auto Cycle at. Changes in
increments of 50 psi (3.5 bar), maximum pressure
value is 10,000 psi (700 bar). NOTE: Firmware 5.5
and earlier - the hidden calibration menu for the
digital gauge is accessed from this menu.
• Units: Set the pressure units to PSI / BAR / MPa,
with psi being the default setting. NOTE: Firmware
5.6 and later - the hidden calibration menu for
the digital gauge is accessed from this menu.
• Motor: Display the motor hour meter and on/off
cycle counter (can not be reset).
• Low Volt: Display the low voltage hour-meter (can
not be reset).
• Advance: Display the Advance solenoid hour meter
and on/off cycle counter (can not be reset).
• Retract: Display the Retract solenoid hour meter
and on/off cycle counter (can not be reset).
• Local: Set the pump local mode on/off
Language: Set the language of the display to
•
English / Spanish / French / Italian / German /
Portuguese, with English being the default setting.
• Diagnose: Display to show input signals from the
pendant control and other electrical accessories.
Fault Conditions:
Any fault will shut down and prevent the pump from
starting:
A. Clearing a Fault Condition from the LCD:
After the fault causing the problem has been corrected,
clear the fault message from the LCD by disconnecting
electrical power from the pump, wait until all characters
clear the LCD (approximately 10 seconds), then
reconnect the electrical power.
