Installation:

Position the pump to ensure that air flow around the
motor and pump is not obstructed. Keep the motor clean
to ensure maximum cooling during operation.

Fluid Level:

Check the oil level of the pump prior to start-up. If
necessary add oil by removing the SAE #10 plug from
the cover plate, Figure 3.

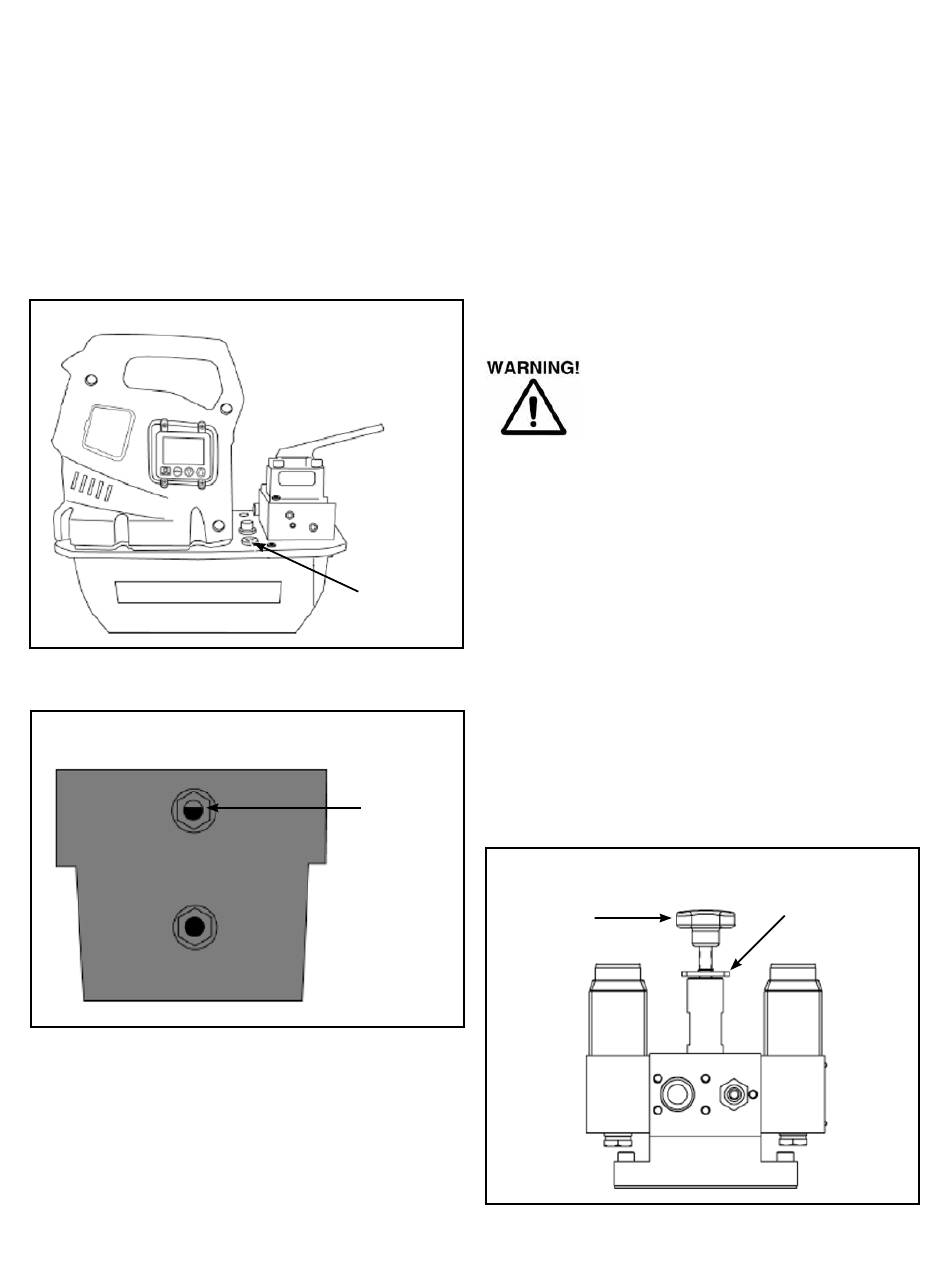

Figure 3: Oil Fill Plug
The reservoir is full when the oil level reaches the top of
the sight glass, Figure 4.
Figure 4: Oil Full Level
IMPORTANT: Add oil only when all system components
are fully retracted, or the system will contain more oil
than the reservoir can hold.

Operation:

Check the oil level of the pump and add oil if necessary,
as shown in Figures 3 and 4.
Airetool
®
General Instructions
Connect power to the unit and wait until "OK" is displayed
on the LCD before pressing any button on the shroud or
pendent (if equipped).
NOTE: During the boot sequence, the micro processor
identifies any button operation as a potential malfunction
and prevents the motor from starting. You can reset by
disconnecting the power for 10 seconds.
Start the motor and operate the tube puller by pressing
and releasing the ON/OFF button. The LCD will show
the pressure in the retract circuit (B-port bypass),
approximately 2500-2800 psi (173-193 bar).
Shut off the motor by pressing the ON/OFF button. If
no buttons are pressed within a continuous 20 second
period, the pump's built in timer will automatically shut
the motor off.
NOTE: When the motor is turned off, as the motor stops
turning, the valves will automatically cycle to release all
SAE #10
pressure in both the advance and retract hoses.
Plug
NOTE: Units equipped with heat exchangers allow the
timer to automatically shut off the pump. During any idle
period, the pump is circulating 90% of its oil flow through
the heat exchanger to reduce oil temperature.
Setting Pump Pressure:
This pump model provides the operator with two methods
Reservoir
of limiting the Advance (A port) pressure to the tube
Full Level
puller: "User Adjustable Relief Valve" and "Auto Cycle".
Figure 5: Relief Valve
Control
Handle
Page 6
As the motor starts, the valve shifts
automatically, retracting the tube puller.
Verify the tube puller is positioned to avoid
personal injury or equipment damage
before starting motor.
Locking
Nut
