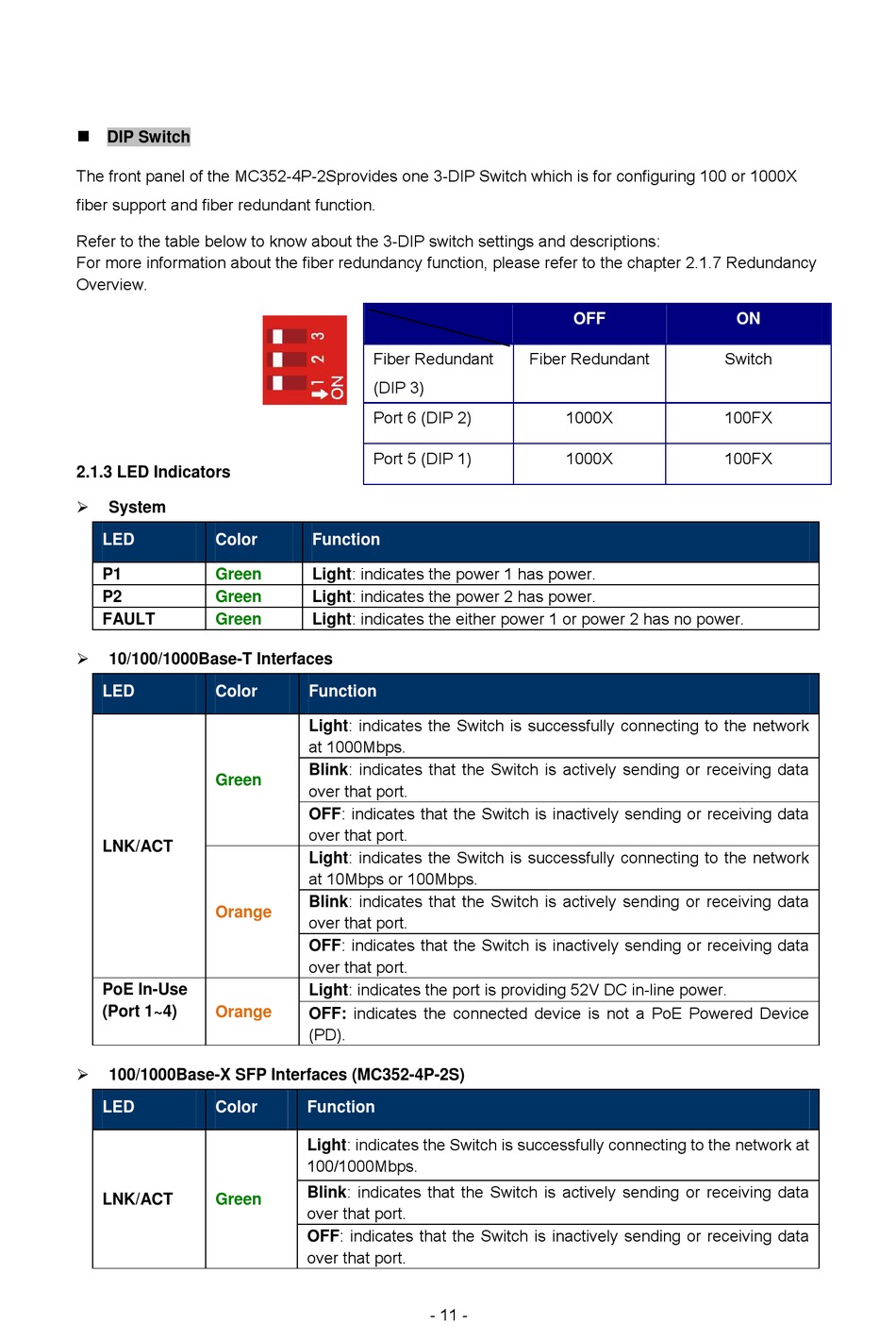

DIP Switch
The front panel of the MC352-4P-2Sprovides one 3-DIP Switch which is for configuring 100 or 1000X
fiber support and fiber redundant function.
Refer to the table below to know about the 3-DIP switch settings and descriptions:
For more information about the fiber redundancy function, please refer to the chapter 2.1.7 Redundancy
Overview.

2.1.3 LED Indicators


System
LED Color
P1 Green
P2 Green
FAULT Green

10/100/1000Base-T Interfaces
LED Color
Green
LNK/ACT
Orange
PoE In-Use
(Port 1~4)
Orange

100/1000Base-X SFP Interfaces (MC352-4P-2S)
LED Color
LNK/ACT Green
Fiber Redundant
(DIP 3)
Port 6 (DIP 2)
Port 5 (DIP 1)
Function
Light: indicates the power 1 has power.
Light: indicates the power 2 has power.
Light: indicates the either power 1 or power 2 has no power.
Function
Light: indicates the Switch is successfully connecting to the network
at 1000Mbps.
Blink: indicates that the Switch is actively sending or receiving data
over that port.
OFF: indicates that the Switch is inactively sending or receiving data
over that port.
Light: indicates the Switch is successfully connecting to the network
at 10Mbps or 100Mbps.
Blink: indicates that the Switch is actively sending or receiving data
over that port.
OFF: indicates that the Switch is inactively sending or receiving data
over that port.
Light: indicates the port is providing 52V DC in-line power.
OFF: indicates the connected device is not a PoE Powered Device
(PD).
Function
Light: indicates the Switch is successfully connecting to the network at
100/1000Mbps.
Blink: indicates that the Switch is actively sending or receiving data
over that port.
OFF: indicates that the Switch is inactively sending or receiving data
over that port.
- 11 -
OFF
Fiber Redundant
1000X
1000X
ON
Switch
100FX
100FX
