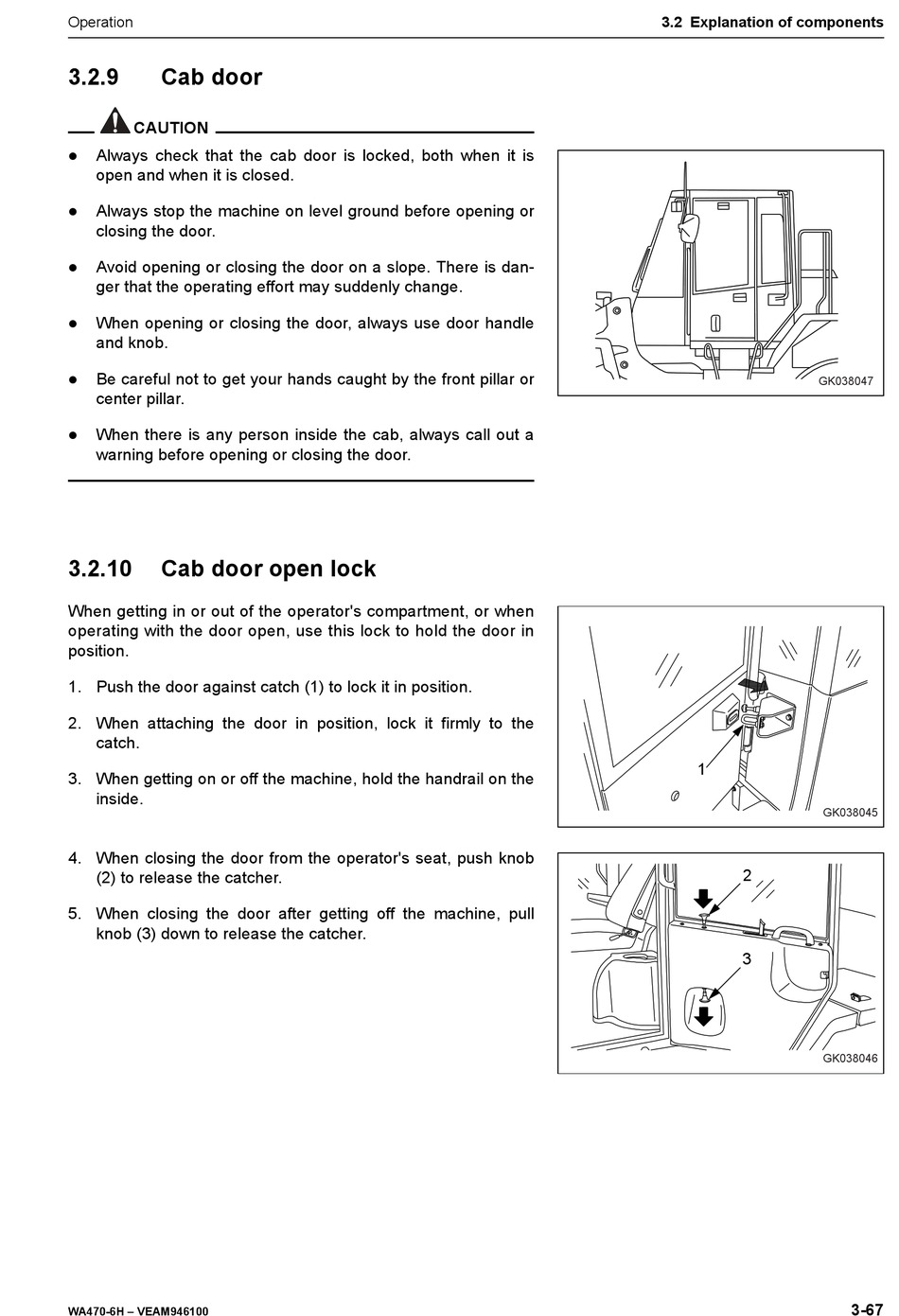

Cab Door; Cab Door Open Lock - Komatsu WA470-6 2006 Operation & Maintenance Manual

Operation
3.2.9

Cab door

CAUTION
Always check that the cab door is locked, both when it is
!
open and when it is closed.
Always stop the machine on level ground before opening or
!
closing the door.
Avoid opening or closing the door on a slope. There is dan-
!
ger that the operating effort may suddenly change.
When opening or closing the door, always use door handle
!
and knob.
Be careful not to get your hands caught by the front pillar or
!
center pillar.
When there is any person inside the cab, always call out a
!
warning before opening or closing the door.
3.2.10

Cab door open lock

When getting in or out of the operator's compartment, or when
operating with the door open, use this lock to hold the door in
position.
1. Push the door against catch (1) to lock it in position.
2. When attaching the door in position, lock it firmly to the
catch.
3. When getting on or off the machine, hold the handrail on the
inside.
4. When closing the door from the operator's seat, push knob
(2) to release the catcher.
5. When closing the door after getting off the machine, pull
knob (3) down to release the catcher.
WA470-6H – VEAM946100
3.2 Explanation of components
GK038047
1
GK038045
2
3
GK038046
3-67
