External Control Setup

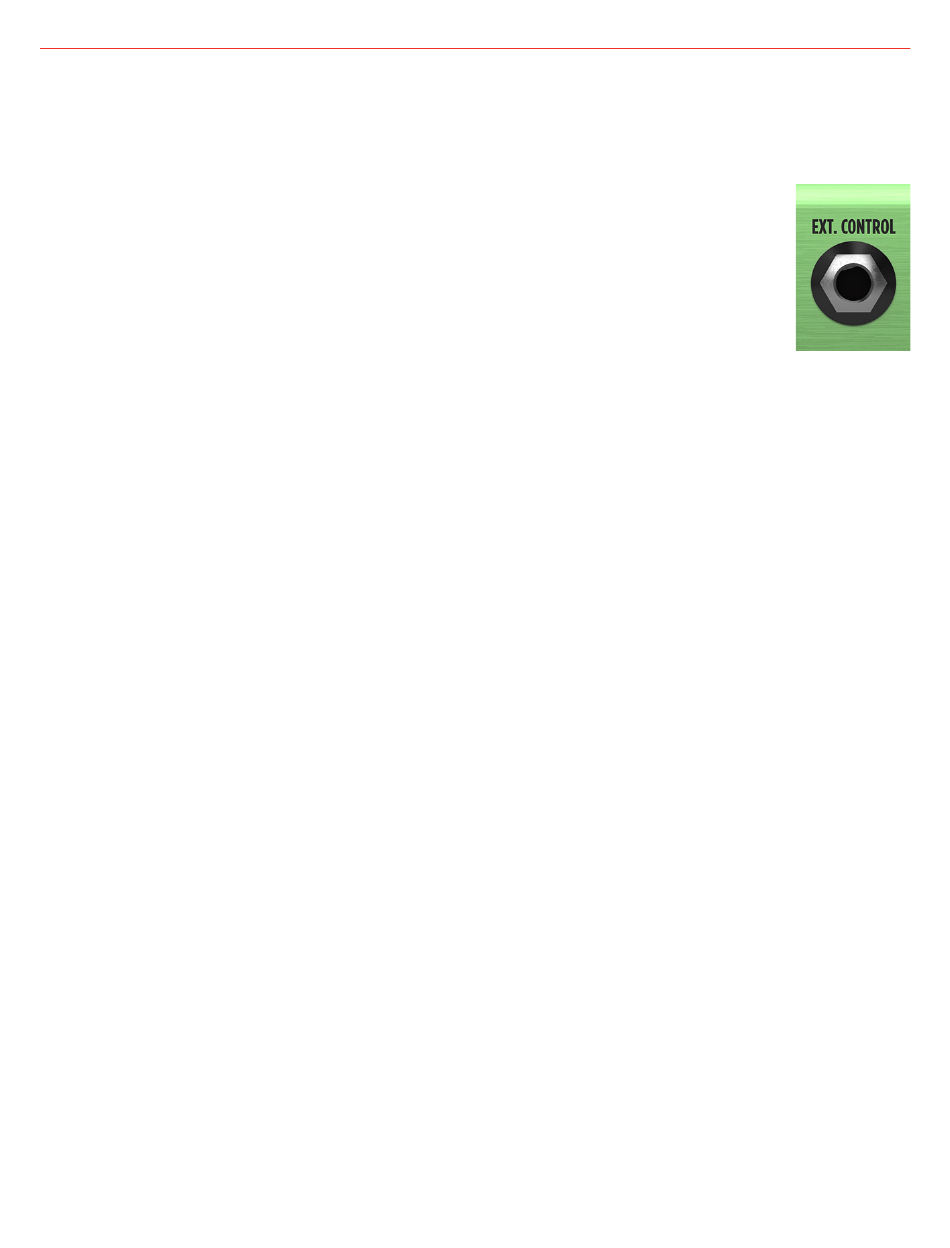

The EXT. CONTROL jack can be connected to various types of external pedals:
• Expression pedal
• Single switch
• Double switch
Expression pedal & single switch (creating macros)
An expression pedal and a single switch pedal can be assigned to a parameter or to various parameters to
create macros. A macro is an ensemble of parameters, which can be modulated simultaneously via the external
control.
To setup a macro on the selected preset using an expression pedal or a single switch pedal, do as follows:
1. Hook it up to the EXT. CONTROL.
2. Hold the PARAMETER encoder and choose GLOBAL SETUP .
3. Select EXT. CTRL and choose one of the following:
a. TRS EXP PEDAL: if you are using a TRS type expression pedal.
b. RTS EXP PEDAL: if you are using a RTS type expression pedal.
c. N.O. SWITCH: if you are using a normally open single switch pedal.
d. N.C. SWITCH: if you are using a normally close single switch pedal.
4. Press the MODEL knob to go back and choose PRESET SETUP .
5. In the PRESET SETUP menu, select ON from the EXT. CTRL option.
6. Come back to the PRESET SETUP menu, select EXT. LEARN and choose LEARN.
7. While LEARN A is being displayed, position the parameters of the preset as you wish they would be when
the external control is in position A, then press the PRESET encoder when the A setup is done.
8. While LEARN B is being displayed, position the parameters of the preset as you wish they would be when
the external control is in position B, then press the PRESET encoder when the B setup is done.
9. Once the SAVE button (PRESET encoder) is pressed, the pedal returns to its default behavior and the
macro is assigned to the external control.
N.B.
In a single switch pedal position A refers to the off status. In an expression pedal position A refers to the heel
status.
In a single switch pedal position B refers to the on status. In an expression pedal position B refers to the tip
status.
The only difference between a single switch or an expression pedal is that with the first one changing from
position A to position B is an instant transition (pressing the footswitch), while the second one is a smooth
transition (moving the expression pedal).
